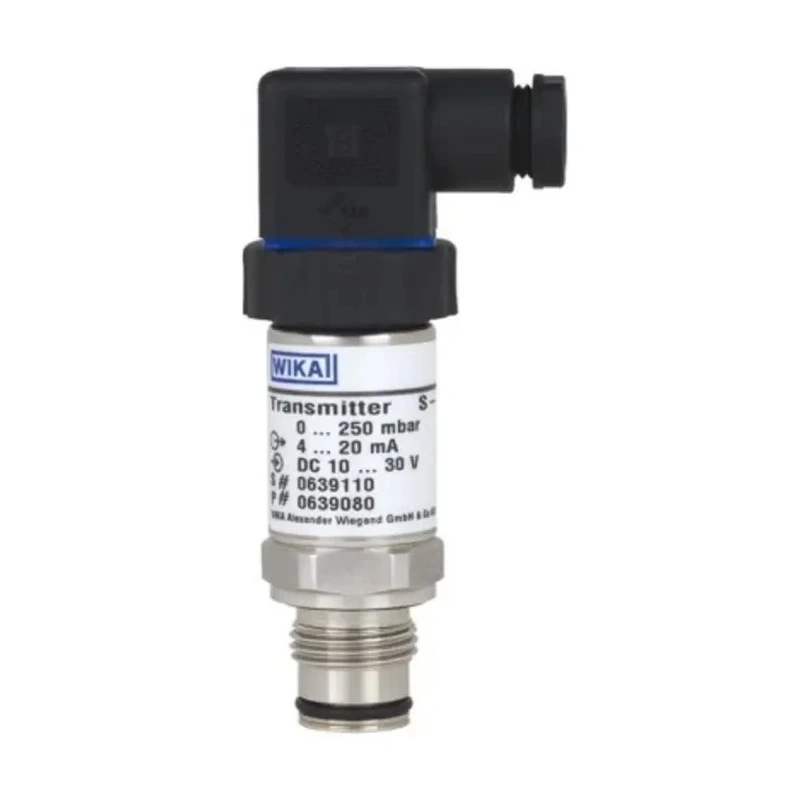

WIKA S-11 Series Pressure Sensor Current Output 0 to 1.6 bar Stainless Steel Housing IP65 9021302

WIKA 9021302 S-11 Series Pressure Sensor is a high-quality industrial sensor offering precise pressure measurement from 0 to 1.6 bar with an accuracy of ±0.5%. It features a rugged stainless steel housing and is designed for durability and long-term reliability in challenging environments.

This sensor provides a current output signal suitable for integration in industrial automation and control systems. The IP65-rated enclosure protects against dust ingress and water jets, making it applicable in food and beverage industries, dosing technology, filling machinery, and level measurement tasks.

Operating temperature range extends from -30°C to 100°C, enabling stable performance across diverse conditions. Its 4-pin terminal connection ensures secure electrical interfacing, while the flush process connection allows vacuum-tight installations with minimal media accumulation.

The sensor is compatible with a wide variety of media, including adhesive, crystallising substances, particle-laden fluids, viscous, paste-like, and contaminated media, expanding its utility in industrial processes.

Compliant with DIN EN 175301-803 and WIKA standards, this model supports supply voltages ranging from 10V to 30V DC, ensuring versatile applicability. Constructed with durable stainless steel housing for industrial environments.

Rated IP65 for protection against dust and water jets. Operates reliably within a temperature range of -30°C to 100°C. Equipped with 4-pin terminal for secure electrical connections. Compatible with adhesive, crystallising, particle-laden, paste-like, viscous, and contaminated media.

Suitable for general industrial, food and beverage, dosing, and level measurement applications. Flush process connection enables vacuum-tight installations. Standard compliant with DIN EN 175301-803 and WIKA standards. Designed for use with supply voltage between 10V and 30V DC.

Available with large stocks for short delivery items. Ideal for industrial automation, manufacturing, and process control applications. Explore more Pressure Sensors on EnvMart to find solutions matching your specific requirements.
