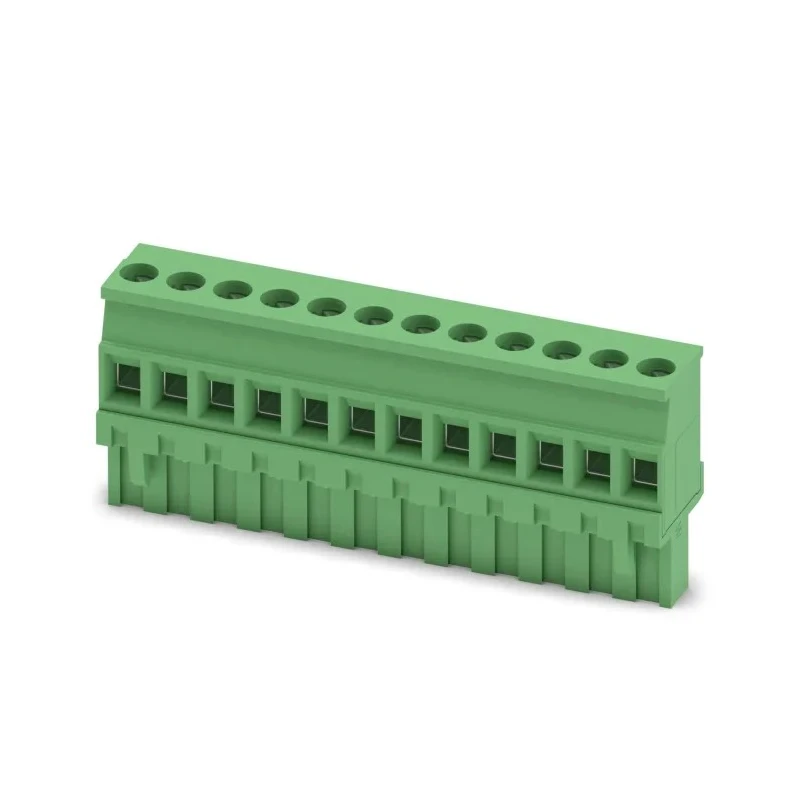

Phoenix Contact MVSTBR 2.5/12-ST-5.08 Series Pluggable Terminal Block, 12-Contact, 5.08 mm Pitch, 1 Row, Screw 1792346
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 630V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 12A |
| Length | 12.5mm |
| Model | 1792346 |
| Depth | 26mm |
| Width | 60.96mm |
| Housing Material | Nylon |
| Series | MVSTBR 2.5/12-ST-5.08 |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 12 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 24AWG |
| Wire Connection Method | Screw |
Key Features
- Features 12 contacts for multiple simultaneous electrical connections.
- Screw termination ensures secure and reliable wire connections.
- Compact 5.08 mm pitch spacing for efficient PCB layouts.
- Nylon housing delivers durability and resistance to wear and environmental effects.
- Supports wire cross-section from 0.2 to 2.5 mm² and AWG 12 to 24.
- Rated for 12A current and 630V voltage applications.
- Single-row configuration with a straight orientation for versatile installation.
- Suitable for use in automation, control systems, and power distribution.
Product Description
Phoenix Contact 1792346 is a high-quality MVSTBR 2.5/12-ST-5.08 series pluggable terminal block engineered for dependable electrical connections in industrial and automation environments. With 12 contacts spaced at 5.08 mm pitch, this component supports reliable signal and power transmission through a screw termination method that ensures secure wire fixation.
The terminal block features a durable nylon housing providing mechanical stability and wear resistance, suitable for intensive use in control cabinets and electrical panels. Its compatibility with wire sizes ranging from 0.2 mm² to 2.5 mm² (12 AWG to 24 AWG) enables versatility across multiple conductor types, including solid and stranded wires.
This product offers a current rating of up to 12 amperes and voltage support up to 630 volts, making it suitable for various industrial electrical tasks including power distribution and signal management. The single-row, straight orientation layout facilitates clean and organized installations.
Being RoHS compliant, this terminal block meets environmental standards, promoting safe usage. Installation requires a slotted screwdriver with recommended torque between 0.5 and 0.6 Nm to ensure optimal contact pressure without damage.
12 contacts provide multiple connection points for efficient wiring. Screw termination method secures wires firmly for stable electrical connections. 5.08 mm pitch allows compact and standardized connector spacing. Nylon housing ensures durability and temperature resilience from -40 to 100 degrees Celsius.
Supports conductor sizes from 0.2 to 2.5 mm² and 12 AWG to 24 AWG. Operating voltage up to 630 volts and current up to 12 amperes. Single-row and straight orientation design for ease of use. Suitable for industrial, automation, and control panel applications.
RoHS compliant for environmental safety. Designed and manufactured in Germany ensuring high quality standards.
For detailed PCB and mechanical design integration, compatible 3D models and technical documents are available. This product is ideal for engineers and technicians seeking reliable pluggable terminal blocks for industrial electronic connections.
Explore more components in the Pluggable Terminal Blocks category and find compatible products from Phoenix Contact for your system design and installation requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of up to 12 amperes and supports a maximum voltage of 630 volts.
The contacts are spaced at a pitch of 5.08 mm, allowing for compact and standardized connector spacing.
It supports wire sizes ranging from 0.2 mm² to 2.5 mm² and AWG sizes from 12 to 24.
The terminal block utilizes a screw connection method, ensuring secure and reliable wire fixation.
The dimensions are 60.96 mm in width, 26 mm in depth, and 12.5 mm in length.
The housing is made of nylon, providing durability and resistance to wear and environmental effects.
This model features 12 contacts, allowing for multiple simultaneous electrical connections.
Yes, this terminal block is RoHS compliant, meeting environmental safety standards.
Installation requires a slotted screwdriver with a recommended torque between 0.5 and 0.6 Nm to ensure optimal contact pressure.
It is designed and manufactured in Germany, ensuring adherence to high quality standards.
This model is suitable for use in automation, control systems, and power distribution applications.
