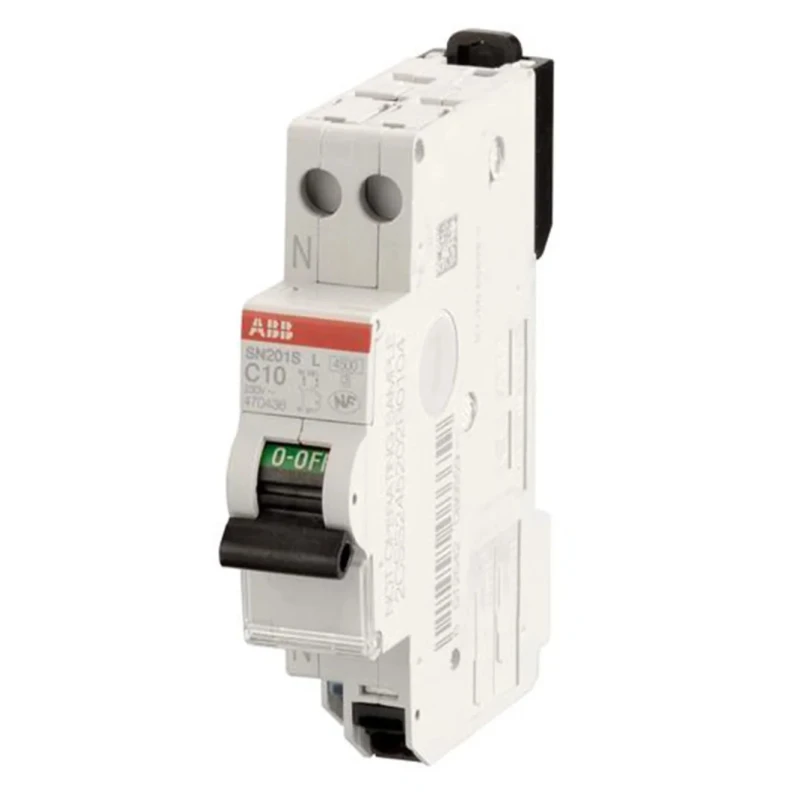

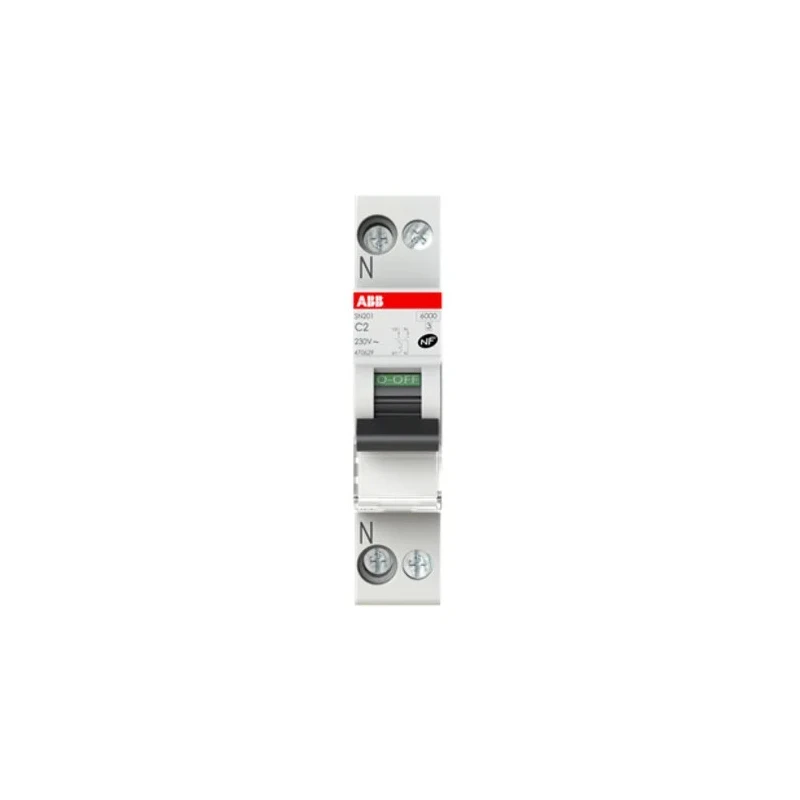

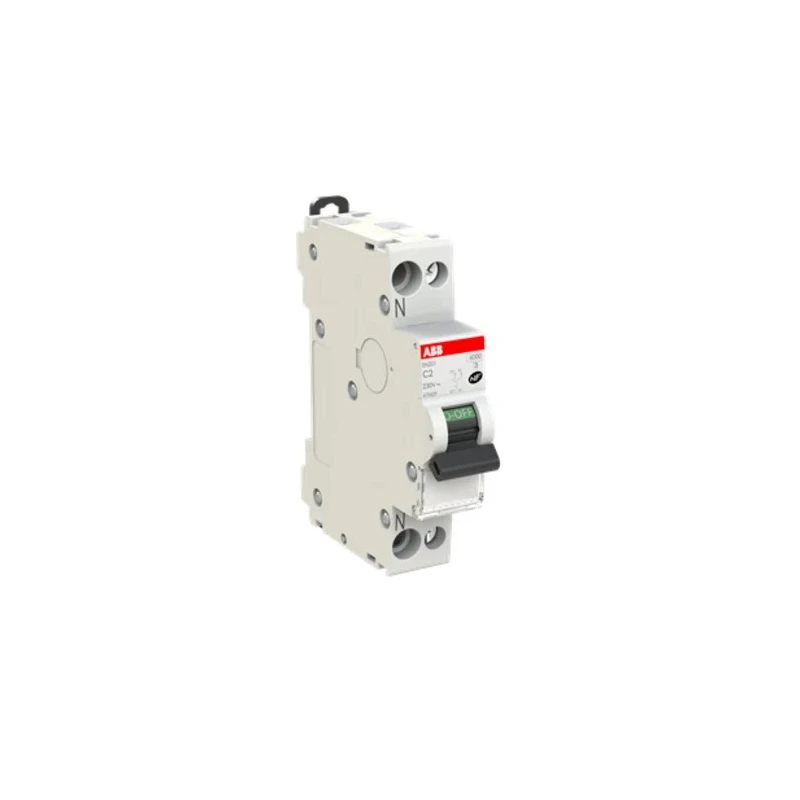

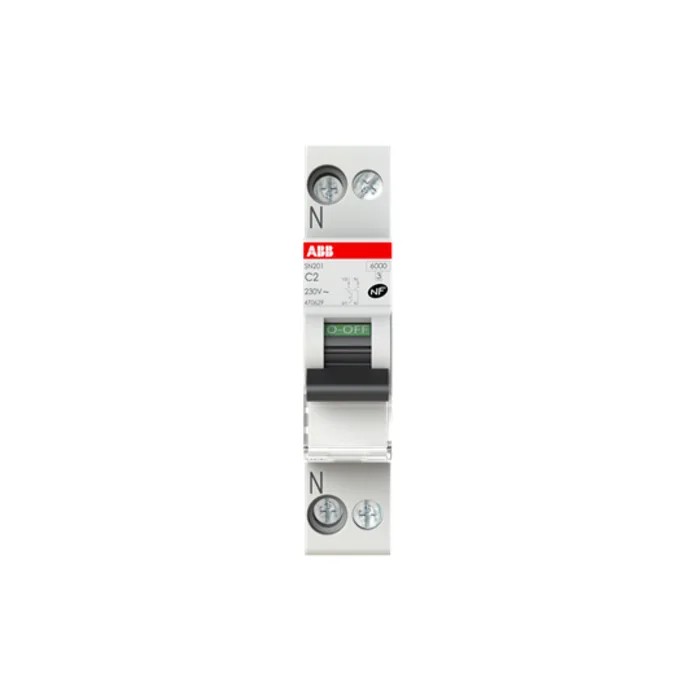

ABB Miniature Circuit Breaker 1-Pole 2A Type C 230V AC 6kA Breaking Capacity SN201

ABB SN201 Miniature Circuit Breaker model SN201 is a robust single-pole device rated at 2 amperes with a Type C tripping characteristic and 230V AC voltage rating. It is engineered to provide reliable protection for electrical circuits by quickly disconnecting in events of overload or short circuits.

Featuring a high breaking capacity of 6 kiloamperes, this MCB can safely interrupt short-circuit currents, making it suitable for residential, commercial, and light industrial applications. The compact dimensions (85mm height, 85mm depth, 18mm width) and DIN rail mounting capability facilitate easy integration into existing electrical panels.

Designed for durability, the SN201 series offers an impressive mechanical endurance of 20,000 operating cycles and performs reliably in ambient temperatures ranging from -25°C to 55°C. The device includes a built-in contact position indicator which simplifies visual confirmation of the ON/OFF state during maintenance or troubleshooting.

This miniature circuit breaker is resistant to shock and vibrations, minimizing false trips and ensuring continuous operation in demanding industrial environments. It complies with IEC/EN 60898-1 standards, assuring users of its conformity to international safety and performance benchmarks.

Rated voltage of 230V AC suitable for domestic and commercial applications. Type C tripping characteristic provides protection against moderate surges. Breaking capacity of 6 kA ensures high short-circuit withstand capability.

Mechanical endurance rated for 20,000 cycles enhancing operational reliability. Compact DIN rail mount design allows easy installation and flexible positioning. Ambient operating temperature range of -25°C to +55°C for versatile environmental use.

Integrated toggle switch with contact position indicator for quick status checking. Shock and vibration resistant to prevent false tripping in demanding environments. Compliant with IEC/EN 60898-1 safety standards ensuring global quality compliance.

Applications include power stations, manufacturing industries, HVAC systems, and aerospace engineering. The device can be mounted on DIN rails in any position, providing installation flexibility to suit different circuit requirements.
