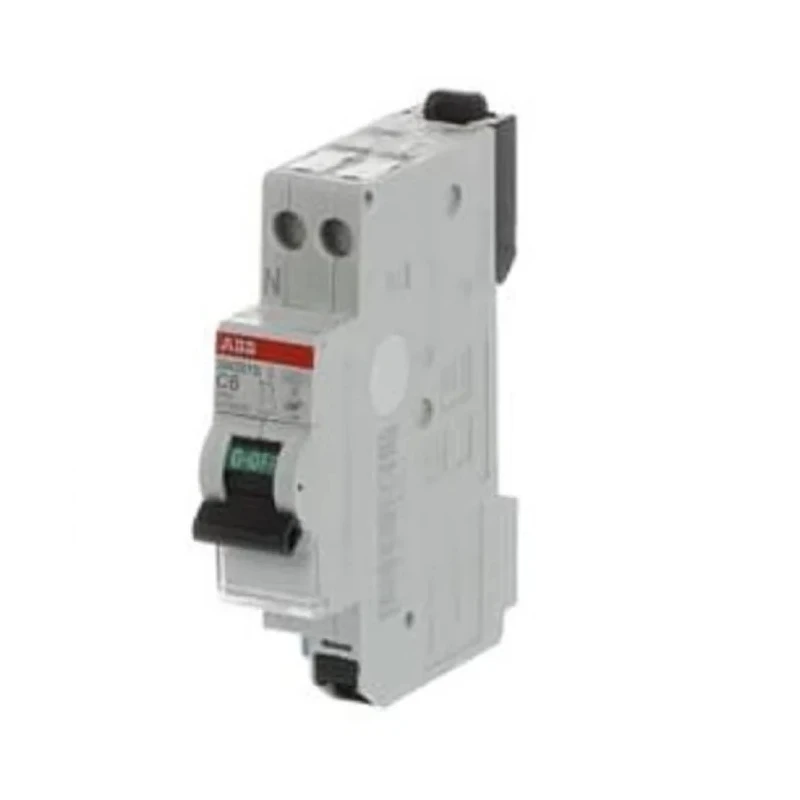

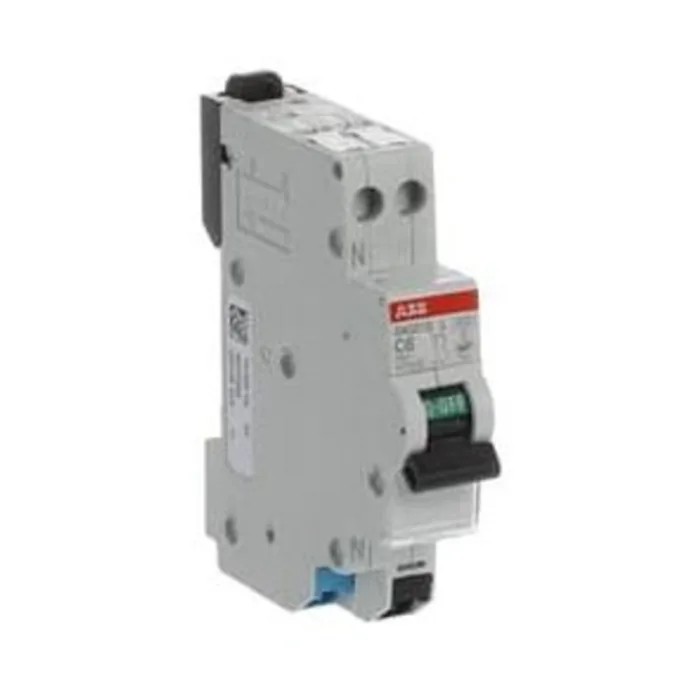

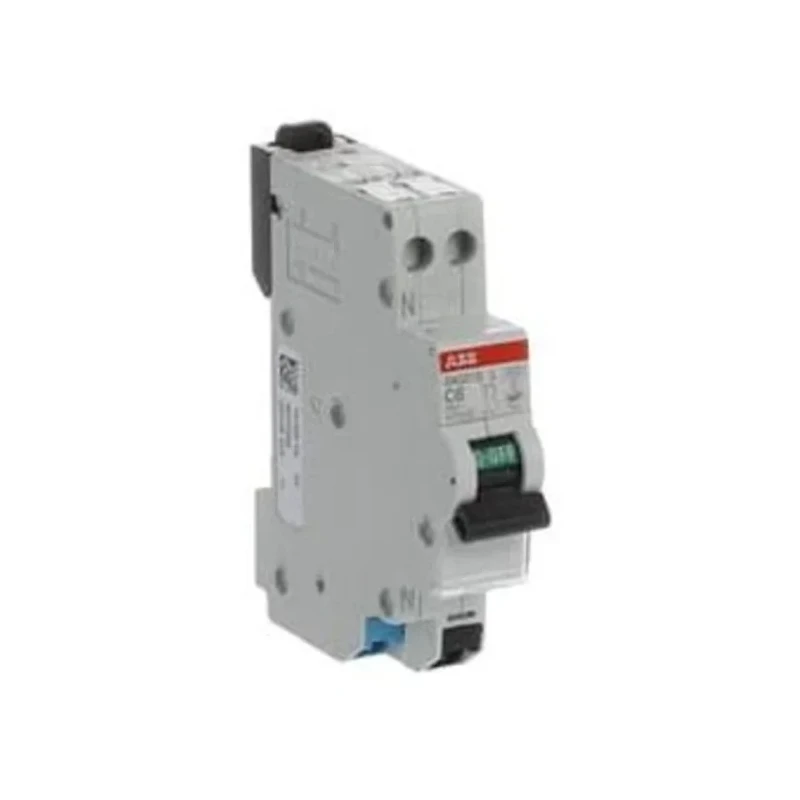

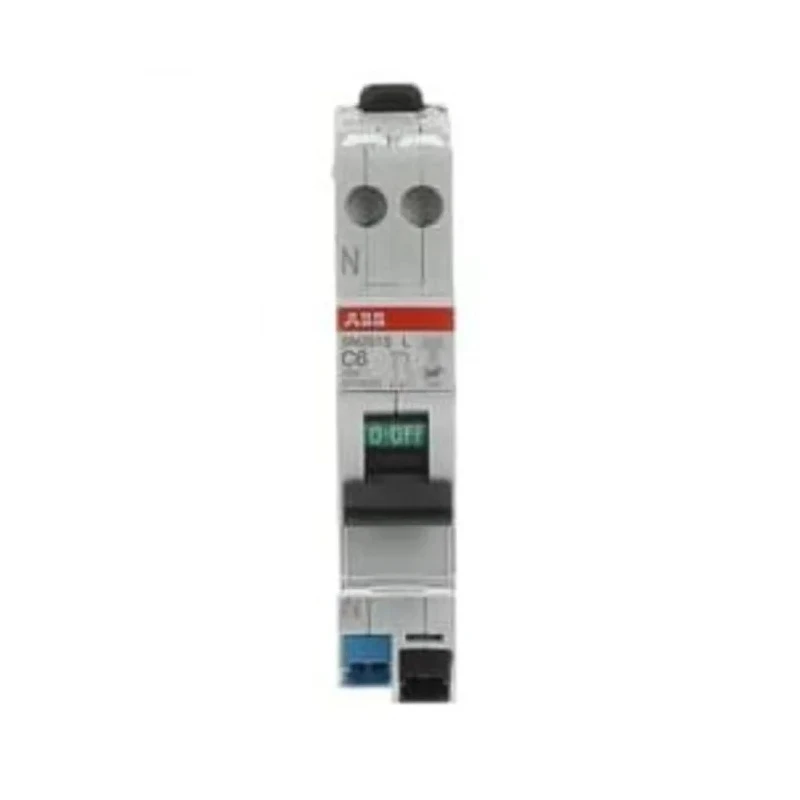

ABB SN201S Miniature Circuit Breaker 1-Pole 6A Type C 230V AC 4.5kA Breaking Capacity 2CSS245202R0064

ABB 2CSS245202R0064 Miniature Circuit Breaker (MCB) provides essential protection for electrical circuits with a 1-pole configuration and 6 ampere current rating. Operating at 230V AC, this Type C MCB trips promptly at current spikes between five to ten times its rated current, protecting motors and sensitive electrical equipment from damage.

Its compact size of 69 mm length, 85 mm depth, and 18 mm width allows installation in tight electrical cabinets. A high breaking capacity of 4.5 kiloamperes guarantees safe interruption under fault conditions in industrial, commercial, and residential electrical environments.

Designed for robust use, the device features an IP20 rating, safeguarding against finger contact and ingress of sizeable foreign objects, and employs a screwless terminal for quick connection and maintenance. The toggle switch actuator provides clear manual control for operation and reset.

Mounting onto DIN rails without additional tools ensures fast setup and integration within electrical panels. Mechanically rated for 20,000 operational cycles, this MCB assures long-term reliability even under frequent switching conditions.

Suitable for use in automotive maintenance, consumer electronics, printing presses, and various industrial applications, it withstands a wide temperature range from -25°C to +55°C, making it adaptable to harsh environmental settings.

Type C tripping characteristic ensures trip at 5 to 10 times rated current. Compact dimensions (69 x 85 x 18 mm) fit standard electrical panels. High breaking capacity of 4.5kA supports industrial applications. IP20 rating protects against touch and ingress of objects over 12 mm.

DIN Rail mount enables quick and secure installation without screws. Toggle switch actuator for intuitive manual operation and reset. Mechanical endurance rated at 20,000 cycles for durable performance. Screwless terminal design simplifies wiring and maintenance.

Operating temperature range from -25°C to +55°C suits harsh environments. Weighs just 110 grams, minimizing load on mounting systems.

This ABB SN201 Series product is an ideal choice for reliable circuit protection in industrial, commercial, and residential electrical installations. Browse the full range of Miniature Circuit Breakers and industrial electrical components on EnvMart.
