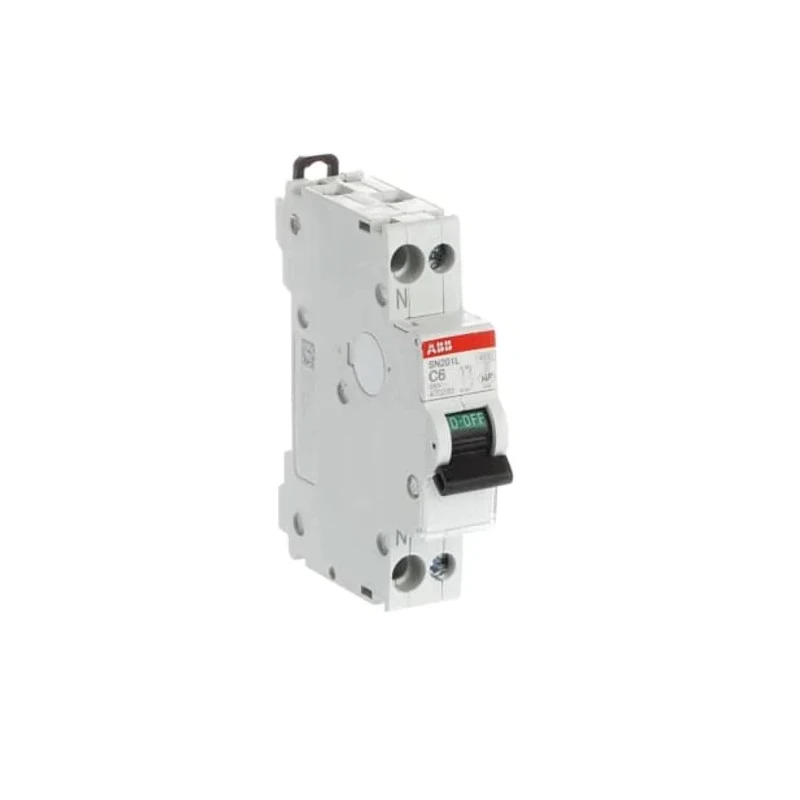

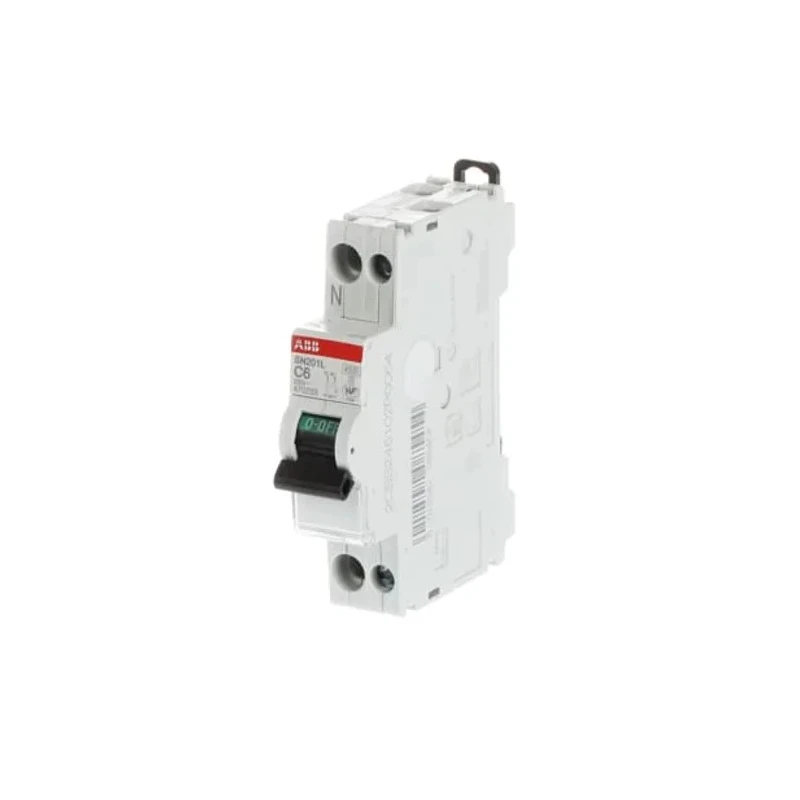

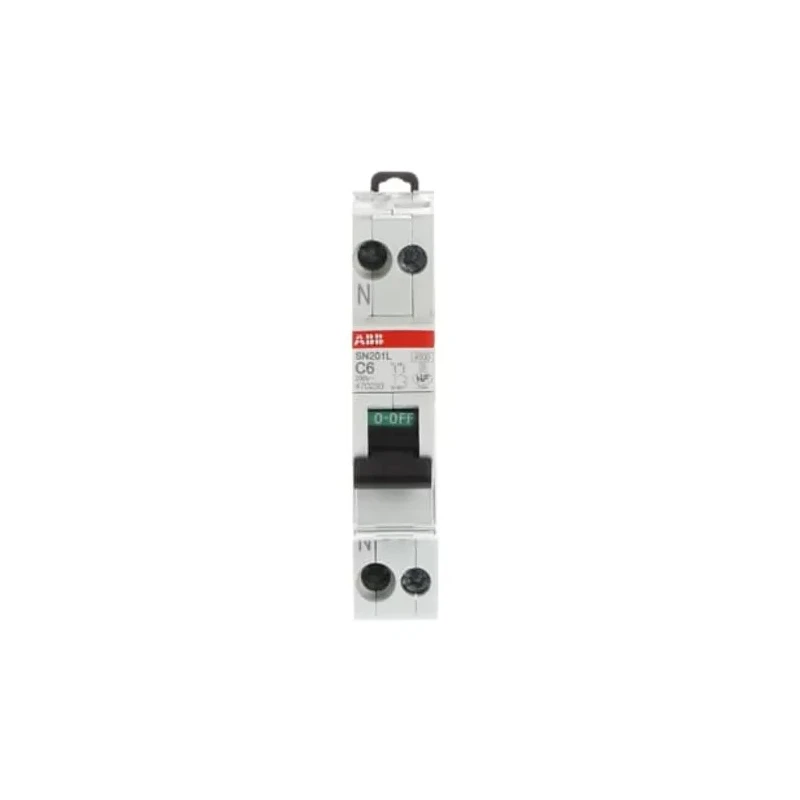

ABB Miniature Circuit Breaker 1-Pole 6A Type C, 230V AC, 4.5 kA Breaking Capacity SN201
Specifications
| Country of Origin | India |
|---|---|
| Brand | ABB |
| Height | 85mm |
| Model | SN201 |
| Depth | 85mm |
| IP Rating | IP20 |
| Width | 18mm |
| Mount Type | DIN Rail |
| Current Rating | 6A |
| Series | SN201 |
| Terminal type | Screw |
| Breaking Capacity | 4.5kA |
| Number of Poles | 1 |
| Standards/Approvals | IEC/EN 60898-1 |
| Rated AC Voltage | 230V ac |
| Tripping Characteristics | Type C |
| Reset Actuator Type | Toggle Switch |
Key Features
- Compact DIN rail mount design fits easily into electrical panels.
- Type C tripping characteristic triggers at 5 to 10 times rated current.
- Breaking capacity of 4.5 kA ensures safe interruption of fault currents.
- IP20 rated thermoplastic enclosure offers protection against electric shock.
- Screw terminals enable secure and quick wiring.
- Designed for a broad operating temperature range of -25°C to +55°C.
- Electrical endurance tested for 10,000 cycles ensuring long service life.
- Mechanical endurance of 20,000 cycles supports reliable operation in demanding environments.
Product Description
ABB SN201 Miniature Circuit Breaker Model SN201 is a 1-pole device rated for 6 amperes current and designed for 230V AC systems. It features Type C tripping characteristics, suitable for inductive loads including small motors and fluorescent lighting systems. The compact device measures 69 mm length, 18 mm width, and 85 mm height, weighing approximately 110 grams.
This MCB is mounted on a DIN rail and employs screw terminal connections for ease of installation. With a breaking capacity of 4.5 kA, it provides robust protection against short circuits and overloads. The breaker is housed in an IP20 rated thermoplastic enclosure to ensure safety from electric shock.
The SN201 series supports a wide temperature range from -25°C to +55°C and is suitable for various industrial and commercial applications such as automated production lines, food and beverage manufacturing equipment, and retail display protections. Its electrical endurance is tested for 10,000 cycles and mechanical endurance for 20,000 cycles, supporting high reliability and longevity.
Compact DIN rail mounting for flexible installation options. Type C trip curve protects against moderate inrush currents. Large breaking capacity meets industrial safety standards. Thermoplastic enclosure enhances user safety with IP20 rating.
Screw terminal connections ensure stable and secure wiring. Wide operating temperature range accommodates challenging environments. Long electrical and mechanical life cycles for dependable use.
Ideal for use in electrical panels for residential, commercial, and light industrial electrical protection tasks. ABB products maintain rigorous conformity with IEC/EN 60898-1 standards ensuring quality and safety. Browse our Miniature Circuit Breaker catalog at EnvMart for more ABB devices suitable for your electrical protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this model is 4.5 kA, providing robust protection against short circuits and overloads.
This miniature circuit breaker is rated for a current of 6 amperes.
The dimensions of this model are 69 mm in length, 18 mm in width, and 85 mm in height.
It is designed for DIN rail mounting, allowing for flexible installation options in electrical panels.
This model has an IP20 rating, which offers protection against electric shock.
The SN201 features Type C tripping characteristics, which are suitable for inductive loads like small motors and fluorescent lighting systems.
It operates effectively within a temperature range of -25°C to +55°C.
This model uses screw terminal connections for secure and quick wiring during installation.
It conforms to IEC/EN 60898-1 standards, ensuring quality and safety in its design and operation.
The mechanical endurance of this model is tested for 20,000 cycles, supporting reliable operation in demanding environments.
It is suitable for various industrial and commercial applications, including automated production lines and food and beverage manufacturing equipment.
This miniature circuit breaker weighs approximately 110 grams.
