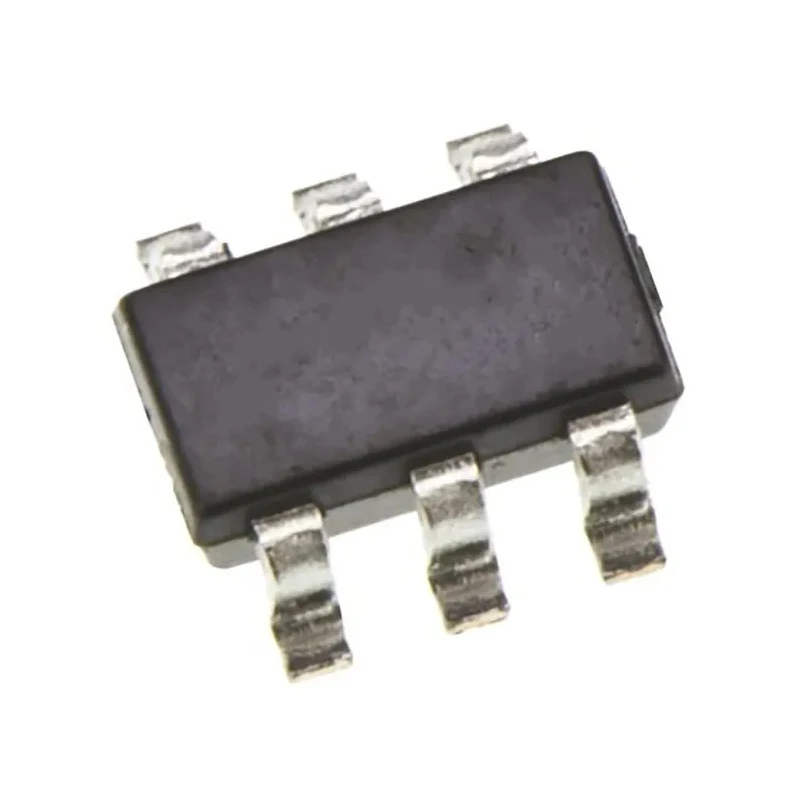

onsemi Optocoupler, Surface Mount 6-Pin SOP, 1 Channel, 1.8V Forward Voltage, 25mA Max Input Current, 20ns Rise Time FOD8163V

The onsemi FOD8163V is a high-performance optocoupler designed for surface mount applications requiring electrical isolation and high-speed data transfer. Featuring a 6-pin SOP package and single channel configuration, it is highly suitable for use in industrial communication interfaces and isolating intelligent power modules.

This device offers a maximum forward input voltage of 1.8 volts and a maximum input current of 25 milliamps. It operates reliably across an industrial temperature range from -40°C to 100°C, making it ideal for harsh environments. A typical rise time of 20 nanoseconds combined with a fall time of 10 nanoseconds supports high-speed data rates up to 10 Mbit/s (NRZ).

With an 8 mm creepage and clearance distance and 0.4 mm insulation distance, the FOD8163V guarantees safe high voltage isolation. Its high noise immunity, characterized by a minimum common mode transient immunity (CMTI) of 20 kV/μs, ensures reliable operation in noisy electrical environments.

Certified to standards UL1577 and DIN-EN/IEC60747-5-5, this new optocoupler offers robust performance and safety assurance. The logic output feature allows direct interfacing with digital logic circuits, enhancing system design flexibility.

Surface mount 6-pin SOP packaging ensures compact PCB integration. Maximum forward voltage of 1.8 volts supports efficient low voltage operation. Typical rise time of 20 nanoseconds and fall time of 10 nanoseconds enable high-speed data communication.

Maximum input current rating of 25 milliamps allows safe, reliable input drive. High common mode transient immunity of 20 kV/μs ensures robust noise rejection in industrial environments. Industrial temperature range from -40°C to 100°C supports extended operating conditions.

Compliance with UL1577 and DIN-EN/IEC60747-5-5 standards guarantees safety and reliability. Logic output facilitates direct interfacing with microcontrollers and digital circuits. Manufactured in Thailand in new condition.

This optocoupler is well suited for applications in industrial communication devices, intelligent power modules, and general electrical isolation tasks in industrial, manufacturing, and automation sectors.
