RS PRO 7 Segment LED LCD Monochrome Display Black on Grey 1 x 3-1/2 185-8529

Free Delivery in India | Lowest Global Shipping Charges

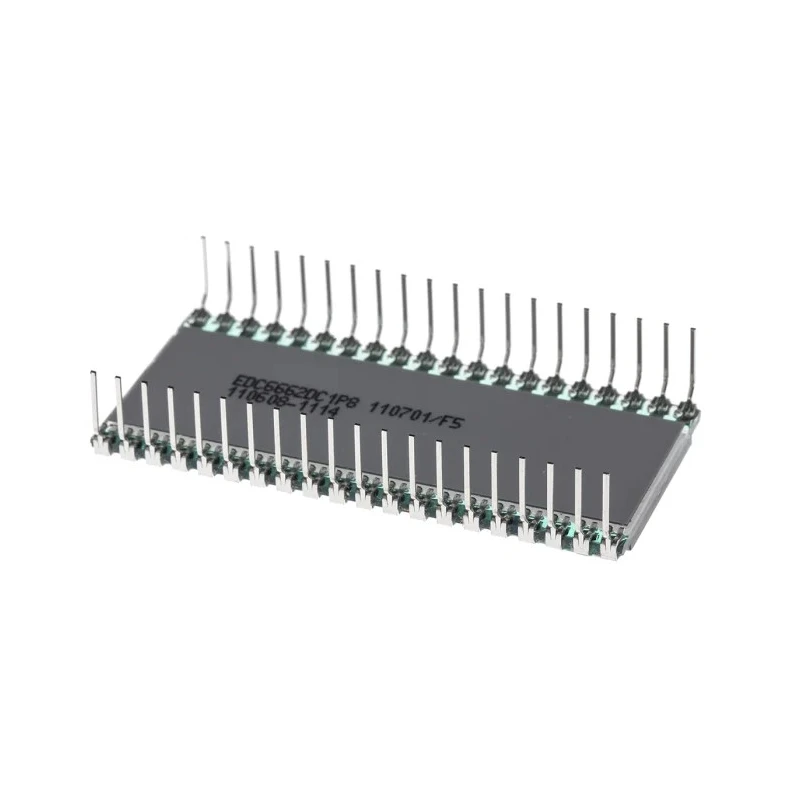

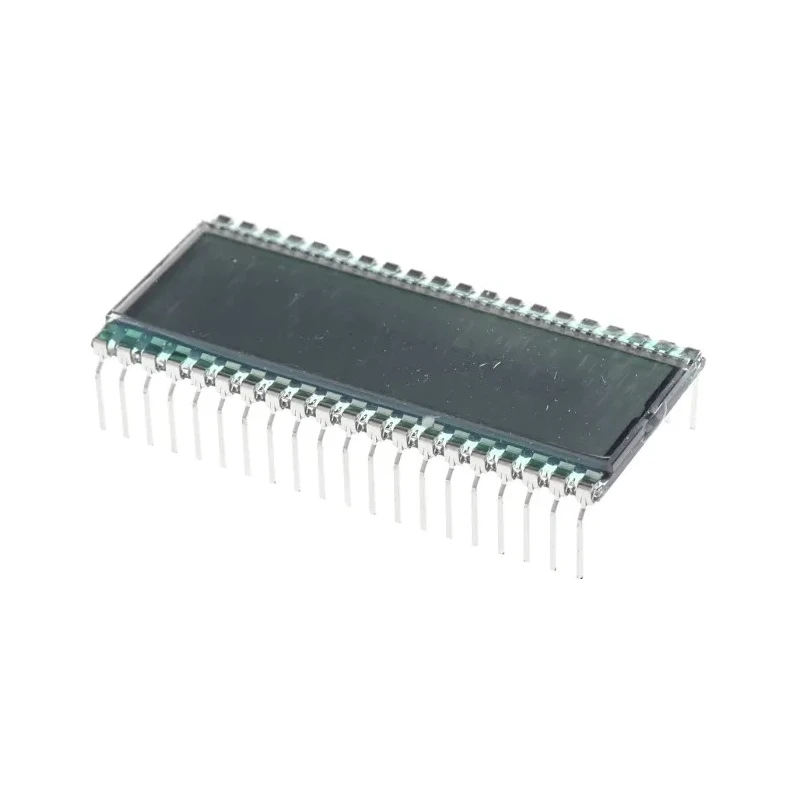

RS PRO 7 Segment LED LCD Monochrome Display Black on Grey 1 x 3-1/2 185-8529

Name: RS PRO 7 Segment LED LCD Monochrome Display Black on Grey 1 x 3-1/2 185-8529
Brand: RS PRO
SKU: 157180
Price: 16.01 USD
Availability: InStock



Category LCD Monochrome Display Brand RS PRO Condition New

Specifications

Country of Origin	China
Display Type	7 Segment
Brand	RS PRO
Model	185-8529
Series	RS PRO
Character height	8.9mm
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-30°C
External Width	50.8mm
External Depth	2.9mm
External Height	22.8mm
Character Width	5mm
Illumination Colour	Black
Viewing Area Dimensions	45 x 12 mm
Backlight Type	LED
Character Matrix	1 x 3-1/2

Key Features

Displays 7-segment characters with inter-digit decimal points and alternate inter-digit colons.
Viewing area dimensions measure 45 x 12 mm with character height of 8.9 mm and character width of 5 mm.
Equipped with LED backlight and reflective/transflective technology for use in sunlight and low-light conditions.
External dimensions are 50.8 mm width, 22.8 mm height, and 2.9 mm depth, supplied as a flat glass plate with rigid pins in a DIL package format.
Operating temperature range from -30°C minimum to 80°C maximum, suitable for diverse environmental conditions.
Includes bezel and designed for extremely low power consumption, ideal for battery-powered equipment.
Wide viewing angle enhances readability in various industrial and commercial applications.

Product Description

RS PRO 185-8529 7 Segment LED LCD Monochrome Display delivers clear display performance using a standard 7-segment format with black illuminated segments on a grey background. Featuring a character matrix of 1 x 3-1/2, the display provides an effective viewing area of 45 x 12 mm. It incorporates LED backlight technology, combining reflective and transflective modes, which makes it highly visible both in bright sunlight and low-light environments.

The display's physical dimensions are a compact 50.8 mm width, 22.8 mm height, and a slender 2.9 mm external depth, supplied as a flat glass plate with rigid pins suitable for direct installation. Character height and width measure 8.9 mm and 5 mm respectively, ensuring legibility in control panels and instrumentation.

Operating within a temperature range from -30°C to 80°C, this LCD module is designed for robust industrial and laboratory environments. Its extremely low power consumption makes it ideal for battery-operated devices. The device includes a bezel for enhanced mechanical protection and aesthetics.

The standard 7-segment format displays numeric information with inter-digit decimal points and alternate inter-digit colons, useful for timers, counters, and measuring instruments. The wide viewing angle supports versatile installation locations.

Applications include use in industrial control systems, electronic instrumentation, measurement equipment, and other commercial and technical setups requiring clear numeric display under varied ambient lighting conditions.

Caution is advised to observe anti-static precautions when handling or storing the LCD modules. Displays 7-segment numeric characters with decimal and colon points. Robust design suitable for industrial, laboratory, and commercial electronic applications.

LED backlight enhances visibility in all lighting conditions. Low power consumption optimizes battery-powered device performance. Compact size and standard DIL package ensure compatibility with various electronics. Wide operating temperature range accommodates challenging environments.

Bezel included for physical protection and ease of integration. Explore the Electronics Components section on EnvMart for more LCD and LED display modules to suit your project needs.
