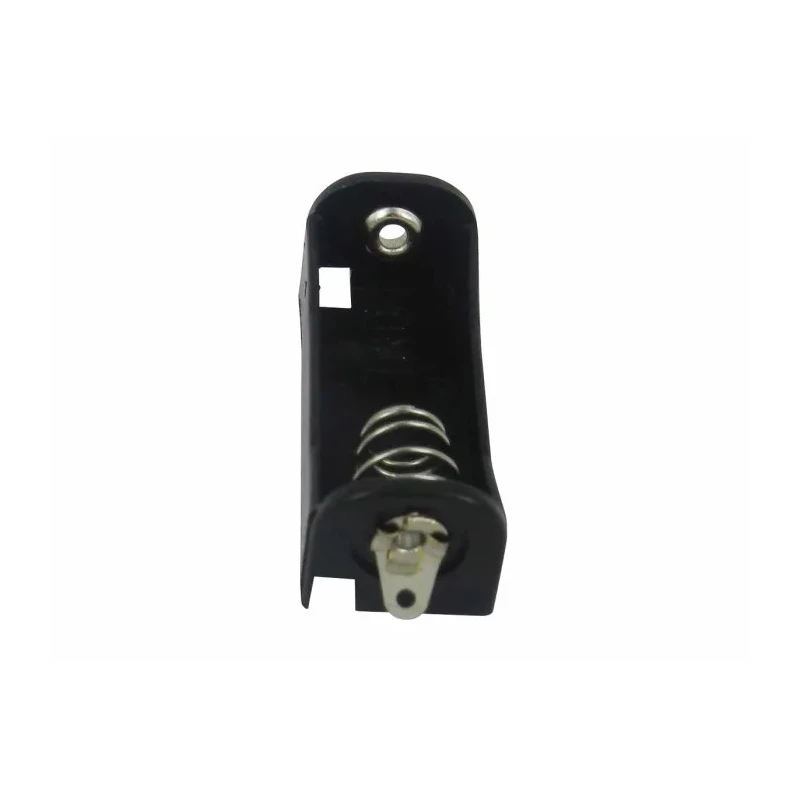

RS PRO N Size 1 Cell Polypropylene Battery Holder Snap-in Mount with Solder Tag 185-4752
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 12mm |
| Brand | RS PRO |
| Body Material | Polypropylene |
| Height | 12.5mm |
| Length | 34.6mm |
| Model | 185-4752 |
| Width | 13.2mm |
| Mount Type | Snap-in |
| Series | RS PRO |
| Number of Cells | 1 |
| Termination Type | Solder Tag |
| Sub Type | Battery Holder |
| Compatible Battery Size | N |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Spring material | 0.5mm 65C nickel-plated steel |
| Rivet material | Nickel-plated brass |
| Holder material | PP resin |
| Terminal contact | Solder tag |
Key Features
- Constructed with durable polypropylene resin for long-lasting performance.
- Snap-in mount type ensures easy and secure installation in battery compartments.
- Features a small brass nickel-plated solder lug for reliable electrical connection.
- Spring made from 0.5mm 65C nickel-plated steel provides effective holding force.
- Rivet and terminal contact utilize nickel-plated brass and solder tag for corrosion resistance.
- Compact dimensions measuring 34.6 mm length, 13.2 mm width, and 12.5 mm height.
- Suitable for use in electronic components, power supply systems, and battery charger accessories.
Product Description
RS PRO 185-4752 is a high-quality battery holder designed specifically for N size batteries with a single cell configuration. The holder is made from robust polypropylene (PP) resin which provides excellent durability and resistance to wear. It features a snap-in mount type for straightforward assembly and integration into battery compartments commonly found in electronic devices and power supply systems.
This holder incorporates a solder tag termination with a small brass nickel-plated solder lug for secure and reliable electrical connections. The spring mechanism is crafted from 0.5mm thick 65C nickel-plated steel, which offers a strong, consistent contact force to firmly hold the battery in place. Rivets and terminal contacts are constructed using nickel-plated brass, enhancing the corrosion resistance and longevity of the component.
With precise dimensions of 34.6 mm in length, 13.2 mm in width, and 12.5 mm in height, the holder fits N size battery cells perfectly. It is commonly used in a variety of industrial and commercial electronic assemblies, battery chargers, and power connector applications where dependable battery retention is critical.
The RS PRO battery holder 185-4752 adheres to well-recognized industry standards including ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, ensuring that it meets international safety and quality benchmarks.
Constructed from polypropylene resin for durability. Snap-in mount type for easy installation. Brass nickel-plated solder lug for secure connection. Nickel-plated steel spring for reliable battery retention. Nickel-plated brass rivet and terminal contact for corrosion resistance.
Compact size designed for N size, 1 cell batteries. Suitable for electronic components and power supply applications. Complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards.
This battery holder is ideal for industrial, laboratory, and consumer electronic applications where reliable cell mounting and electrical contact is essential. Browse EnvMart’s extensive range of power connectors and Battery Holders to find compatible accessories and components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This battery holder is designed for N size batteries with a single cell configuration. Its dimensions are 34.6 mm in length, 13.2 mm in width, and 12.5 mm in height.
The holder is constructed from polypropylene (PP) resin, while the spring is made from 0.5mm thick 65C nickel-plated steel. The rivets and terminal contacts are made from nickel-plated brass.
The snap-in mount type allows for straightforward assembly and integration into battery compartments, ensuring easy and secure installation of the holder in electronic devices and power supply systems.
It features a solder tag termination with a small brass nickel-plated solder lug, providing secure and reliable electrical connections.
This model complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, ensuring it meets recognized safety and quality benchmarks.
The spring, made from 0.5mm 65C nickel-plated steel, provides a strong and consistent contact force to firmly hold the battery in place, ensuring reliable retention.
It is suitable for use in electronic components, power supply systems, and battery charger accessories, where dependable battery retention is critical.
The weight of this battery holder is not specified in the provided information.
The nickel-plated brass used for rivets and terminal contacts enhances corrosion resistance, contributing to the longevity of the component.
This holder is compatible with N size batteries, which have a diameter of 12 mm.
The combination of the snap-in mount and the spring mechanism ensures that the battery is held securely in place, preventing movement during operation.

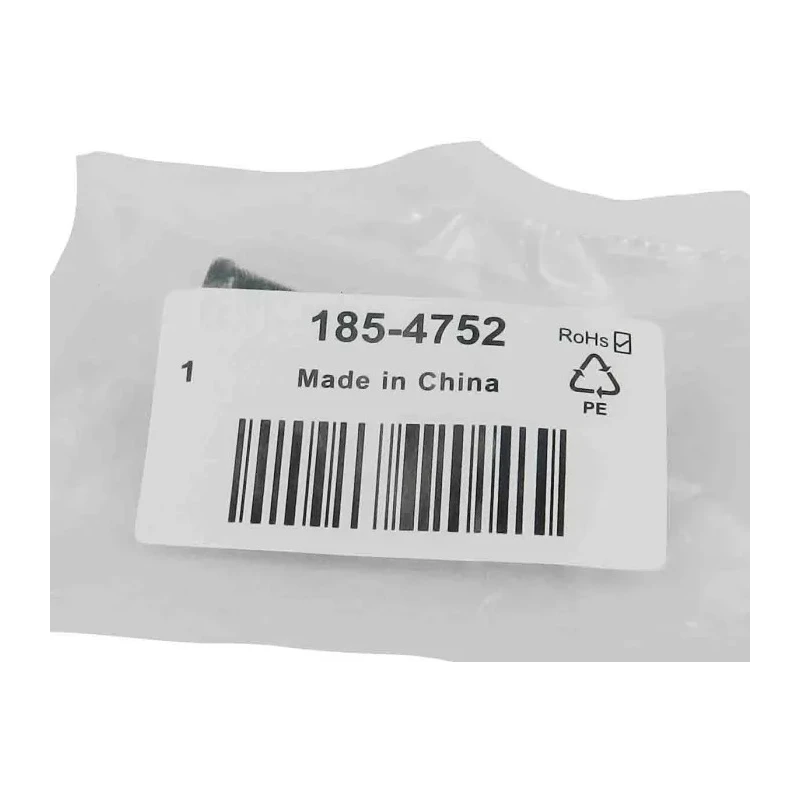

The country of origin for this battery holder is China.
