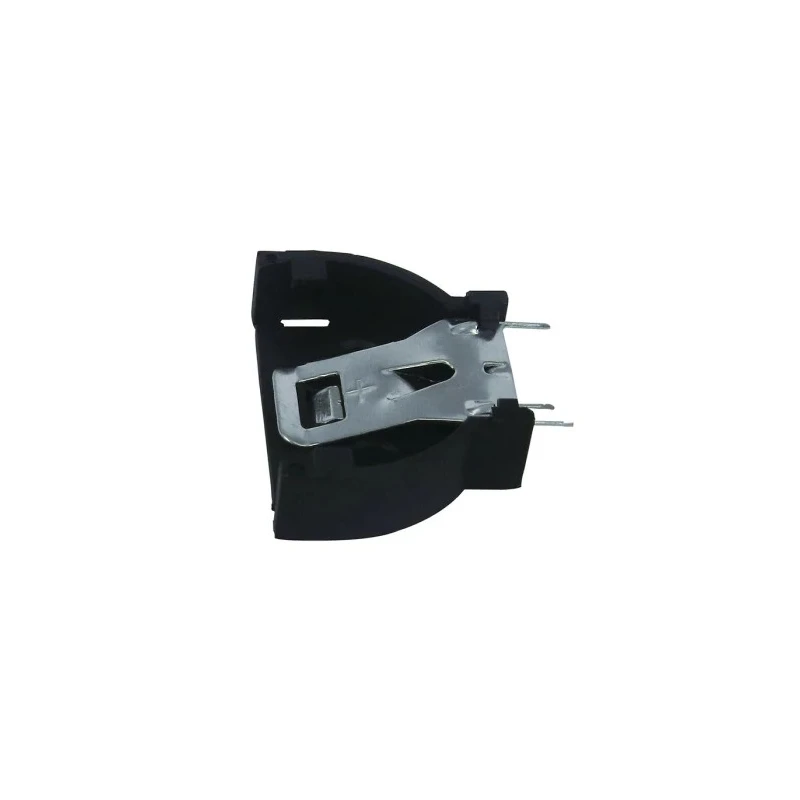

RS PRO CR2032 Battery Holder Surface Mount Nylon 66 +15%GF, 500V, 2A CR2032
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 20.5mm |
| Brand | RS PRO |
| Material | Nylon 66 +15%GF |
| Body Material | Nylon |
| Height | 5.7mm |
| Humidity | 40°C |
| Length | 23mm |
| Model | CR2032 |
| Width | 22.9mm |
| Mount Type | PCB |
| Series | RS PRO |
| Number of Cells | 1 |
| Termination Type | Surface Mount |
| Insulation resistance | 1000megaohms |
| Sub Type | Battery Holder |
| Compatible Battery Size | CR2032 |
| Contact Resistance | 30milliohms maximum |
Key Features
- Constructed from durable Nylon 66 with 15% glass fiber reinforcement.
- Supports a voltage rating of 500V AC/DC and current rating of 2A.
- Designed for PCB mounting with surface mount termination type.
- Compact dimensions measuring 22.9mm width, 23mm length, and 5.7mm height.
- Operates reliably within temperatures from -55°C to +105°C.
- Contact electrodes made from 0.3mm thick phosphor bronze, tin plated over nickel.
- Insulation resistance of 1000 megaohms with contact resistance maximum 30 milliohms.
- Certified UL 94V0 approved for flame retardant standards.
Product Description
RS PRO CR2032 Battery Holder Surface Mount is engineered for reliable battery retention of CR2032 cells in electronic assemblies. The holder features a robust Nylon 66 body reinforced with 15% glass fiber for mechanical strength and thermal stability. It is suitable for PCB mounting with a surface mount termination type ensuring compact and secure installation.
This battery holder supports a high voltage rating of 500V AC/DC and a current rating of 2A, making it ideal for various electronic devices requiring dependable power connection. It operates efficiently between -55°C and +105°C temperature ranges, allowing versatility in different operating environments.
The contact electrodes utilize phosphor bronze, 0.3mm thick with tin plating over nickel, ensuring excellent conductivity and corrosion resistance. The insulation resistance is rated at 1000 megaohms with a maximum contact resistance of just 30 milliohms, guaranteeing electrical performance consistency. This product is UL 94V0 approved, confirming its flame-retardant properties for enhanced safety.
Its compact size with dimensions 22.9mm width x 23mm length x 5.7mm height and a 20.5mm diameter body design makes it suitable for tight PCB layouts. The holder is specifically designed for a single CR2032 battery cell.
Applications for this battery holder include industrial equipment, consumer electronics, instrumentation, and other embedded systems requiring compact, reliable coin cell power solutions. Manufactured in China to meet stringent quality standards, this RS PRO battery holder combines durability with excellent electrical performance.
Constructed from Nylon 66 with 15% glass fiber for strength. Voltage rating of 500V AC/DC, current rating 2A for versatile applications. Surface mount type for PCB mounting and secure fitment. Compact form factor with precise dimensions.
Wide operational temperature range from -55°C to +105°C. High-quality phosphor bronze contact electrodes with tin plating. High insulation resistance and low contact resistance values. UL 94V0 flame retardant approved for safety compliance.
Ideal for CR2032 single cell coin battery use. Explore the RS PRO range of Battery Holders at EnvMart for dependable power solutions in your electronics projects and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a voltage rating of 500V AC/DC and a current rating of 2A.
It has compact dimensions measuring 22.9mm in width, 23mm in length, and 5.7mm in height.
This battery holder is specifically designed for a single CR2032 battery cell.
The holder is constructed from Nylon 66 with 15% glass fiber reinforcement for added strength.
It operates reliably within a temperature range of -55°C to +105°C.
It has an insulation resistance rating of 1000 megaohms.
The maximum contact resistance is 30 milliohms.
It is designed for PCB mounting with a surface mount termination type.
The contact electrodes are made from 0.3mm thick phosphor bronze, tin plated over nickel.
It is UL 94V0 approved, confirming its flame-retardant properties for enhanced safety.
It is manufactured in China to meet stringent quality standards.
It is suitable for use in industrial equipment, consumer electronics, instrumentation, and other embedded systems requiring compact power solutions.
