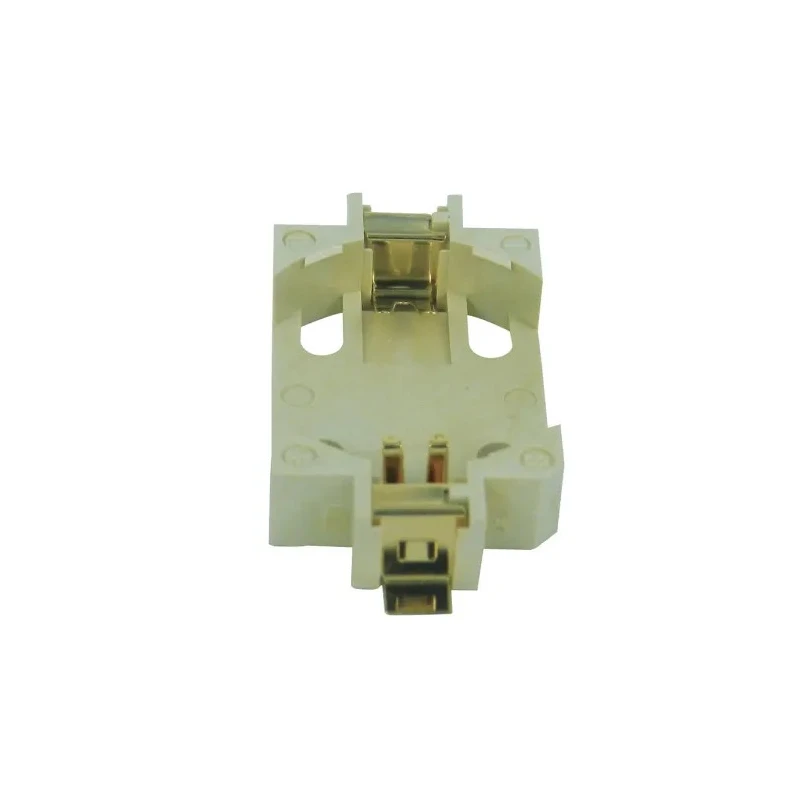

RS PRO Battery Holder for CR2032 Battery 500V AC/DC 2A Solder Tag CR2032

RS PRO CR2032 Battery Holder is engineered for secure housing of CR2032 coin cell batteries, supporting applications requiring a voltage rating of 500V AC/DC and current capacity of 2A. This battery holder features termination via solder tags, enabling firm electrical connections on printed circuit boards in electronic assemblies.

Manufactured from glass filled liquid crystal polymer (LCP) with 30% glass fibre reinforcement, the holder ensures mechanical strength and heat resistance over wide temperature ranges from -55°C up to 85°C. The electrode contacts are phosphor bronze, plated with a 1 micron thick layer of gold over a 5 micron nickel barrier, providing robust corrosion resistance and low contact resistance (maximum 30 milliohms) for dependable electrical performance.

The product dimensions measure 31.9 millimeters in length, 16 millimeters in width, and 5.75 millimeters in height, making it suitable for compact electronic design layouts. It offers insulation resistance of 500 megaohms to ensure circuit isolation and minimize leakage currents.

This battery holder meets the stringent UL 94V0 standard for flammability, enhancing safety in various industrial, commercial, and consumer electronic applications such as automotive electronics, embedded systems, medical instruments, and remote sensors.

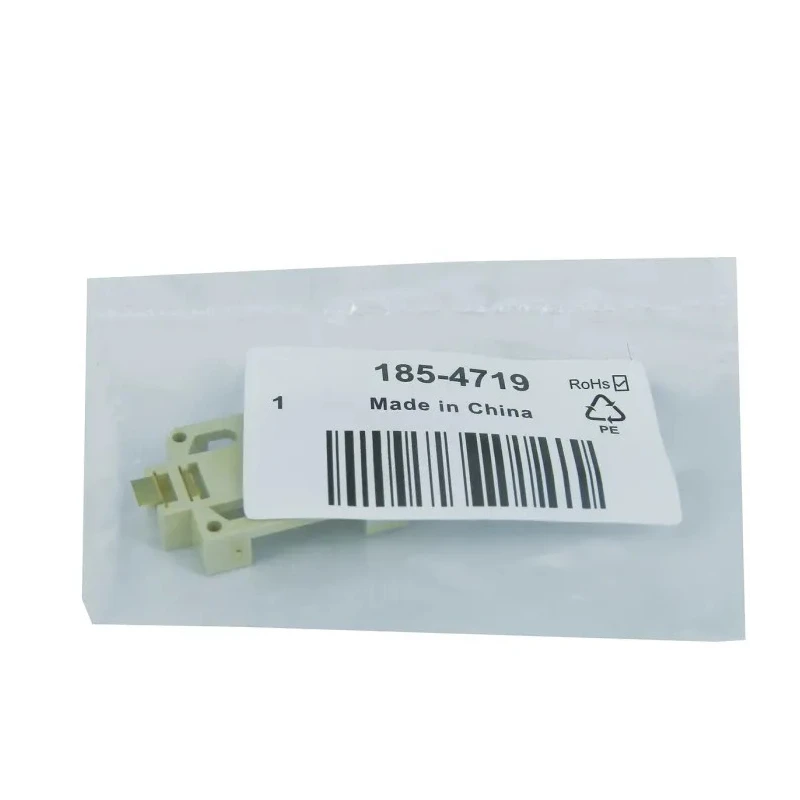

Manufactured in China, this battery holder provides reliable battery contact and mechanical retention, optimized for solder tag style assembly methods. Constructed from glass filled liquid crystal polymer (LCP +30%GF) for high durability and thermal stability.

Phosphor bronze gold-plated electrodes offer corrosion resistance and minimal contact resistance. Rated for voltage up to 500V AC/DC and current up to 2A. Operational temperature range from -55°C to +85°C suits diverse environments.

Compact form factor with dimensions 31.9 x 16 x 5.75 mm accommodates space limited designs. Solder tag termination enables secure PCB mounting and electrical connectivity. Insulation resistance at 500 megaohms ensures high dielectric strength.

UL 94V0 certification for flame retardancy complies with safety norms. Compatible with single CR2032 coin cell battery applications. Ideal for electronics manufacturing, repair, and prototyping. Explore more RS PRO electronic components and battery accessories on EnvMart for industrial and commercial electronics projects.
