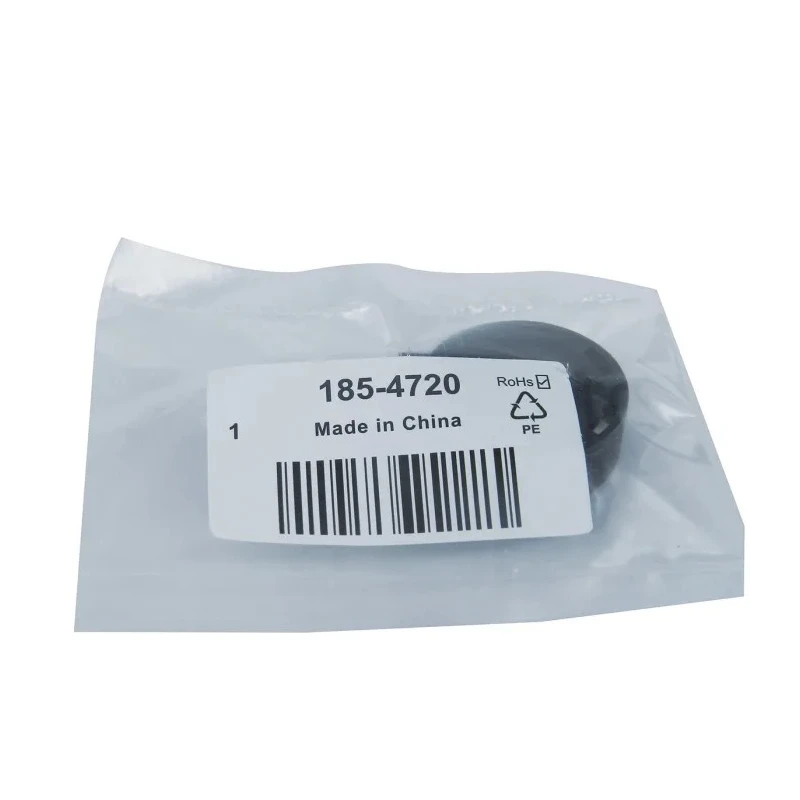

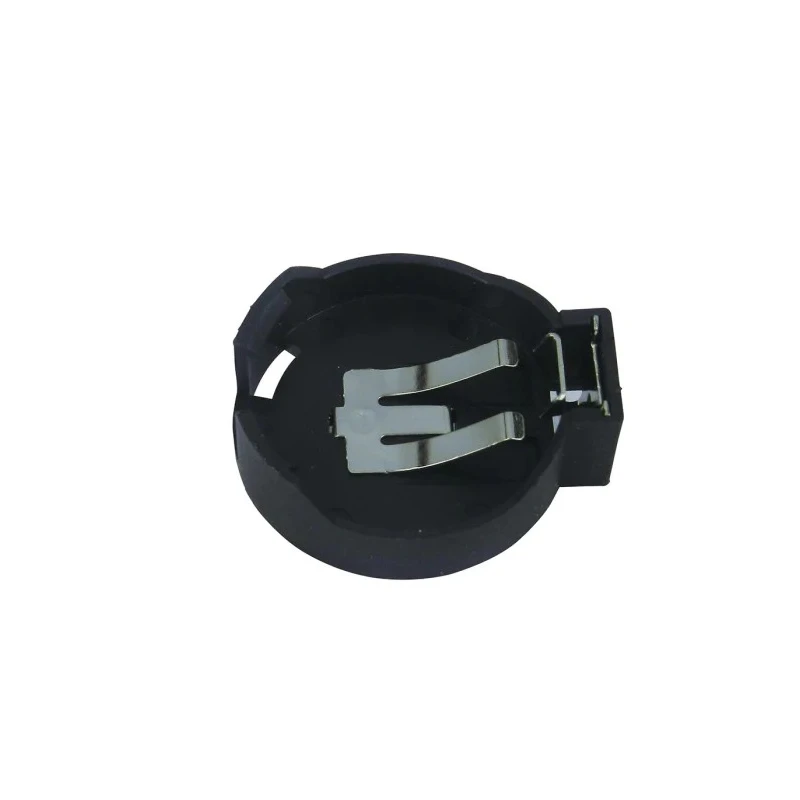

RS PRO CR2450 Battery Holder Surface Mount Polybutylene Terephthalate Body PCB Mount 3A 250V CR2450
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 24.5mm |
| Brand | RS PRO |
| Material | PBT +30%GF |
| Body Material | Polybutylene Terephthalate |
| Height | 9.5mm |
| Humidity | 40°C |
| Length | 29.35mm |
| Model | CR2450 |
| Width | 26.75mm |
| Mount Type | PCB |
| Series | RS PRO |
| Number of Cells | 1 |
| Termination Type | Surface Mount |
| Insulation resistance | 1000megaohms |
| Sub Type | Battery Holder |
| Compatible Battery Size | CR2450 |
| Contact Resistance | 30milliohms maximum |
| RND CR2430 Battery HolderBrand | RND |
Key Features
- Suitable for one CR2450 cell battery with a surface mount PCB design.
- Constructed from PBT with 30% glass fibre providing high mechanical strength.
- Gold plated phosphor bronze contact ensures low contact resistance and reliable conductivity.
- Withstands operating temperatures from -40°C to 105°C for various environments.
- Rated for 3 amp current and 250 volts AC/DC voltage for versatile electronic applications.
- Compact dimensions of 29.35mm length, 26.75mm width, and 9.5mm height.
- Contact resistance is maintained below 30 milliohms maximum for consistent battery connection.
- Insulation resistance of 1000 megaohms enhances electrical safety and insulation quality.
Product Description
RS PRO CR2450 Battery Holder Surface Mount is a high-quality battery holder designed to accommodate a single CR2450 button cell. It features a durable Polybutylene Terephthalate (PBT) body reinforced with 30% glass fiber, ensuring mechanical robustness and heat resistance suitable for industrial and commercial electronic applications.
The holder has surface mount termination type allowing for efficient PCB mounting and automated soldering processes. Gold plated phosphor bronze contacts provide excellent electrical conductivity and ensure a reliable connection with minimal contact resistance capped at 30 milliohms. The insulation resistance of the device is rated at 1000 megaohms, contributing to optimal electrical performance and safety.
It is specified for a voltage rating of 250 volts AC/DC and a current rating of 3 amps, making it suitable for various power supply and battery-operated devices. The operating temperature range from -40°C to 105°C enables use in demanding environments without compromising performance.
The compact dimensions of 29.35 mm (length) x 26.75 mm (width) x 9.5 mm (height) allow this battery holder to fit well within constrained PCB layouts, common in consumer electronics, instrumentation, and industrial devices.
Compatible with CR2450 battery size, one cell capacity. Material constructed with flame retardant PBT + 30% glass fiber for durability and safety. Phosphor bronze contact plated with gold for corrosion resistance and optimal electrical contact.
Surface mount termination suitable for PCB assembly and soldering. Insulation resistance of 1000 megaohms prevents electrical leakage. Compact size allowing versatile mounting and design flexibility. Meets UL 94V0 standard for flame retardance.
This battery holder is ideal for use in electronic components, power supply distribution systems, instrumentation panels, and other industrial or laboratory setups where reliable battery connection and compact PCB integration are critical.
Explore more premium Battery Holders and electronic components in the Electronics & Electricals category at EnvMart for your varied industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS PRO CR2450 battery holder has a maximum current rating of 3 amps.
It is rated for a voltage of 250 volts AC/DC, making it suitable for various electronic applications.
The compact dimensions are 29.35 mm in length, 26.75 mm in width, and 9.5 mm in height.
This model is designed to accommodate one CR2450 cell battery.
It is constructed from Polybutylene Terephthalate (PBT) reinforced with 30% glass fiber for added strength.
The contact resistance is maintained below 30 milliohms maximum for reliable conductivity.
The insulation resistance is rated at 1000 megaohms, enhancing electrical safety and insulation quality.
It can operate in temperatures ranging from -40°C to 105°C, suitable for various environments.
This unit features a surface mount termination type, allowing for efficient PCB assembly and soldering.
It is ideal for use in electronic components, power supply distribution systems, and instrumentation panels.
It meets the UL 94V0 standard for flame retardance, ensuring safety in various applications.
The humidity rating is specified at 40°C, indicating its suitability for certain environmental conditions.
