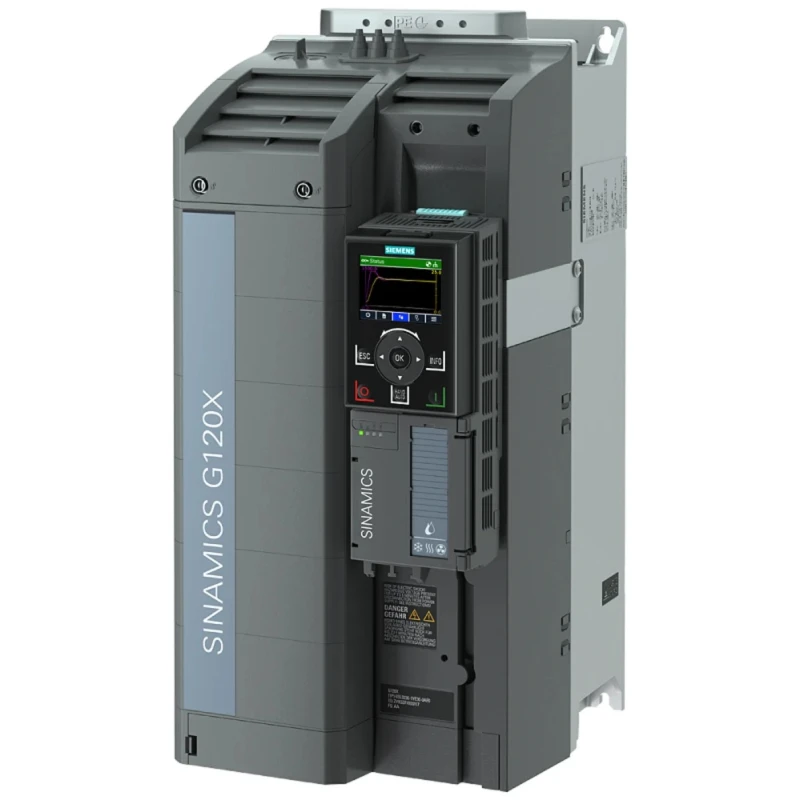

Siemens Inverter Drive SINAMICS G120X Series 30 kW 3 Phase 480V 12A PID Control 6SL3220-1YE34-0UF0

Siemens 6SL3220-1YE34-0UF0 is a high-performance inverter drive from the SINAMICS G120X series designed for efficient motor control in a wide range of industrial automation systems. This inverter drive offers a power rating of 30 kW with a maximum output current of 12A and supports a three-phase supply voltage range of 380V to 480V AC. It is intended for wall mounting, featuring a compact form factor with overall dimensions of 472mm in length, 200mm in width, and 248mm in depth, allowing easy integration into control panels and industrial enclosures.

The drive utilizes PID control technology to optimize motor performance and maintains precise speed and torque regulation across an output frequency range up to 550Hz. It is compliant with numerous international standards such as CE, UL, cUL Recognized, EAC, KCC, RCM, REACH, SEMI F47, and UL Listed, ensuring safety and reliability in demanding industrial environments.

With an IP20 protection rating, this drive is suited for typical industrial conditions and features air cooling with an integrated fan requiring a minimum airflow of 0.055 m³/s for optimal operation. The device is capable of operating under ambient temperatures from -20°C up to +55°C and can tolerate storage and transport temperatures between -40°C and 70°C. Overload capabilities include low overload of 110% and high overload of 150% for 60-second durations, safeguarding the drive during peak loads.

Connectivity is enhanced through Profinet Field Bus Communication, offering flexible integration with automation networks. The inverter supports screw-type terminal connections accommodating conductor cross-sections from 10.00 mm² to 35.00 mm² for line side and motor endpoints, suited for robust wiring configurations.

This inverter drive is ideal for use with SINAMICS G120X systems where precise speed and torque control is required. Its energy-saving design contributes to industrial sustainability efforts, making it suitable for manufacturing, HVAC, water treatment, and various industrial applications requiring reliable and efficient motor drives.

Features PID control for optimized motor performance and reliable operation. Supports output frequencies up to 550Hz suitable for diverse industrial applications. Compact wall mount design with overall dimensions 472mm x 200mm x 248mm for space-saving integration.

Built-in overload protection ensures safe operation under varying load conditions. Compatible with 380V to 480V AC supply voltage and AC motors for versatile use. Designed for operation from -20°C up to +55°C ambient temperatures.

IP20 rated enclosure providing protection in standard industrial environments. Complies with international certifications including CE, UL, cUL, EAC, KCC, and REACH. Explore more Siemens Inverter Drives and related automation control gear at EnvMart for your industrial automation needs.
