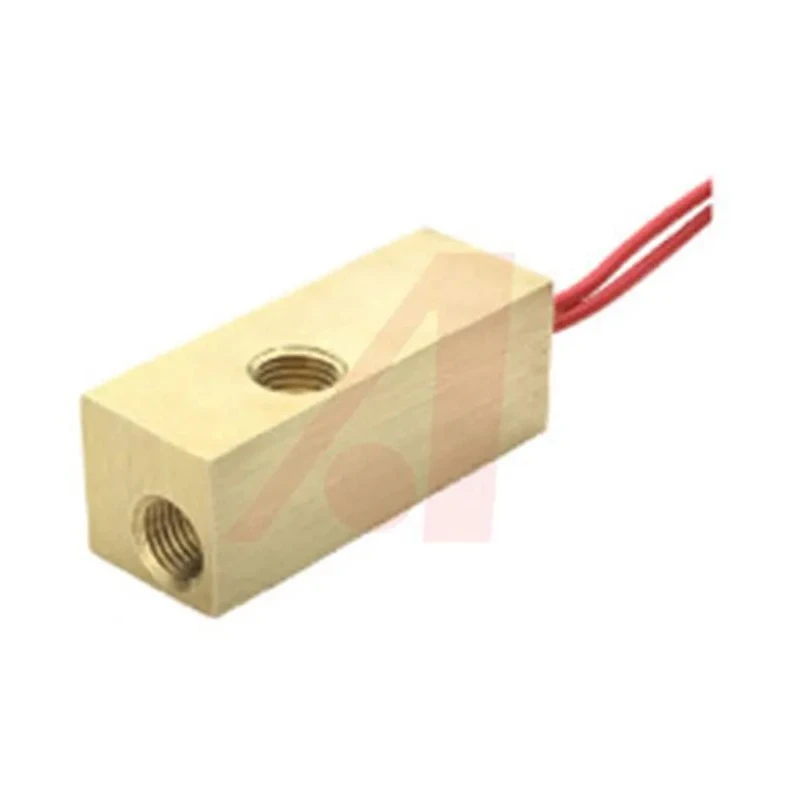

Gems Sensors FS-927 Series Piston Flow Switch for Liquid, 1 gal/min Max, Brass and Stainless Steel Construction FS-927 70824

Gems Sensors FS-927 Series Piston Flow Switch is a compact, high-quality device engineered for liquid flow monitoring in diverse industrial environments. Measuring only 25 x 70 mm (1 inch by 2 3/4 inches), this flow switch is ideal for installations where space is limited yet reliable performance is essential.

This piston-type flow switch is primarily constructed from brass and stainless steel, providing excellent durability and resistance to corrosion, making it suitable for use with water and oil media. With a connection size of 1/4 inch NPT female, it integrates easily into standard piping systems.

The FS-927 Series supports a maximum flow rate of 1 gal/min and can handle pressures up to 69 bar, enabling use in high-pressure environments. It operates reliably across a wide temperature range from -29°C up to 93.3°C, allowing adaptation to various process conditions.

This flow switch finds applications in electronic equipment such as laser heads, welders, power supplies, high-speed spindles, X-ray tubes, and semiconductor equipment. It is also well-suited for monitoring flow in bearings or gears including presses, rotating equipment, conveyors, machine tools, and robotics. Additionally, it serves processing and dispensing equipment needs in water purification, filtering, chemical additives, and beverage dispensing.

Robust brass and stainless steel construction ensures long service life. Fixed flow rate settings allow precise control within defined limits. Suitable for coolant and lubricant flow monitoring in portable machinery. High pressure and temperature ratings expand usability across demanding industrial sectors.

The FS-927 piston Flow Switch supports a wide range of industrial, laboratory, manufacturing, HVAC, water treatment, and agricultural applications. For top-quality flow control and monitoring solutions, browse our extensive range of Sensors and Switches at EnvMart.
