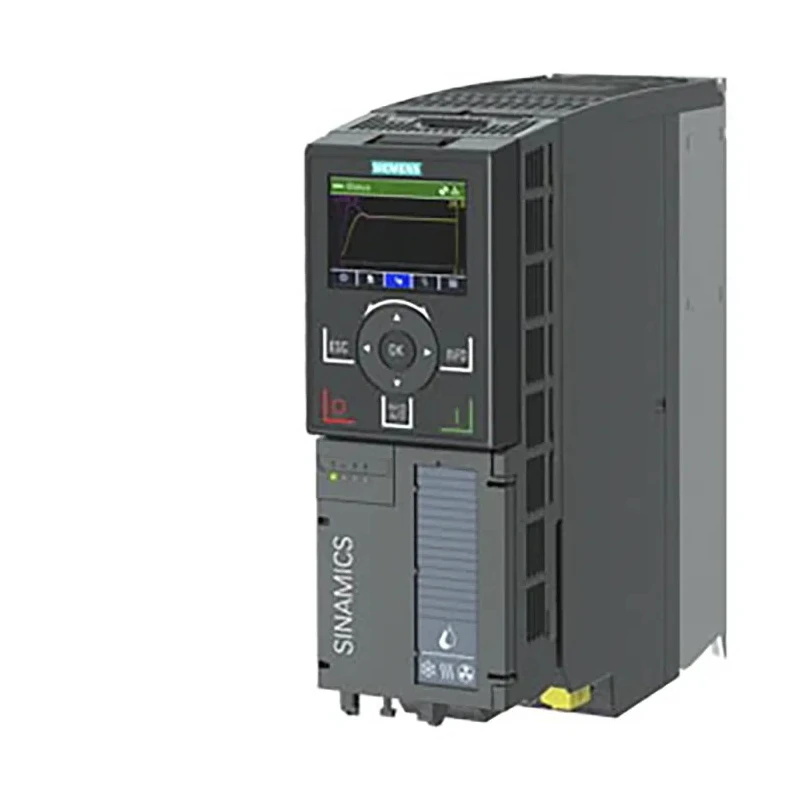

Siemens SINAMICS G120X Series 1.5 kW 3 Phase Inverter Drive, 480V 4.8 A, PID Control, Wall Mount 6SL3220-2YE14-0UF0
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Siemens |
| Model | 6SL3220-2YE14-0UF0 |
| IP Rating | IP20 |
| Drive Type | PID Control |
| Mount Type | Wall |
| Overall Length | 73mm |
| Series | SINAMICS G120X |
| Overall Width | 209mm |
| Power Rating | 1.5kW |
| Maximum Operating Temperature | +55°C |
| Output Frequency | 550Hz |
| Minimum Operating Temperature | -20°C |
| Number of Phases | 3 |
| Maximum Output Current | 4.8A |
| Standards/Approvals | CE Certified, cUL Recognized, EAC Certified, KCC, RCM, REACH, SEMI F47, UL Listed |
| Maximum Supply Voltage | 480V |
| Overall Depth | 232mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | AC Motor |
Key Features
- Operates at supply voltages from 380 V to 480 V.
- Delivers a maximum output current of 4.8 A for stable motor performance.
- Features PID control drive type for precise process regulation.
- Designed for wall mounting with IP20 protection rating.
- Compatible with AC motors and supports output frequencies up to 550 Hz.
- Operates reliably within a temperature range of -20 °C to +55 °C.
- Meets multiple international standards including CE, UL, cUL, EAC, and REACH.
- Energy-efficient and part of Siemens' Better World initiative aimed at reducing energy consumption.
Product Description
Siemens 6SL3220-2YE14-0UF0 SINAMICS G120X Series inverter drive is a high-performance frequency converter with a power rating of 1.5 kW, suitable for 3 phase AC motor control at supply voltages between 380 V and 480 V. This inverter drive utilizes PID control technology, ensuring precise regulation for various industrial applications including HVAC, water and wastewater management, and building infrastructure.
Its robust wall-mount design features an IP20 protection rating, making it reliable for stable operation in diverse environments. The drive supports output frequencies up to 550 Hz and can withstand operating temperatures from -20 °C to +55 °C. Compact physical dimensions (73 mm length, 209 mm width, 232 mm depth) save valuable control cabinet space.
Certified to numerous international standards such as CE, UL, cUL, EAC, KCC, RCM, REACH, SEMI F47, the SINAMICS G120X inverter drive also aligns with Siemens' Better World program focused on energy savings and sustainability. Its ease of installation and operation is enhanced by compatibility with the SINAMICS G120 Smart Access Module or operator panels such as BOP-2 and IOP-2.
This inverter drive is ideal for industrial automation systems, water treatment plants, HVAC systems, and other applications requiring reliable, efficient motor control. Siemens' product design ensures energy efficiency, long service life, and straightforward integration into existing systems.
Operates at supply voltages from 380 V to 480 V. Delivers a maximum output current of 4.8 A. PID control for precise regulation of motor speed and torque. Wall mount installation with IP20 rating for protection. Compatible with AC motor types.
Wide operating temperature range from -20 °C to +55 °C. Compact size reduces cabinet space requirements. Certified to CE, UL, and other international safety and quality standards. Part of Siemens' sustainability-focused Better World initiative.
Explore our catalog for additional Inverter Drives and accessories to expand your automation capabilities.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 1.5 kW, suitable for controlling 3 phase AC motors.
It delivers a maximum output current of 4.8 A for stable motor performance.
This unit operates at supply voltages ranging from 380 V to 480 V.
It supports output frequencies of up to 550 Hz, allowing for versatile motor control.
This inverter drive utilizes PID control technology for precise process regulation.
It has an IP20 protection rating, suitable for wall mounting in various environments.
The operating temperature range is from -20 °C to +55 °C, ensuring reliable performance in diverse conditions.
The dimensions are 73 mm in length, 209 mm in width, and 232 mm in depth, making it compact for control cabinets.
It is compatible with AC motors, making it suitable for various industrial applications.
This model is certified to multiple standards including CE, UL, cUL, EAC, KCC, RCM, REACH, and SEMI F47.
It is designed for wall mounting, providing flexibility in installation.
It is part of Siemens' Better World initiative, aimed at reducing energy consumption and promoting sustainability.
