SMC 15 mm Pneumatic Piston Rod Cylinder Single Acting Panel Mount Brass Body 50mm Length 15mm Stroke CJPB16-15H6Z

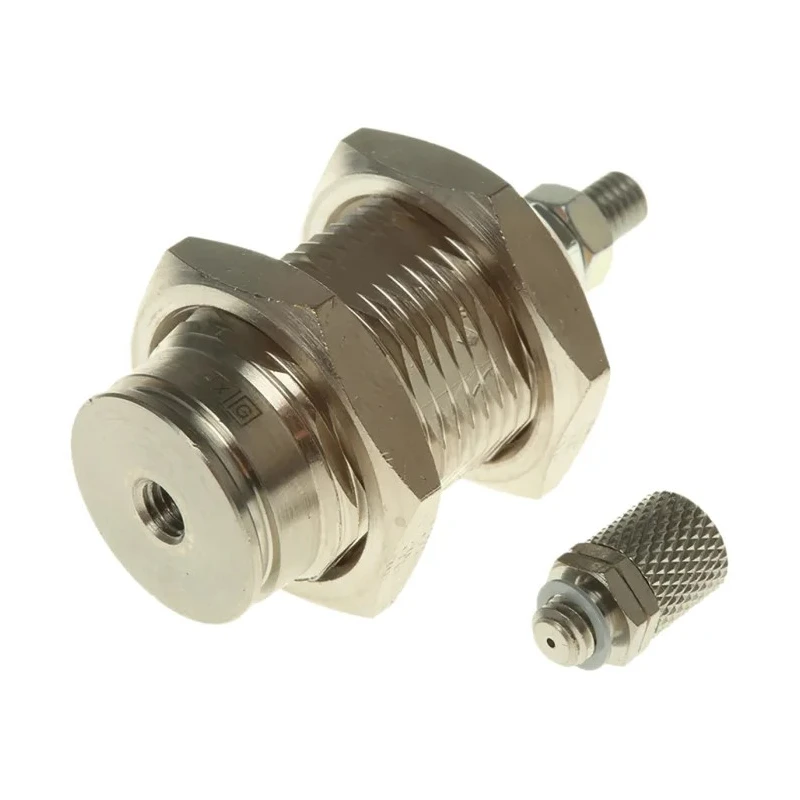

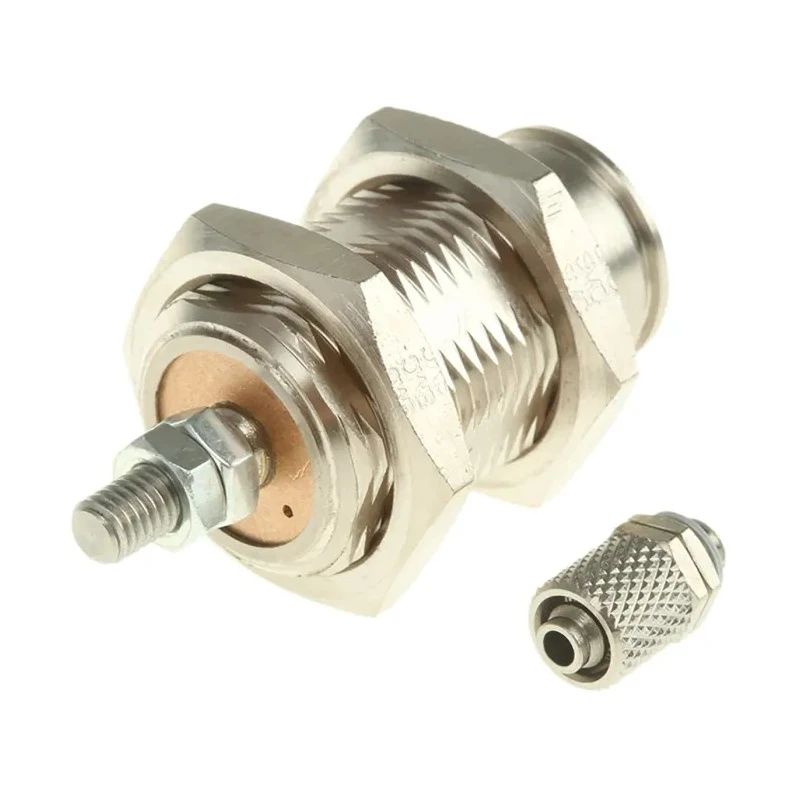

SMC CJPB16-15H6Z pneumatic piston rod cylinder is a high-quality, single acting actuator designed for precise and reliable pneumatic operations in industrial environments. This cylinder belongs to the CJP series and is manufactured in Japan, reflecting SMC's commitment to performance and durability.

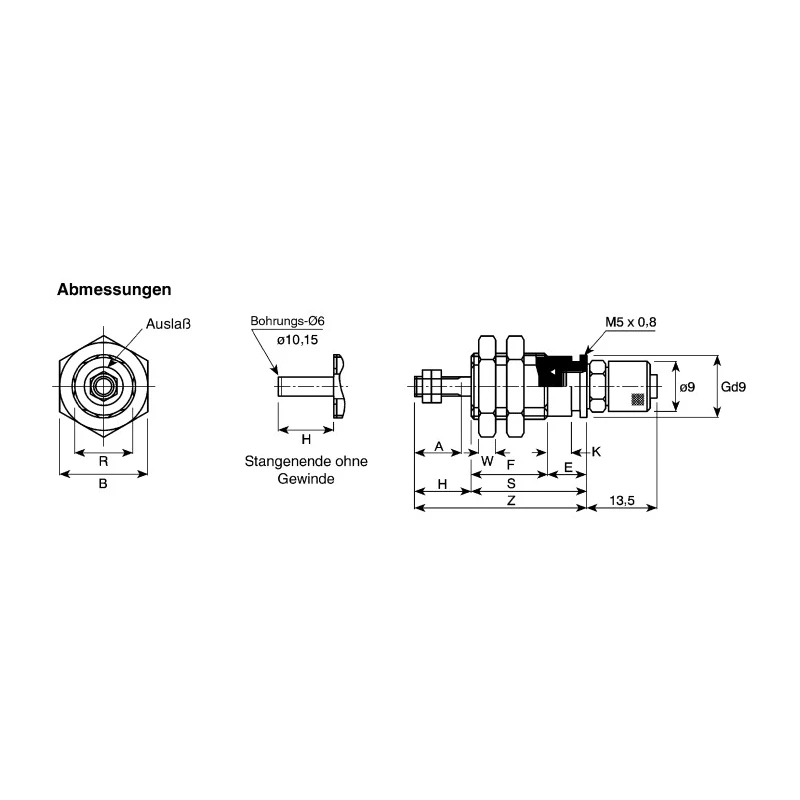

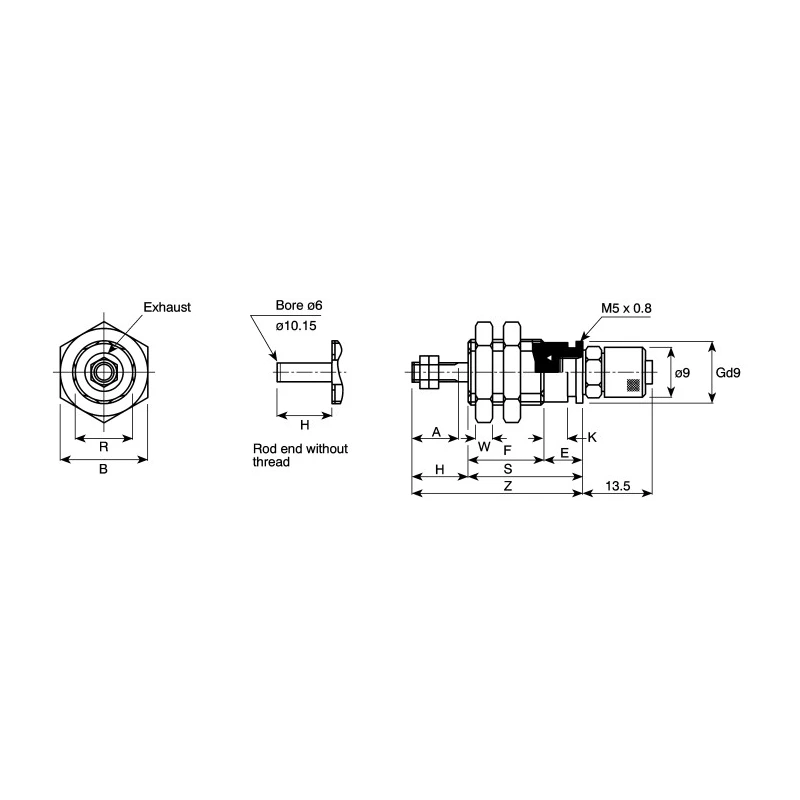

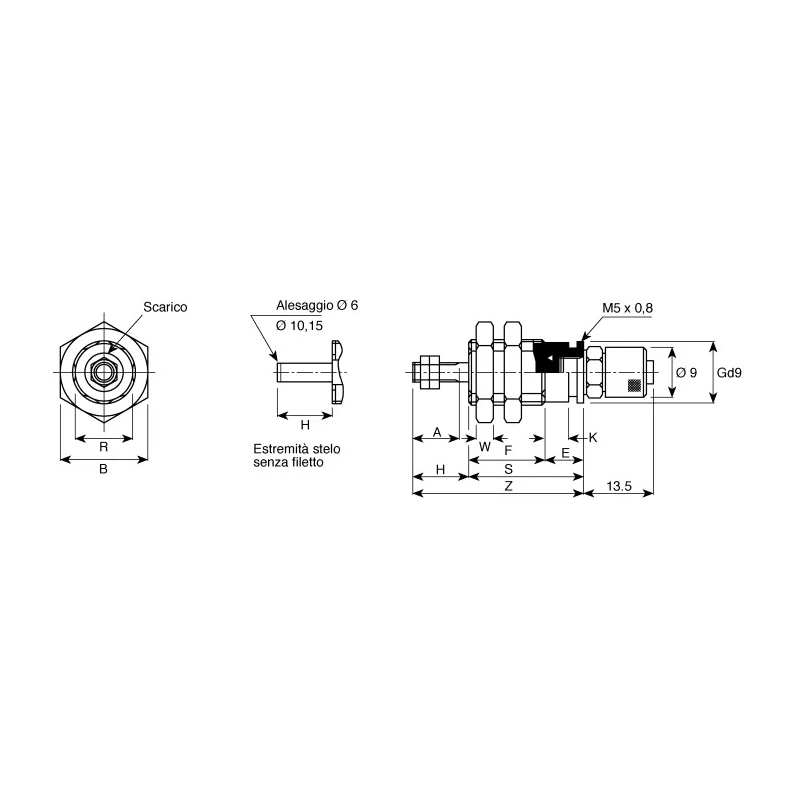

The cylinder features a 15 mm bore and 15 mm stroke length with an overall length of 50 mm, making it compact and suited for panel mounting. Its brass body construction ensures corrosion resistance and longevity under various operational conditions.

Employing a spring return rod type, the cylinder provides dependable single acting motion without the need for external lubrication, thus simplifying maintenance. The piston rod thread follows metric standards for easy integration into pneumatic assemblies.

Designed to operate within a maximum temperature of 70 degrees Celsius and proof pressure of 10.5 bar, this cylinder performs effectively under demanding pneumatic pressures up to 7 bar, with an operating range starting from 1.5 bar for 15 mm diameter versions. Stroke tolerance is tightly controlled with +1.0 mm precision.

Its non-cushioned design suits applications requiring quick and straightforward actuation without damping. Typical industrial use cases include automation lines, fluid power systems, and machinery where compact, reliable motion control is essential.

The body is constructed from durable brass material. It offers a stroke length of 15 mm and total length of 50 mm. The piston rod uses a spring return for reliable operation. This cylinder does not require lubrication and has non-cushioned action.

The operating temperature range is up to 70 degrees Celsius. Body and rod thread are metric standard. Proof pressure rating is 10.5 bar and maximum operating pressure 7 bar. Stroke tolerance is +1.0 mm, ensuring precise actuation.

This Pneumatic Piston Rod Cylinder enhances machine performance in manufacturing, industrial automation, and fluid power tool applications. Explore more pneumatic actuators and components in the SMC series on EnvMart for comprehensive fluid power solutions.
