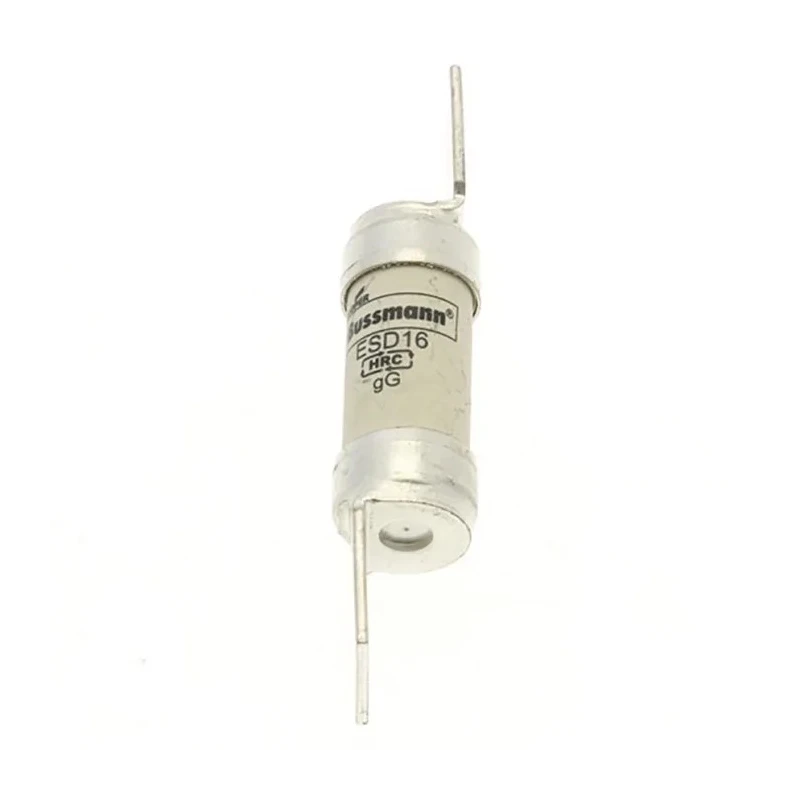

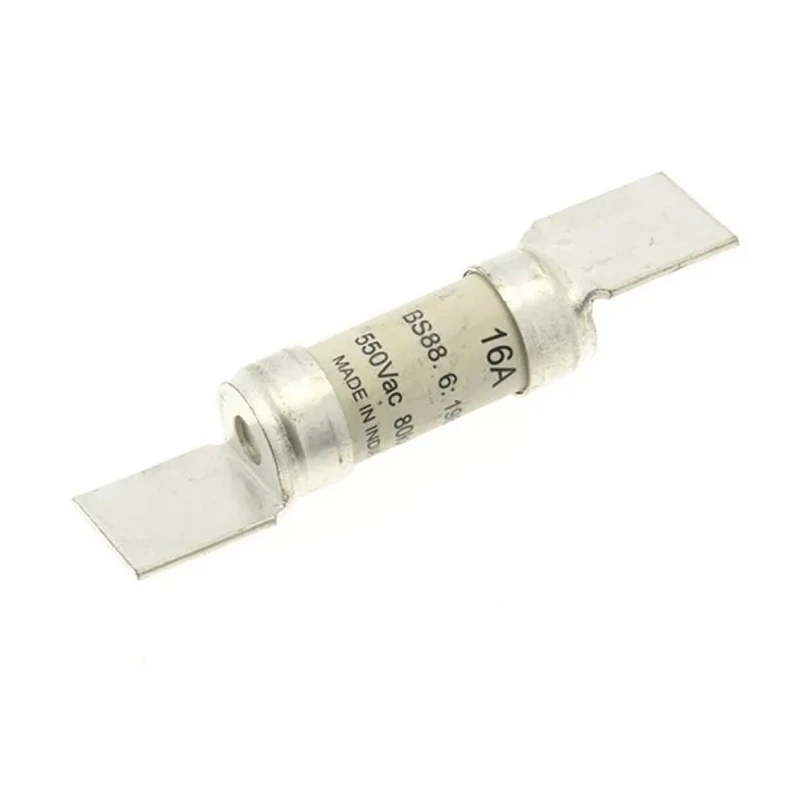

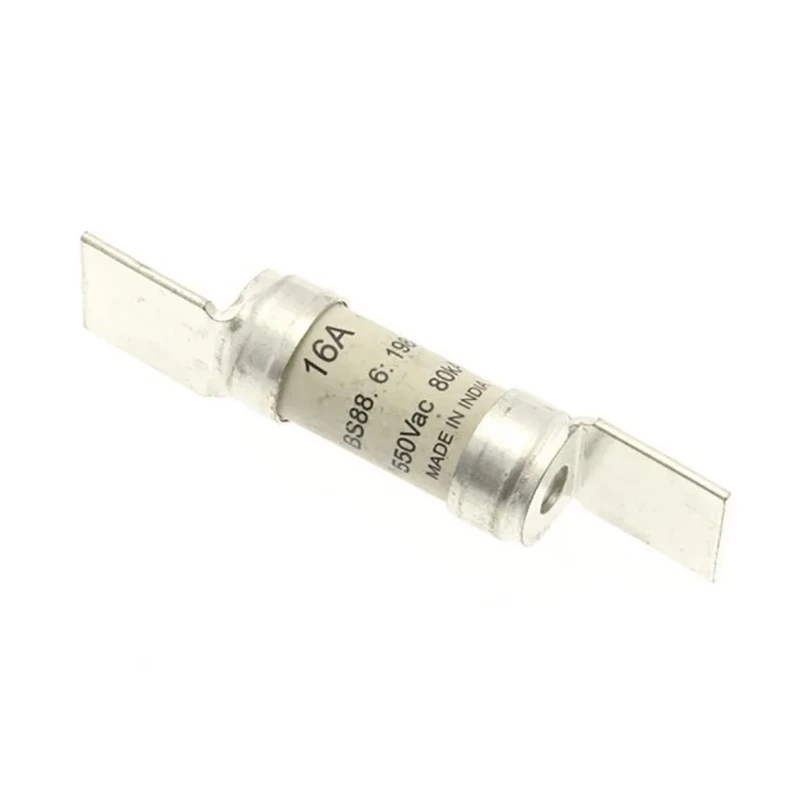

Eaton 16A Bolted Tag Fuse F2 550V AC High Rupture Capacity Offset Tag ESD16
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V ac |
| Diameter | 13.8mm |
| Brand | Eaton |
| Height | 15mm |
| Length | 35.5mm |
| Model | ESD16 |
| Overall Length | 68mm |
| Current Rating | 16A |
| Series | ESD |
| Standards/Approvals | RoHS, CE, IEC 60269 |
| Fuse Size | F2 |
| Fixing Centres | 68 mm |
| Tag Width | 15mm |
| Tag Orientation | Offset |
Key Features
- The fuse has a current rating of 16A suitable for low voltage applications.
- It features a fuse size F2 with a length of 35.5 mm and overall length of 68 mm.
- The voltage rating is 550V AC ensuring compatibility with standard industrial power systems.
- Its design includes an offset tag and 15 mm tag width for easy installation and identification.
- High rupture capacity ensures safety under fault conditions.
- Complies with RoHS, CE, and IEC 60269 standards guaranteeing quality and safety.
- Fixing centres measure 68 mm for mounting stability.
- The fuse diameter is 13.8 mm and height is 15 mm, compact for space efficiency.
Product Description
Eaton ESD16 16A Bolted Tag Fuse F2 550V AC is a high-quality fuse designed explicitly for reliable protection in industrial electrical systems. Operating at 550V AC and carrying a current rating of 16A, this fuse is tailored for low voltage power distribution and cable protection in diverse industrial applications.
The fuse size F2 comes with dimensions optimized for compact installation: length 35.5 mm, overall length 68 mm, height 15 mm, and a diameter of 13.8 mm. It features a 15 mm wide tag with an offset tag orientation, facilitating easy mounting using 68 mm fixing centres. The fuse speed is rated as F to ensure high-speed disconnection under fault conditions.
This boost in safety is critical for industrial environments where electrical load surges can cause equipment damage.
Compliance with international standards such as RoHS, CE, and IEC 60269 guarantees the fuse's adherence to environmental and safety regulations, making it suitable for global industrial use. Its selective coordination ratio of 1:1:6 between minor and major fuses enhances graded protection strategies in complex electrical installations.
Current rating of 16A for general industrial power protection. Fuse size F2 with compact dimensions for space-saving installations. Voltage rating at 550V AC suitable for low voltage applications. Offset tag design with 15 mm width for ease of installation.
High rupture capacity providing enhanced safety and fault resistance. Conforms to RoHS, CE, and IEC 60269 standards for quality and compliance. Fixing centres of 68 mm for secure mounting.
This Eaton bolted Tag Fuse is an essential component in industrial electrical systems, providing efficient and reliable protection of circuits against overloads and short circuits. It is highly recommended for use in power distribution networks and cable protection setups within industrial, manufacturing, and commercial electrical infrastructure.
Explore more Eaton electrical protection solutions and components at EnvMart to ensure safety and efficiency in your electrical installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton ESD16 fuse has a current rating of 16A, making it suitable for low voltage applications.
This model has a voltage rating of 550V AC, ensuring compatibility with standard industrial power systems.
The fuse has a length of 35.5 mm, an overall length of 68 mm, a height of 15 mm, and a diameter of 13.8 mm.
The offset tag design with a 15 mm width facilitates easy installation and identification, allowing for efficient mounting.
The fixing centres for mounting the Eaton ESD16 fuse measure 68 mm, providing stability during installation.
This fuse complies with RoHS, CE, and IEC 60269 standards, ensuring quality and safety in its design.
The fuse size of this model is F2, which is optimized for compact installation in electrical systems.
The high rupture capacity ensures safety under fault conditions, providing enhanced protection for electrical systems.
The tag orientation of this fuse is offset, which aids in its installation and identification.
This fuse is designed for reliable protection in industrial electrical systems, particularly in power distribution and cable protection.
The series designation of this model is ESD, indicating its specific line within Eaton's fuse offerings.
The fuse speed is rated as F, ensuring high-speed disconnection under fault conditions.
