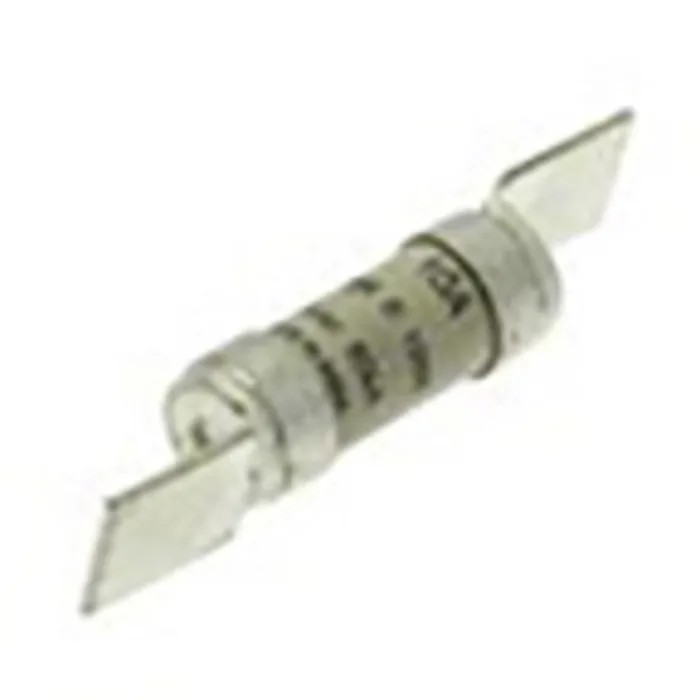

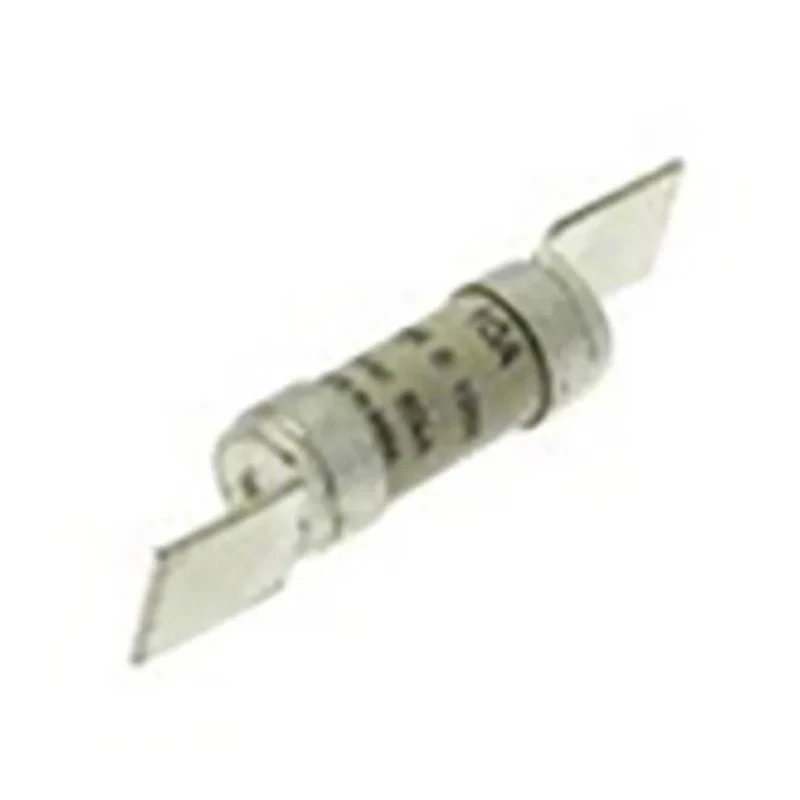

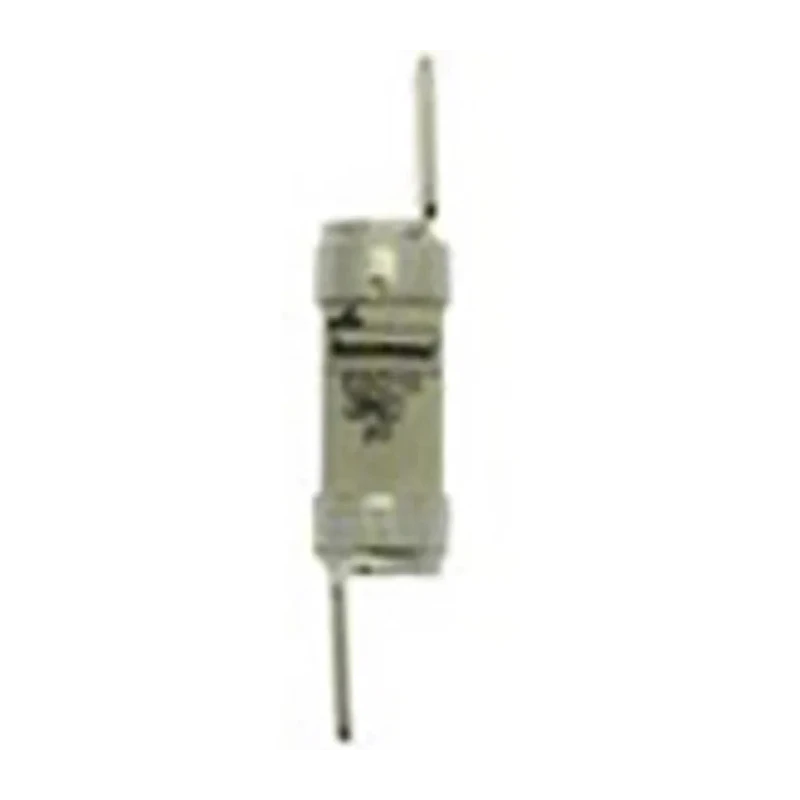

Eaton 10A Bolted Tag Fuse F2 550V AC High Rupture Capacity Offset Tag ESD10

Free Delivery in India | Lowest Global Shipping Charges

Eaton 10A Bolted Tag Fuse F2 550V AC High Rupture Capacity Offset Tag ESD10

Name: Eaton 10A Bolted Tag Fuse F2 550V AC High Rupture Capacity Offset Tag ESD10
Brand: Eaton
SKU: 155633



Category Tag Fuses Brand Eaton Condition New

Specifications

Country of Origin	India
Voltage	550V ac
Diameter	13.8mm
Brand	Eaton
Height	14mm
Length	35.5mm
Model	ESD10
Width	14mm
Overall Length	68mm
Current Rating	10A
Series	ESD
Standards/Approvals	IEC 60269-2, RoHS, CE
Fuse Size	F2
Fixing Centres	68 mm
Tag Width	15mm
Tag Orientation	Offset

Key Features

This bolted tag fuse features a 68 mm fixing centre for secure installation.
The fuse size is F2 with high rupture capacity to safely interrupt fault currents.
It includes an offset tag orientation with a tag width of 15 mm for easy identification and connection.
The fuse speed is classified as F, suitable for fast-acting circuit protection.
Key dimensions include an overall length of 68 mm, diameter of 13.8 mm, width of 14 mm, and height of 14 mm.
Conforming to IEC 60269-2 standards with RoHS and CE compliance.
Designed specifically for power distribution and cable protection in industrial applications.
Manufactured in India and part of the ESD series, formerly known as Bussmann fuses.

Product Description

The Eaton ESD10 is a 10 Amp bolted tag fuse designed for low voltage AC applications up to 550V. It is engineered for the protection of industrial power distribution systems and cable circuits, ensuring reliable and safe circuit interruption.

This fuse features a high rupture capacity and a fast fuse speed class F, capable of handling short circuit currents effectively. The F2 size fuse link with a 68 mm fixing centre and offset tag orientation allows for easy installation and identification in electrical panels.

With an overall length of 68 mm and compact form factor (diameter 13.8 mm, width and height 14 mm), this fuse is suitable for various industrial and commercial low voltage protection applications. It complies with international IEC 60269-2 standards and meets RoHS and CE directives, ensuring compliance with environmental and safety regulations.

The Eaton ESD10 fuse ensures good peak let-through current limitation, providing coordination to protect both minor and major electrical components within a circuit. Its robust design and quality manufacturing support consistent performance under demanding conditions.

This bolted tag fuse features a 68 mm fixing centre for secure installation. The fuse size is F2 with high rupture capacity to safely interrupt fault currents. It includes an offset tag orientation with a tag width of 15 mm for easy identification and connection.

The fuse speed is classified as F, suitable for fast-acting circuit protection. Key dimensions include an overall length of 68 mm, diameter of 13.8 mm, width of 14 mm, and height of 14 mm. Conforming to IEC 60269-2 standards with RoHS and CE compliance.

Designed specifically for power distribution and cable protection in industrial applications. Manufactured in India and part of the ESD series, formerly known as Bussmann fuses.

This Eaton bolted tag fuse is ideal for use in industrial automation, distribution boards, motor protection, HVAC systems, and manufacturing equipment. It offers reliable circuit protection critical to minimizing downtime and equipment damage.
