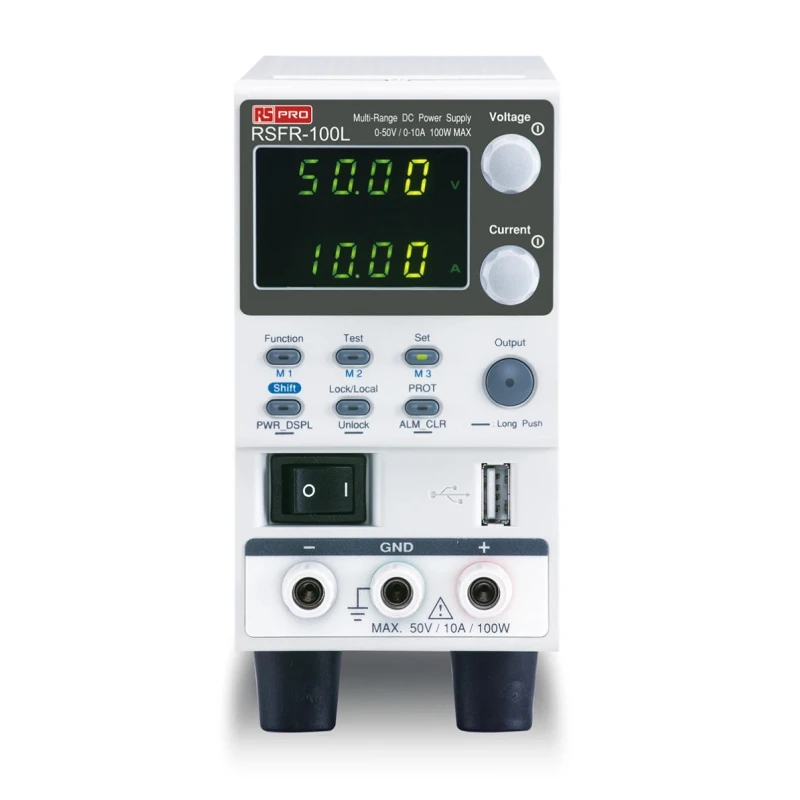

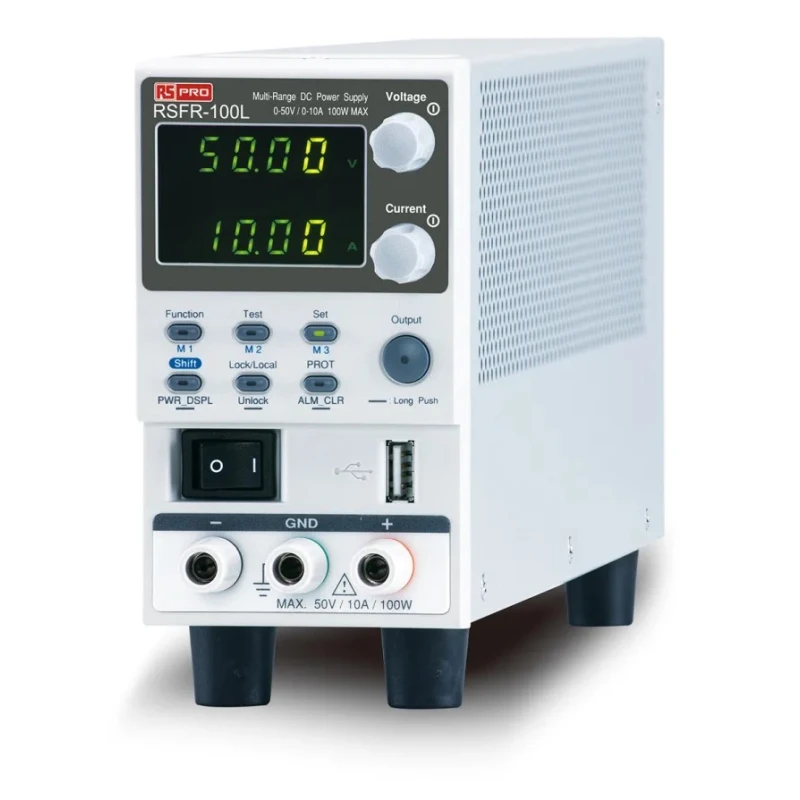

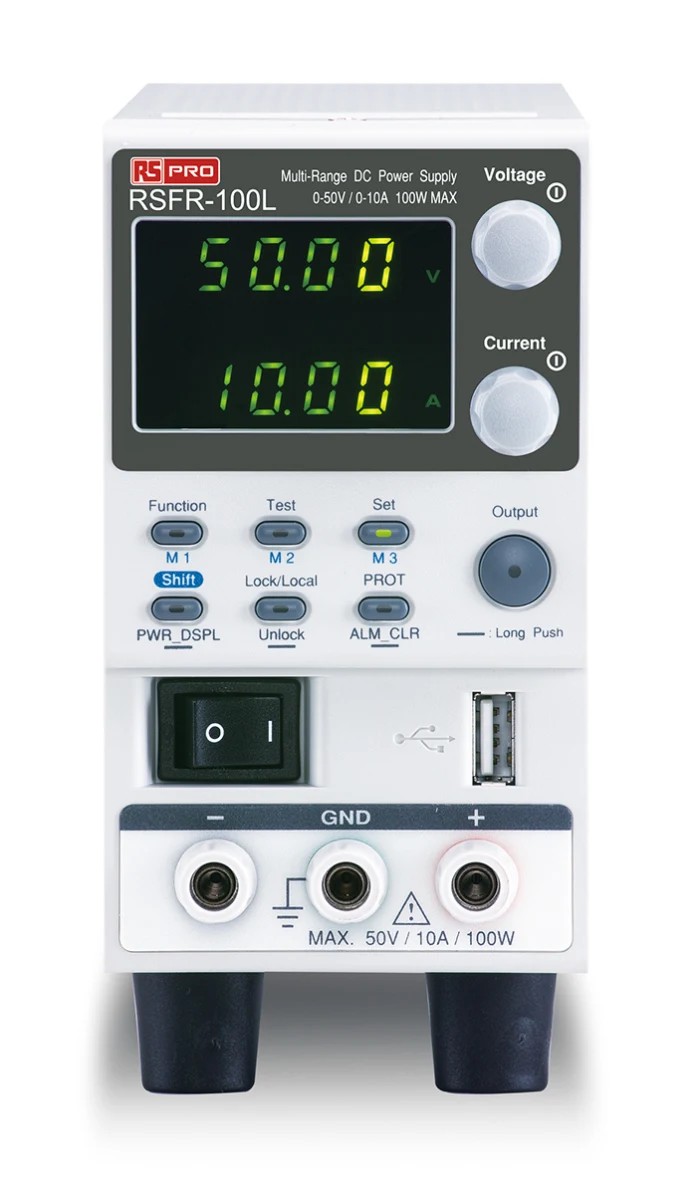

RS PRO Digital Bench Power Supply 1-Output 0 V to 50 V 100 W 10 A Max 180-4807

RS PRO 180-4807 Digital Bench Power Supply is a high-performance, fanless DC power supply delivering 100 W of power with a single output ranging from 0 V to 50 V and a maximum current of 10 A. Designed for quiet operation and longevity, the fanless construction uses natural convection cooling to eliminate noise and prevent dust ingress.

The power supply offers constant power output with fivefold multi-range voltage and current operation, allowing users to tailor the output current and voltage within rated power limits to suit diverse test requirements. It features a preset memory function for saving frequently used settings and an output ON/OFF delay function to improve safety and testing accuracy.

Advanced control modes such as CV (constant voltage) and CC (constant current) priority provide specialized functions to accommodate different load characteristics. The adjustable slew rate enhances voltage and current transitions, minimizing overshoot and ensuring smooth output.

Robust protections including over-voltage protection (OVP), over-current protection (OCP), AC fail detection, and over-temperature protection (OTP) safeguard both the device and connected equipment. The unit supports both front panel and rear panel output terminals, facilitating quick lead changes and convenient installation in rack mount assemblies.

Connectivity options include built-in USB and RS-232/485 interfaces, with optional LAN and GPIB for network integration. Remote sensing and external analog control functions enable precise voltage regulation and remote operation.

Typical applications span industrial manufacturing, laboratory testing, HVAC equipment development, and other electrical measurement scenarios requiring reliable, accurate DC power supply. The device complies with RoHS standards, promoting environmental safety.

Dimensions are 124 mm height, 70 mm width, and 300 mm depth, making it suitable for benchtop use without occupying excessive space. The RS PRO 180-4807 is a versatile and durable power supply solution for professional testing environments.

Explore more RS PRO bench power supplies and measuring instruments on EnvMart for your industrial and laboratory needs. Fanless design employing natural convection cooling for silent and clean operation. Fivefold multi-range constant power output for flexible voltage and current adjustment.

Preset memory function to quickly recall frequently used settings. Output ON/OFF delay function for increased safety and test precision. CV and CC priority modes to suit different load characteristics during testing. Adjustable slew rate for smooth voltage and current transitions.

Advanced protection features including OVP, OCP, AC fail detection, and OTP. Dual output terminals on front and rear panels for ease of use and installation. Built-in USB, RS-232/485 interfaces with optional LAN and GPIB connectivity.

Remote sensing and external analog control/monitor functions for precise operations.
