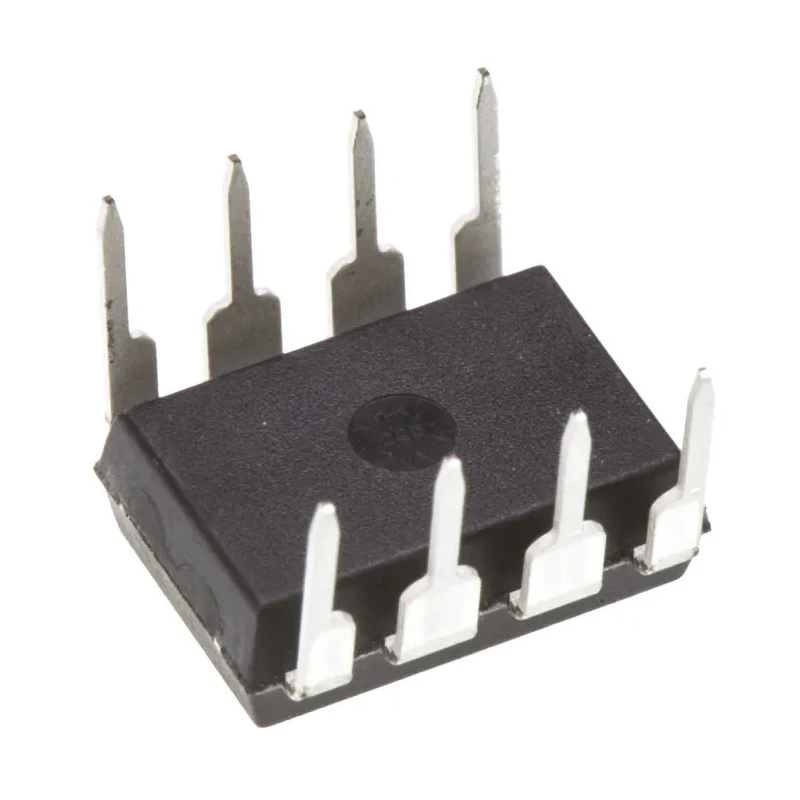

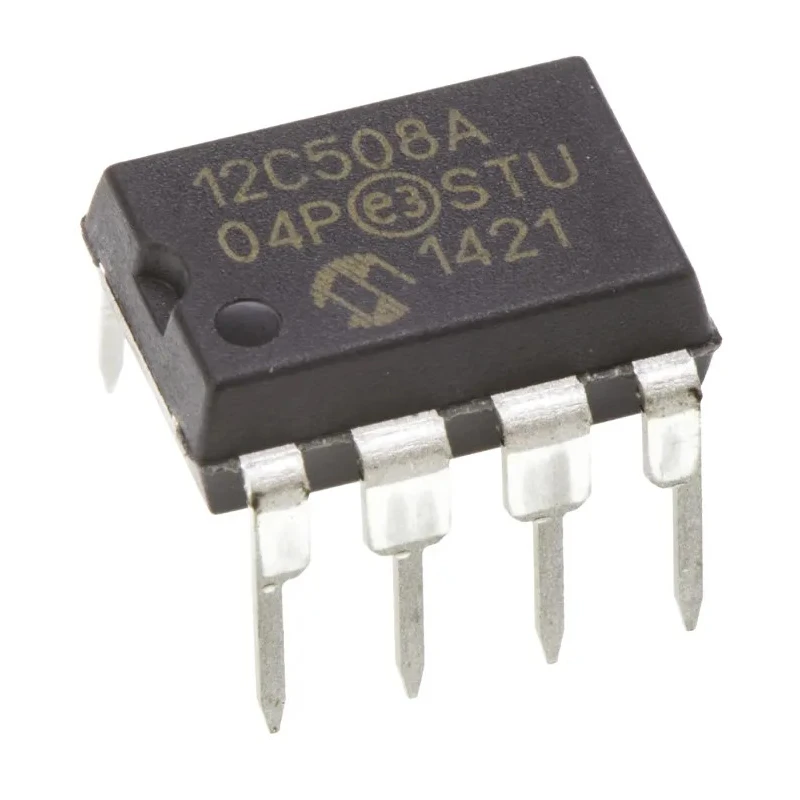

Microchip 8-bit PIC Microcontroller PIC12C508A-04/P 4 MHz 0.75kB EPROM 8-Pin PDIP

Microchip PIC12C508A-04/P is a powerful 8-bit PIC microcontroller featuring 0.75kB EPROM program memory and operating at up to 4 MHz clock frequency. Packaged in an 8-pin PDIP through-hole mount type, the device is designed for easy integration in embedded applications requiring compact form factors.

This microcontroller supports a maximum supply voltage of 5.5V and a minimum of 3V, with 5 programmable input/output pins capable of sourcing or sinking 25mA each. It contains a 25-bit RAM and includes one timer, providing essential resources for timing and control functionalities in industrial, laboratory, and consumer electronic devices.

The PIC12C508A-04/P uses a RISC instruction set architecture with an EPROM program memory type, offering simplicity with just 33 single-word instructions for swift learning and programming. Its operating temperature spans from 0°C to 70°C, making it suitable for moderate environments.

Mechanical dimensions are compact with a length of 9.78mm, width of 6.6mm, and height of 3.17mm, providing flexibility for PCB layouts. The device is RoHS compliant and meets ISO 9001 automotive standards, ensuring adherence to environmental and quality requirements.

This microcontroller is highly suitable for embedded system designs, control units, and educational electronic projects where efficient 8-bit processing is required. Power dissipation is limited to 700mW, emphasizing its suitability for low-power and energy-conscious applications.

8-pin PDIP package with through-hole mount. 0.75kB EPROM program memory and 25-bit RAM size. Operates at up to 4 MHz clock frequency. 5 programmable I/O pins with 25mA source/sink capability. One timer included for precise timing requirements.

Operating temperature from 0°C to 70°C. Complies with RoHS and ISO 9001 standards. Maximum power dissipation of 700mW. Explore the Microcontroller category on EnvMart for more advanced models and compatible components.
