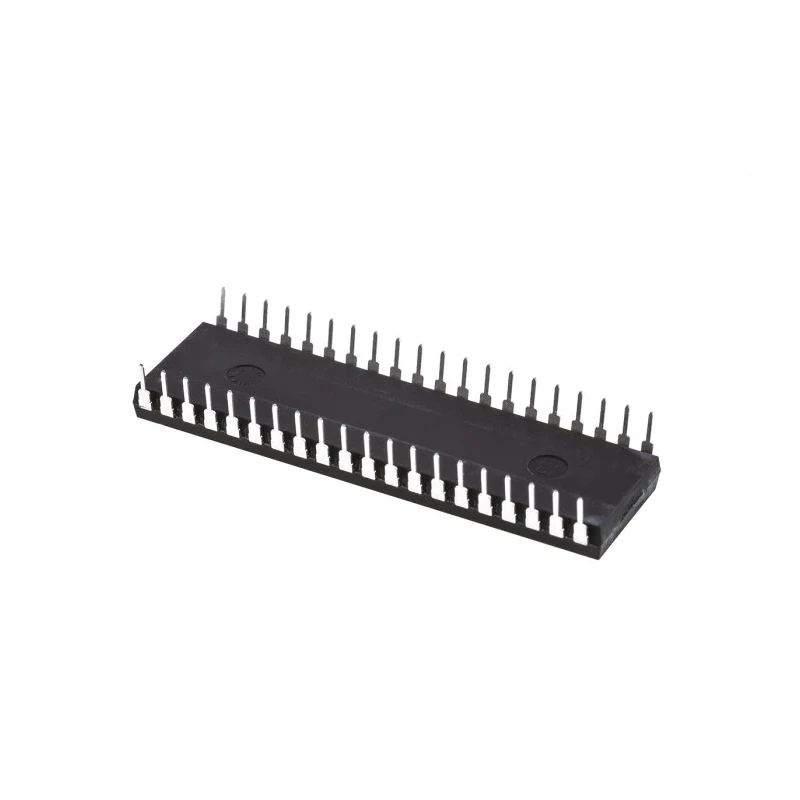

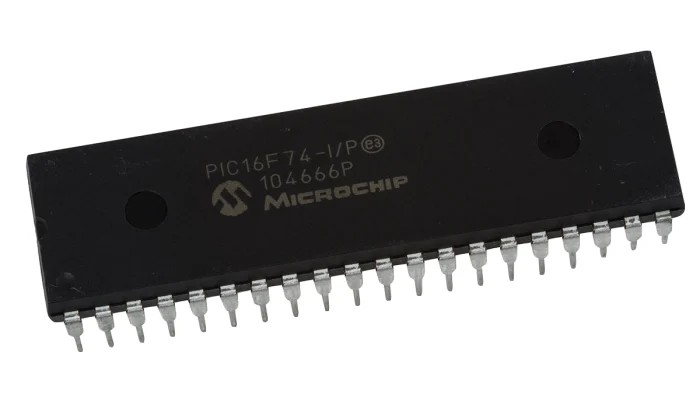

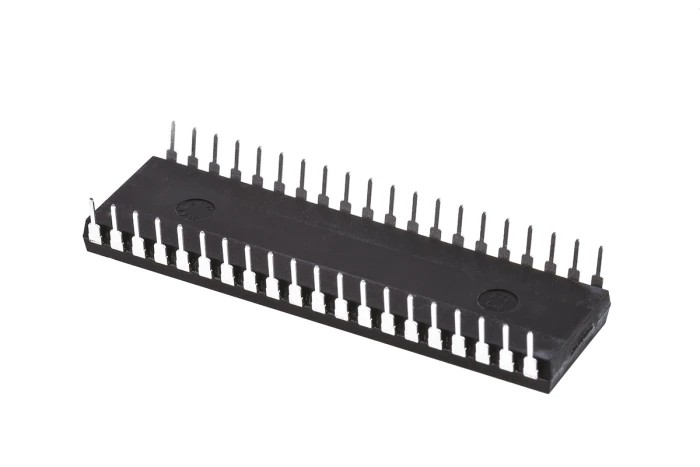

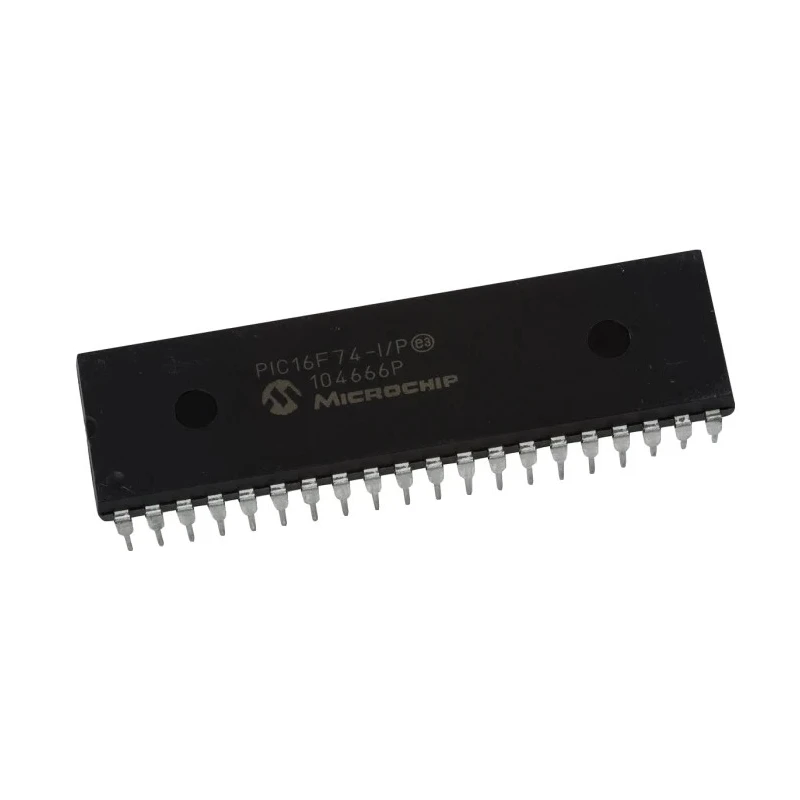

Microchip 8-bit PIC Microcontroller 7kB FLASH 20 MHz 40-Pin PDIP PIC16F74-I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.06mm |
| Length | 52.45mm |
| Model | PIC16F74-I/P |
| Width | 14.22mm |
| Mount Type | Through Hole |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 192bit |
| Pin Count | 40 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 7kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 33 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 8 Bit |
| Program Memory Type | FLASH |
| Microchip, 8bit PIC, PIC16C Microcontroller, 4MHz, 2K EPROM, 40-Pin PDIPBrand | Microchip |
Key Features
- This microcontroller comes in a 40-pin PDIP package suitable for through-hole mounting.
- It features a PIC core and operates with a data bus width of 8 bits.
- The device includes 192 bits of RAM and 7kB of program memory using FLASH technology.
- It supports up to 33 programmable I/O pins and includes 3 timers for versatile timing functions.
- The operating voltage range is from 2V to a maximum of 5.5V, with power dissipation up to 1W.
- Designed for a temperature range between -40°C and 85°C for industrial and commercial applications.
- Includes peripherals such as 8 channels of 8-bit ADCs, two Capture/Compare/PWM modules, and serial communication interfaces including SPI, I2C, and USART.
- The MCU offers In-Circuit Serial Programming (ICSP) and In-Circuit Debug (ICD) for efficient development and debugging.
Product Description
Microchip PIC16F74-I/P is an 8-bit microcontroller featuring a 7kB FLASH program memory and a maximum clock frequency of 20 MHz, housed in a 40-pin PDIP package designed for through-hole mounting. It utilizes Microchip's PIC architecture, providing efficient and flexible embedded system performance.
This microcontroller operates with an 8-bit data bus and incorporates 192 bits of RAM, making it suitable for a variety of control and automation tasks. The operating voltage ranges from 2V to 5.5V, with a maximum power dissipation of 1W, ensuring energy-efficient operation.
Key features include 33 programmable I/O pins, three timers, and multiple analog and digital peripherals. The device includes 8 channels of 8-bit analog-to-digital converters (ADCs), two Capture/Compare/PWM (CCP) modules, and serial communication interfaces such as SPI, I2C, and USART, enabling versatile connectivity options.
This PIC microcontroller supports In-Circuit Serial Programming (ICSP) and In-Circuit Debug (ICD), which facilitate streamlined programming and debugging processes for developers, reducing time to market for embedded projects.
This MCU has a RISC architecture with 35 instructions and an 8-level hardware stack, providing fast and efficient code execution up to 5 MIPS. Designed to operate over a wide temperature range from -40°C to 85°C, it suits demanding industrial and automotive environments.
The microcontroller's compact 40-pin PDIP package measures approximately 52.45mm length, 14.22mm width, and 4.06mm height, supporting reliable through-hole PCB assembly. Applications include embedded control systems, automotive electronics, industrial automation, and educational development boards.
Part of the PIC16F series, it offers a broad range of peripheral options and flexible integration capabilities.
Microchip products are well-regarded in the electronics industry for reliability and comprehensive developer support. The PIC16F74-I/P microcontroller is a preferred choice for designers seeking proven, robust 8-bit MCU performance.
Discover more industrial-grade Microcontrollers and semiconductor products at EnvMart to empower your next engineering project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz.
It features a program memory size of 7kB using FLASH technology.
This microcontroller supports up to 33 programmable I/O pins.
The operating voltage range is from 2V to a maximum of 5.5V.
The dimensions are approximately 52.45mm in length, 14.22mm in width, and 4.06mm in height.
It includes serial communication interfaces such as SPI, I2C, and USART.
It is designed to operate within a temperature range of -40°C to 85°C.
This microcontroller includes three timers for versatile timing functions.
The RAM size is 192 bits.
It comes in a 40-pin PDIP package suitable for through-hole mounting.
Yes, it supports In-Circuit Serial Programming (ICSP) for efficient development.
The maximum power dissipation is up to 1W.
