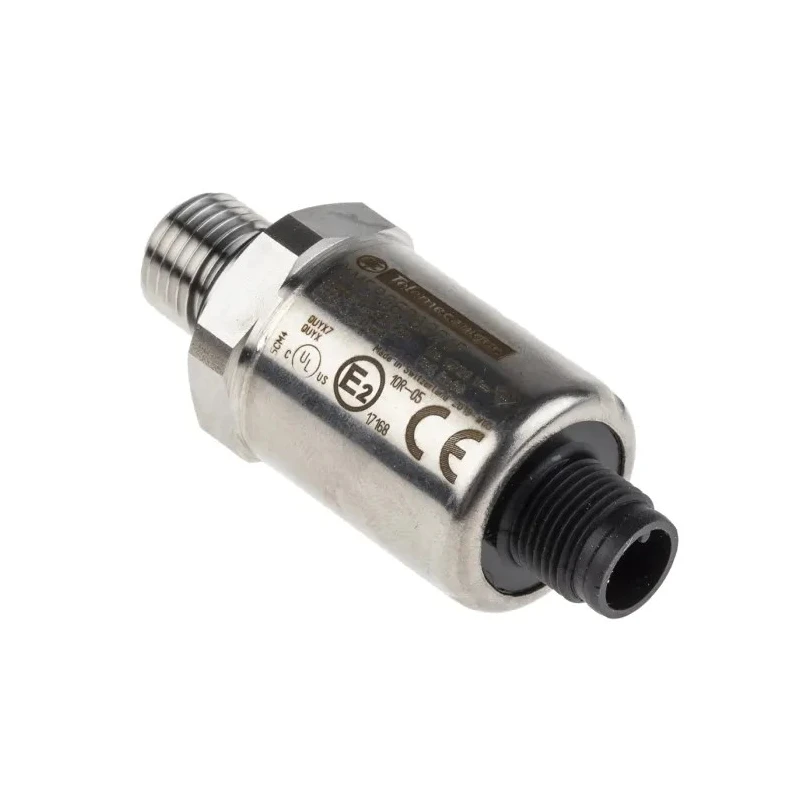

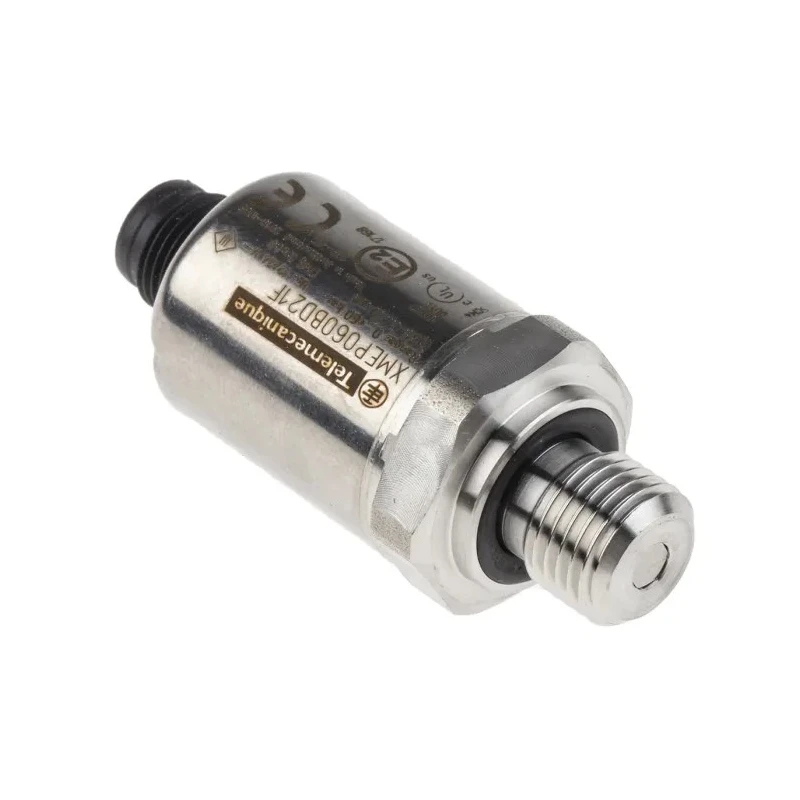

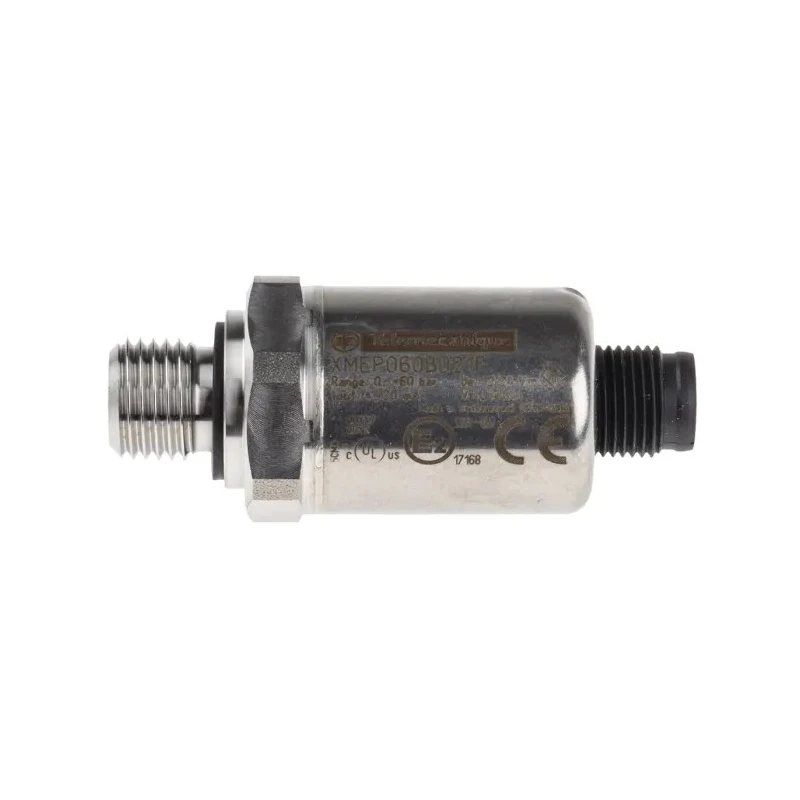

Telemecanique Sensors OsiSense XM Series Pressure Sensor 0 to 60 bar Analogue Output 9-36V XMEP060BD21F
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.5 % |
| Brand | Telemecanique Sensors |
| Response time | 2ms |
| Model | XMEP060BD21F |
| IP Rating | IP65, IP67, IP69K |
| Mount Type | Screw |
| Housing Material | 316L Stainless Steel, Fluorocarbon, Fluoropolymer |
| Output type | Analogue |
| Series | OsiSense XM |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | 4-Pin M12 Male Connector |
| Maximum Pressure Measurement | 60bar |
| Minimum Pressure Measurement | 0bar |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 9V |
| Media Measured | Air, Fresh Water, Hydraulic Oil |
Key Features
- Measures pressure of air, fresh water, and hydraulic oil reliably.
- Features a 4-pin M12 male connector for secure electrical connections.
- Equipped with 316L stainless steel housing and fluoropolymer seals for durability.
- Operates across a wide temperature range from -40°C to 100°C.
- IP65, IP67, and IP69K rated for excellent protection against dust and water.
- Provides ±0.5% accuracy over the measuring range.
- Designed for screw mounting to ensure stable installation.
- Complies with multiple international standards including EN/IEC 61326-2-3 and UL 61010-1.
Product Description
Telemecanique Sensors XMEP060BD21F OsiSense XM Series Pressure Sensor is engineered for precise pressure measurement from 0 to 60 bar, providing analogue output suitable for industrial and automation applications. The sensor features a robust 316L stainless steel housing coupled with fluorocarbon and fluoropolymer materials to withstand harsh environments and media including air, fresh water, and hydraulic oil.
Designed to operate reliably between -40°C and 100°C, this sensor supports a wide supply voltage range of 9V to 36V and includes a 4-pin M12 male connector to ensure a secure electrical interface. Its pressure accuracy of ±0.5% and fast 2 ms response time make it ideal for process control, temperature testing facilities, and industrial measurement tasks.
The unit is IP65, IP67, and IP69K rated, offering excellent protection against dust ingress and water immersion, enabling durable performance in challenging conditions. The screw mount type facilitates stable installation in automation and control gear setups.
This pressure sensor complies with international standards such as EN/IEC 61326-2-3, ISO 14982, UL 61010-1, ECE 10R-5, EN 13309, and ISO 13766, as well as certifications including CE, cULus, E2, and more, ensuring safety and quality assurance.
Measures air, fresh water, and hydraulic oil pressure accurately. Sturdy 316L stainless steel housing with fluoropolymer seals for longevity. Wide operating temperature range from -40°C to 100°C supports diverse environments.
Multiple IP ratings (IP65, IP67, IP69K) ensure resistance to dust and water. Screw mounting design provides secure and reliable installation. Complies with multiple recognized industry certifications and standards for quality and safety.
The Telemecanique Sensors OsiSense XM Series Pressure Sensor is a reliable choice for industrial automation, hydraulic systems, process control, and temperature testing applications. Its durable materials and comprehensive certifications make it suitable for heavy-duty use in manufacturing, HVAC, and water treatment industries.
Explore more high-quality Pressure Sensors and related sensors in EnvMart’s wide catalog for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Telemecanique Sensors OsiSense XM Series Pressure Sensor measures pressure from 0 to 60 bar.
This model is designed to measure air, fresh water, and hydraulic oil.
It provides an accuracy of ±0.5% over its measuring range.
The response time of this unit is 2 milliseconds.
It operates with a supply voltage ranging from 9V to 36V.
This model operates reliably within a temperature range of -40°C to 100°C.
It features a 4-pin M12 male connector for secure electrical connections.
The sensor is designed for screw mounting, ensuring stable installation.
It is rated IP65, IP67, and IP69K, providing excellent protection against dust and water.
The housing is made of 316L stainless steel, with fluoropolymer seals for durability.
It complies with multiple standards including EN/IEC 61326-2-3 and UL 61010-1.
It is suitable for industrial automation, hydraulic systems, process control, and temperature testing applications.
