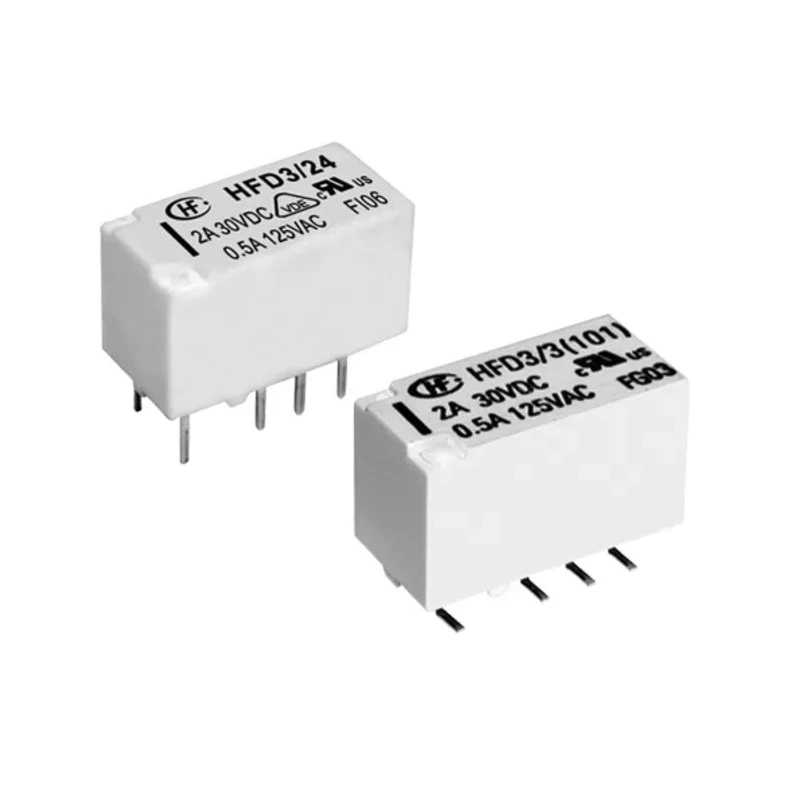

Hongfa Europe GMBH PCB Signal Relay 12V DC Coil 2A DPDT HFD3/12-L1
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 9mm |
| Length | 15mm |
| Model | HFD3/12-L1 |
| Width | 7.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HFD3 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | PCB Terminal |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1028Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 100mW |
| Switching Power | 90W |
| Outline Dimensions | (15.0 x 7.5 x 9.0) mm |
Key Features
- Operates at coil voltage of 12V DC for efficient switching.
- Features double-pole double-throw (DPDT) contact configuration.
- Supports switching current up to 2 amperes for reliable circuit control.
- Compact dimensions of 15.0 x 7.5 x 9.0 mm allow PCB mounting.
- Silver alloy contact material ensures durability and conductivity.
- Maintains contact resistance of 100 milliohms for stable performance.
- Designed for operating temperatures between -40°C and 85°C.
- Coil resistance of 1028 ohms with coil power consumption of 100 milliwatts.
Product Description
Hongfa Europe GMBH HFD3/12-L1 PCB Signal Relay is a precision electrical component designed for efficient signal switching in electronic devices and circuit boards. It features a 12V DC coil voltage and a double-pole double-throw (DPDT) contact configuration, providing reliable and versatile switching functions suitable for industrial, automation, and electronic manufacturing applications.
This relay supports a switching current of up to 2A and switching voltages of 277V AC and 220V DC, enabling stable performance across a range of voltages and loads. The relay's compact size (15.0 x 7.5 x 9.0 mm) and PCB mounting make it ideal for tight circuit layouts while maintaining excellent electrical characteristics.
The relay contacts are made from durable silver alloy, ensuring long service life and consistent conductivity. It operates reliably under harsh environmental conditions, withstanding temperatures from -40°C to 85°C. The device is also RoHS compliant, demonstrating adherence to environmental and safety regulations.
This product is suitable for use in industrial automation controls, signal conditioning, HVAC systems, manufacturing equipment, and other applications requiring precise relay switching. It offers surge withstand voltage capacity up to 2500VAC and comes in both SMT and DIP types. It embodies high quality and reliability expected from Hongfa Europe GMBH.
Operates at coil voltage of 12V DC for efficient switching. Features double-pole double-throw (DPDT) contact configuration. Supports switching current up to 2 amperes for reliable circuit control. Compact dimensions of 15.0 x 7.5 x 9.0 mm allow PCB mounting.
Silver alloy contact material ensures durability and conductivity. Maintains contact resistance of 100 milliohms for stable performance. Designed for operating temperatures between -40°C and 85°C. Coil resistance of 1028 ohms with coil power consumption of 100 milliwatts.
Switching power capacity of 90 watts suitable for various electronic applications. RoHS compliant for environmental safety and regulatory adherence. Explore more products in the Signal Relay category for advanced electrical and automation solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 12V DC, which is essential for its efficient switching functionality.
It features a double-pole double-throw (DPDT) contact configuration, allowing for versatile switching options.
This relay supports a maximum switching current of up to 2 amperes, making it suitable for reliable circuit control.
The dimensions of this relay are 15.0 mm in length, 7.5 mm in width, and 9.0 mm in height, making it compact for PCB mounting.
The contacts of this relay are made from silver alloy, which ensures good conductivity and durability.
It is designed to operate within a temperature range of -40°C to 85°C, allowing it to function in various environmental conditions.
The coil resistance of this relay is 1028 ohms, which is important for its power consumption and operation.
The coil power consumption is 100 milliwatts, which is typical for efficient relay operation.
This model supports switching voltages of 277V AC and 220V DC, making it versatile for different applications.
The relay maintains a contact resistance of 100 milliohms, which contributes to its stable performance.
Yes, this relay is RoHS compliant, indicating that it adheres to environmental and safety regulations.
The maximum switching power capacity of this relay is 90 watts, suitable for various electronic applications.
