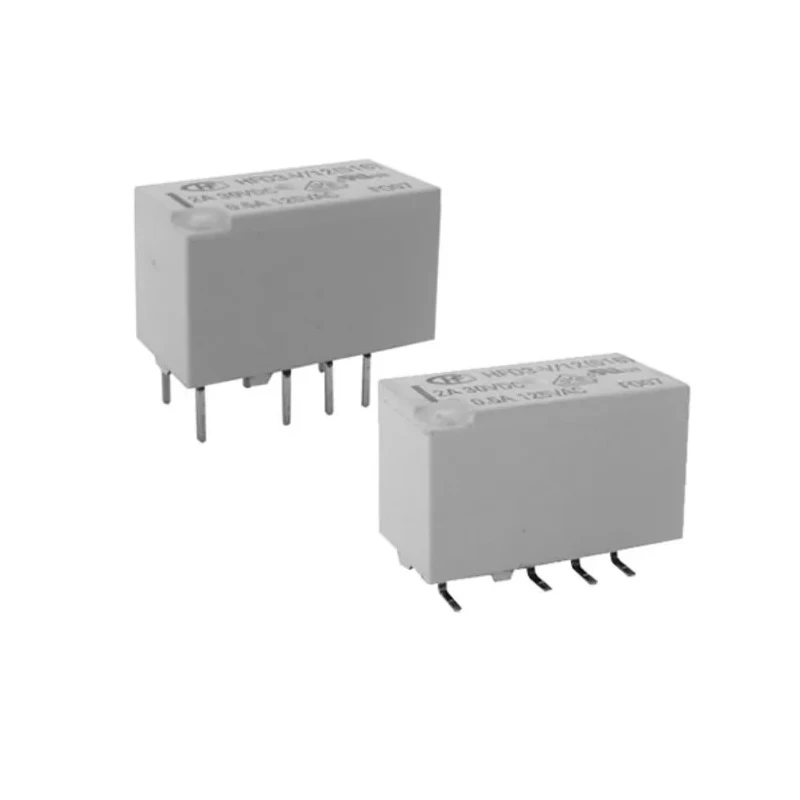

Hongfa Europe GMBH PCB Signal Relay 5V DC Coil 2A DPDT HFD3-V/5
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 9.2mm |
| Length | 15mm |
| Model | HFD3-V/5 |
| Width | 7.5mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | HFD3-V |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | PCB Terminal |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 125Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 140mW |
Key Features
- The relay features a compact design ideal for PCB mounting applications.
- Supports switching AC voltage up to 277V and DC voltage up to 220V.
- Operates efficiently within a temperature range of -40°C to 85°C.
- Gold plated contacts ensure low contact resistance of 100mΩ for enhanced conductivity.
- Coil power consumption is low at 140mW, optimizing energy usage.
- Meets RoHS standards ensuring compliance with environmental safety.
- Constructed with a durable silver alloy contact system for extended durability.
- The relay offers a surge withstand voltage rating of 6000VAC for robust performance.
Product Description
Hongfa Europe GMBH HFD3-V/5 PCB Signal Relay is a subminiature, DPDT non-latching electromagnetic relay designed for PCB mounting with a 5V DC coil and 2A switching current capacity.
This Signal Relay supports switching AC voltages up to 277V and DC voltages up to 220V, making it suitable for a wide range of industrial and electronic control applications. Its operational temperature range spans from a minimum of -40°C up to a maximum of 85°C, allowing it to perform reliably under harsh conditions.
The relay coil consumes a low power of 140mW, contributing to energy-efficient designs. Gold plated contacts reduce contact resistance to 100mΩ ensuring consistent electrical performance.
Constructed with silver alloy contacts, it delivers high contact capacity and durability. It also withstands surge voltages up to 6000VAC and provides an isolation voltage of 6KVAC between coil and contacts for safety and noise immunity.
This component complies with RoHS environmental standards and is manufactured in China. Standard PCB terminal mount allows for easy integration on printed circuit boards. The relay supports power switching up to 60W in DC applications.
Its single side stable type construction offers reliable switching action. Typical uses include control devices, automotive electronics, industrial automation, and signal conditioning circuits. Hongfa Europe GMBH products epitomize quality and reliability in industrial and commercial relay applications.
Explore EnvMart’s comprehensive catalog for more high-quality relays and signal conditioning components suitable for electronics manufacturing, laboratory use, and industrial automation.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 2A, suitable for various applications.
It can switch AC voltages up to 277V and DC voltages up to 220V.
The relay operates with a coil voltage of 5V DC.
The coil power consumption is low at 140mW, which helps optimize energy usage.
This unit has dimensions of 15mm in length, 7.5mm in width, and 9.2mm in height.
It features a DPDT (Double Pole Double Throw) contact configuration.
It operates efficiently within a temperature range of -40°C to 85°C.
This model is designed for PCB (Printed Circuit Board) mounting.
The contact resistance is 100mΩ, ensuring enhanced conductivity.
The relay features gold plated contacts, which contribute to low contact resistance.
It meets RoHS standards, ensuring compliance with environmental safety regulations.
The relay has a surge withstand voltage rating of 6000VAC, providing robust performance.
