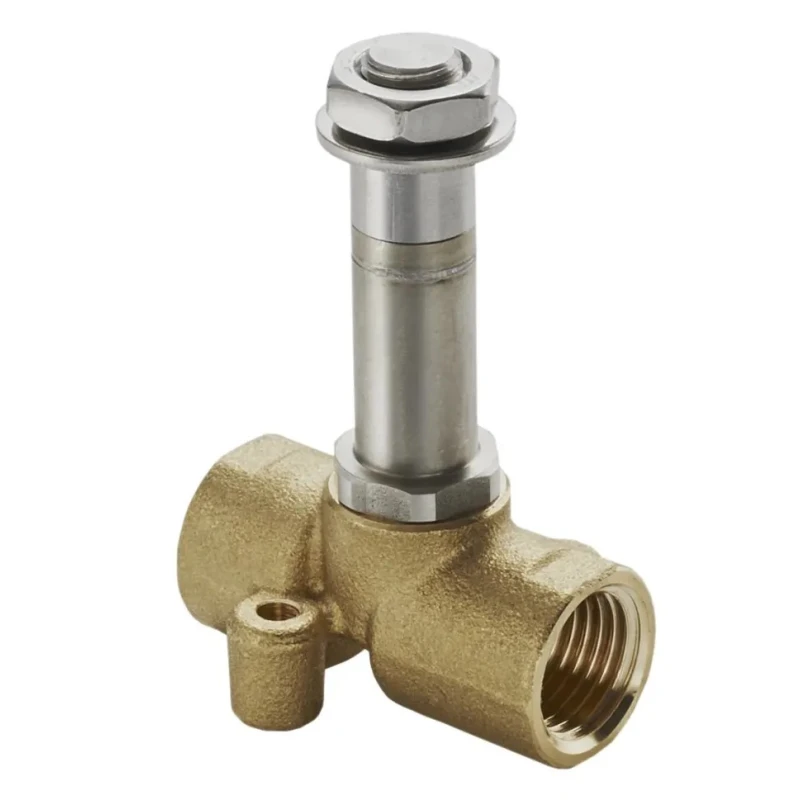

RS PRO Solenoid Valve 2 Port Normally Open 24V DC Brass Body 1/4 in Inlet, 1/8 in Outlet 176-2052
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | RS PRO |
| Body Material | Brass |
| Maximum Operating Pressure | 9.5 bar |
| Outlet Connection Type | Threaded |
| Model | 176-2052 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 90°C |
| Minimum Operating Temperature | -10°C |
| Orifice Diameter | 2mm |
| Supply Voltage | 24V dc |
| Inlet Port Size | 1/4 in |
| Inlet Thread Standard | ISO 228 |
| Outlet Port Size | 1/8 in |
| Flow Factor Kv | 0.09m³/h |
Key Features
- The valve features a brass body material which ensures corrosion resistance and durability.
- It has a 2-port configuration with an inlet port size of 1/4 inch and outlet port size of 1/8 inch, both threaded.
- The default valve position is normally open enabling flow control through electromagnetic actuation.
- It operates efficiently on a 24V DC supply voltage with solenoid electromagnetic operation.
- The valve can withstand a maximum operating pressure of 9.5 bar and temperatures ranging from -10°C up to 90°C.
- The orifice diameter is 2 mm with a flow factor Kv of 0.09 m³/h, allowing precise control of gases or liquids.
- The inlet and outlet threads conform to the ISO 228 standard for compatibility.
- Designed and manufactured in Italy, the valve meets high industrial standards but does not hold specific hazardous area certification.
Product Description
The RS PRO 176-2052 solenoid valve is a high-quality 2 port, normally open valve designed for precise fluid and gas flow control in industrial and mechanical systems. It operates at 24V DC and uses electromagnetic force to modulate the flow, offering energy-efficient control and extended product lifespan.
Constructed with a corrosion-resistant brass body, this valve ensures excellent durability in demanding environments. The valve accommodates inlet and outlet threaded connections sized at 1/4 inch and 1/8 inch respectively, conforming to the ISO 228 thread standard, facilitating worldwide compatibility with standard piping systems.
The valve is rated for maximum operating pressure of 9.5 bar and can operate reliably within a temperature range of -10°C to +90°C, making it suitable for diverse industrial applications, including pneumatic systems, fluid power control, and gas pipelines.
Featuring a 2 mm orifice diameter and a flow coefficient (Kv) of 0.09 m³/h, it provides controlled and consistent flow rates for sensitive pressure systems. Its normally open default valve position makes it appropriate for fail-safe operations where flow is maintained when de-energized.
This solenoid valve is manufactured in Italy and complies with recognized industrial standards, although it does not carry hazardous area certification, which should be considered in explosion-risk environments.
The valve’s robust brass body resists corrosion and wear over time. Threaded G-series male connections enable easy installation into piping configurations. Operates on 24V DC supply with electromagnetic solenoid actuation.
Maximum pressure rating of 9.5 bar supports high-pressure industrial systems. Temperature range from -10°C to +90°C allows operation in variable environments. Flow factor Kv of 0.09 m³/h ensures precise fluid control. Orifice diameter of 2 mm for controlled flow passage.
Complies with ISO 228 thread standard for inlet and outlet ports. Suitable for industrial, pneumatic, HVAC, and fluid power applications.
Choose the RS PRO 176-2052 solenoid valve to ensure reliable flow control and long-term durability in your industrial systems. Browse more Solenoid Valves on EnvMart for a comprehensive selection from trusted brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 9.5 bar.
It operates on a supply voltage of 24V DC.
The inlet port size is 1/4 inch and the outlet port size is 1/8 inch.
The orifice diameter of this model is 2 mm.
It can operate reliably within a temperature range of -10°C to +90°C.
The flow factor Kv is 0.09 m³/h.
The inlet and outlet threads conform to the ISO 228 standard.
The default position of this valve is normally open, allowing flow when de-energized.
It is manufactured in Italy.
The body material of this valve is brass, which ensures corrosion resistance.
This model has a 2-port configuration.
It is suitable for various industrial applications, including pneumatic systems and fluid power control.
