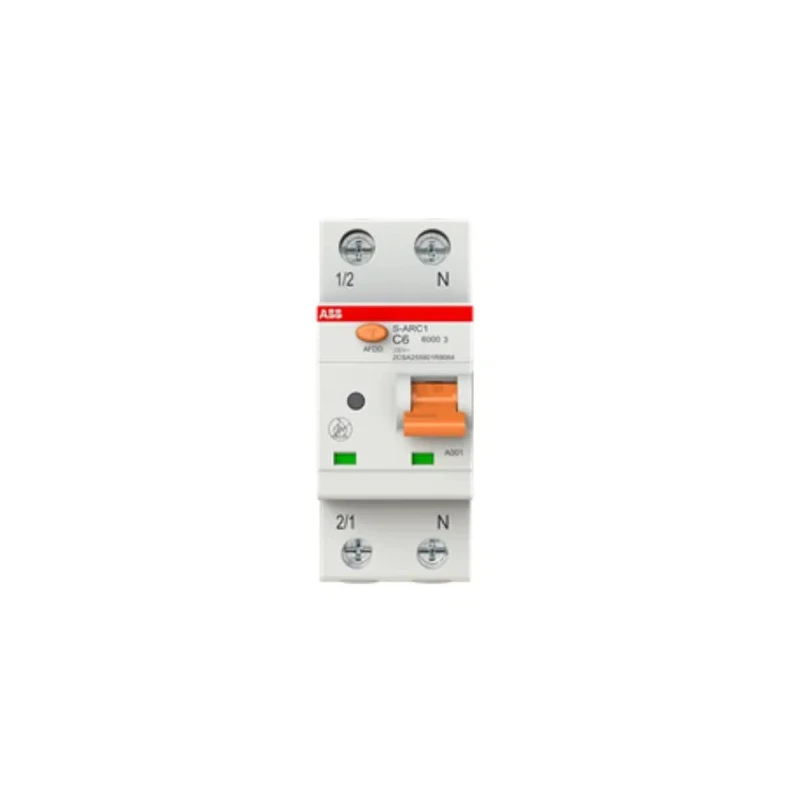

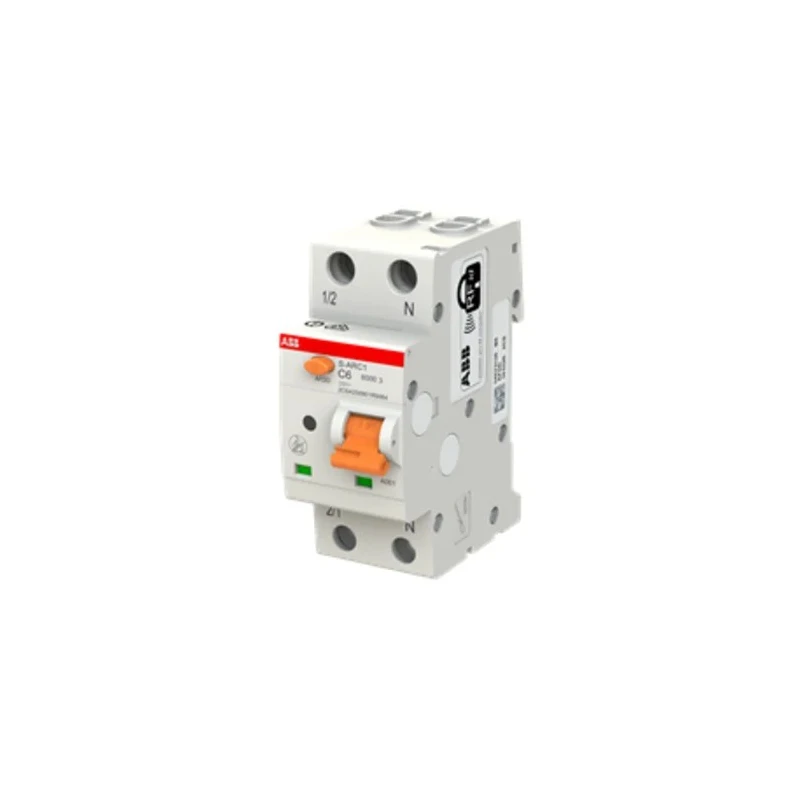

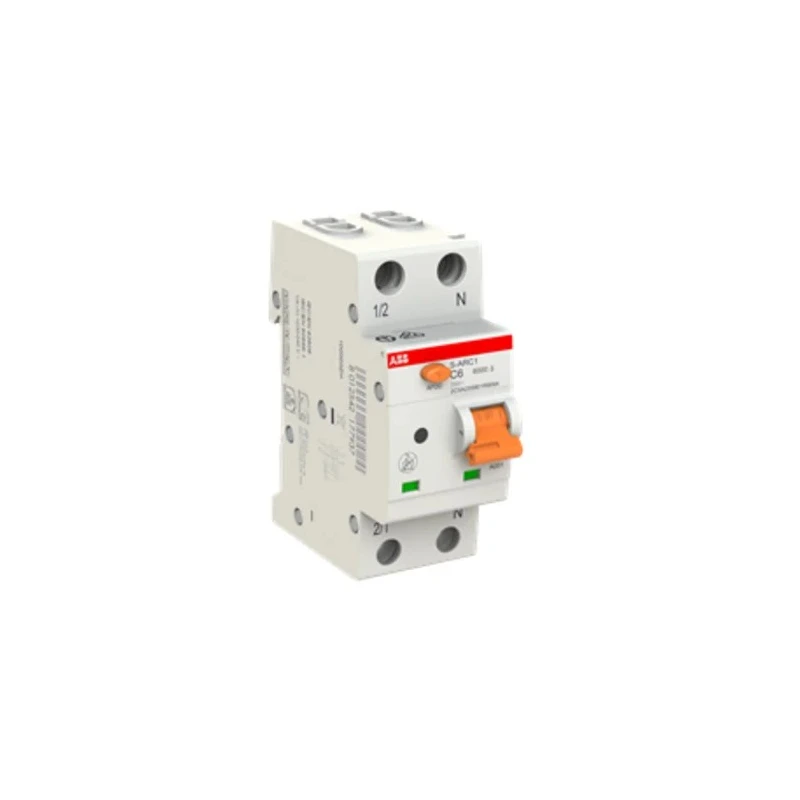

ABB Miniature Circuit Breaker, 1-Pole, 6A, Type C Tripping Characteristics, 240V AC, 6 kA Breaking Capacity ARC1

ABB ARC1 Miniature Circuit Breaker, model ARC1, is a high-quality 1-pole device engineered for domestic, commercial, and industrial electrical circuits requiring robust short circuit and overload protection. It features a 6A current rating and Type C tripping characteristics that enable reliable operation under typical inrush currents from inductive loads such as motors and transformers, while effectively preventing damage by tripping during fault conditions.

Operating at a rated AC voltage of 240V, this MCB offers a breaking capacity of 6 kA, ensuring it can safely interrupt high fault currents without damage, thus enhancing electrical safety and reliability in installations.

The breaker is designed for efficient installation and space-saving DIN rail mounting. Its compact dimensions include a 35mm width, 85mm height, and 69mm depth. The screw terminal type ensures robust and secure electrical connections that resist loosening over time, improving long-term circuit integrity.

The toggle switch reset actuator facilitates quick and easy manual reset of the breaker without the need for tools. Its thermal magnetic trip mechanism provides precise protection by combining thermal response for overloads and magnetic action for short circuits.

ABB ARC1 Miniature Circuit Breaker conforms to IEC/EN 60898-1 and IEC/EN 60947-2 standards, demonstrating compliance with international electrical safety and performance norms. The IP20 and IP40 ingress protection ratings allow use in environments where protection against solid objects and some moisture ingress is required.

This MCB is well-suited for a range of applications including residential electrical panels, industrial machinery circuits, manufacturing assembly lines, and home automation systems requiring reliable circuit protection with quick response to faults.

This circuit breaker operates at 240V AC and features a breaking capacity of 6 kA. The Type C tripping curve ensures effective protection under moderate inductive loads and short circuits. It is designed for easy DIN rail mounting with a compact form factor for space efficiency.

Screw terminal connections provide secure and durable wiring. The toggle switch reset actuator allows convenient manual resetting after trips. Built to IEC/EN 60898-1 and IEC/EN 60947-2 standards for safety and performance.

IP20 and IP40 rated for protection against solid objects and limited ingress of moisture. Thermal magnetic tripping mechanism delivers precise overload and short circuit protection. Explore the complete range of ABB circuit breakers and electrical protection devices at EnvMart for dependable industrial and residential electrical safety solutions.
