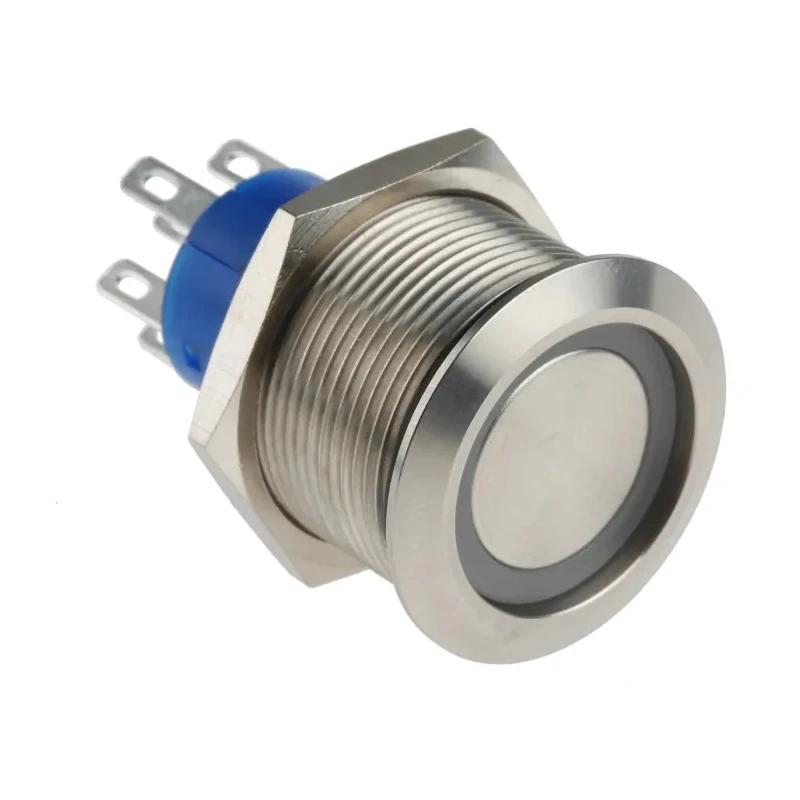

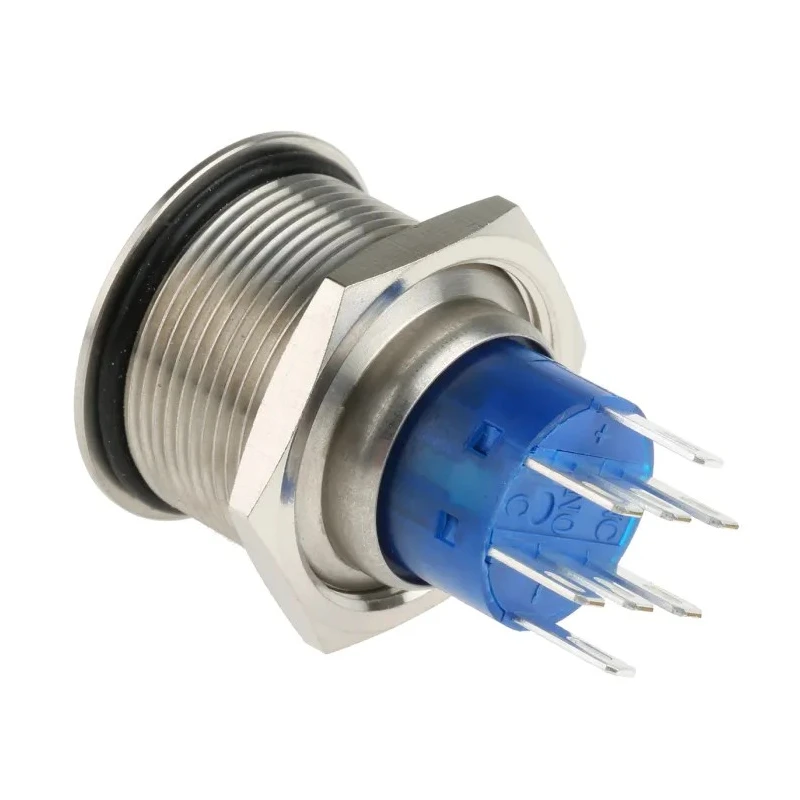

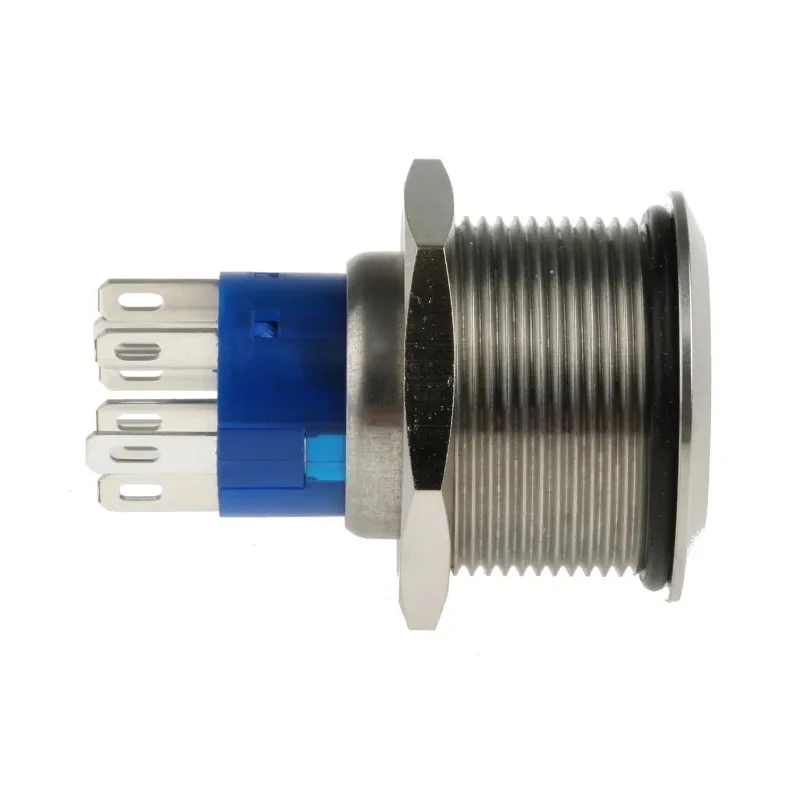

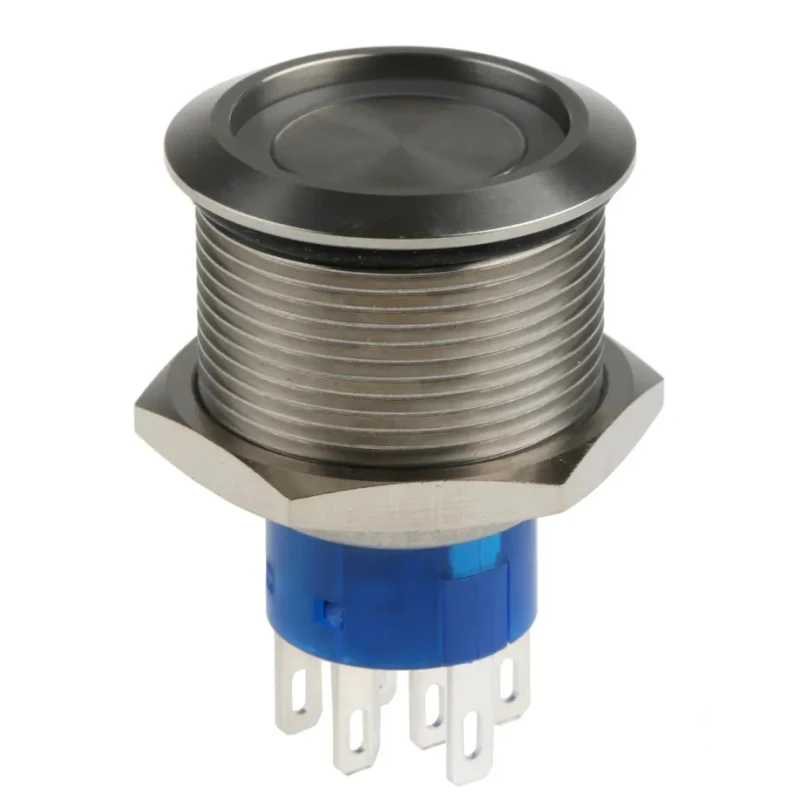

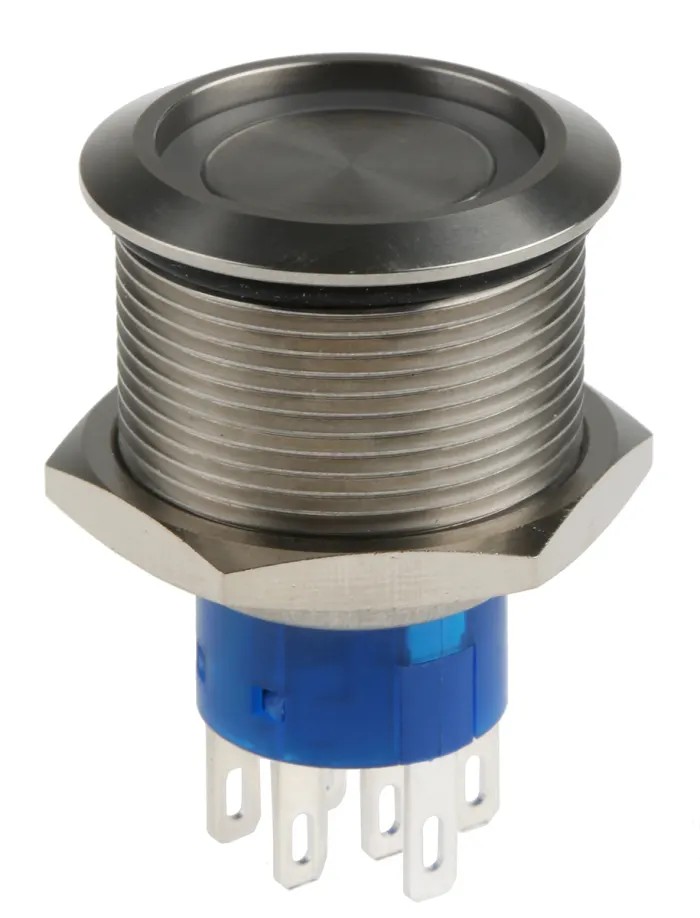

RS PRO Illuminated Momentary Push Button Switch Panel Mount DPDT Red LED IP67 250V 3,5A 175-9239

RS PRO 175-9239 is a high-quality illuminated momentary push button switch designed for panel mounting applications with a 22.2 mm cutout. Featuring a Double Pole Double Throw (DPDT) contact configuration, this switch offers reliable electrical performance with a contact voltage rating of 250 V AC/DC and a contact current of 3, 5 Amps.

The switch incorporates a red LED for clear and efficient illumination, enhancing visibility in control panels and instrumentation. It is rated IP67, providing robust protection against dust ingress and water, making it suitable for harsh industrial environments.

With a flat actuator style, the switch is ergonomically designed for easy operation and panel integration. It functions effectively across a wide temperature range from -20°C to 70°C, supporting versatile industrial applications.

RS PRO 175-9239 meets stringent quality and safety standards, being cULus Recognized and compliant with EC18, EN18 standards as well as UL 94 V-0 and V-2 flammability ratings. This makes it an ideal choice for industrial control instruments, medical equipment, security monitoring devices, vehicle peripherals, audio-visual equipment, and energy storage systems.

The series offers vandal resistance for public setting installations due to its sturdy metal construction, lightweight design, corrosion resistance, and efficient heat dissipation features.

Designed for momentary switch operation. Provides Double Pole Double Throw (DPDT) contact configuration. Red LED illumination indicates switch status clearly. Robust IP67 rating ensures protection against dust and water ingress.

Panel mounting with a precise 22.2 mm cutout size. Contact voltage rating of 250 V AC/DC suitable for various applications. Switch contact current rated at 3 and 5 Amps. Flat actuator style for ergonomic and sleek panel integration.

Operates reliably between -20°C and 70°C temperature range. Complies with multiple standards including cULus, EC18, EN18, and UL 94 V-0 and V-2 certifications.

Ideal for industrial, laboratory, commercial, and manufacturing uses, this push button switch assures long life expectancy and performance reliability. Explore more RS PRO products and Push Button Switches at EnvMart to find the perfect component for your application.
