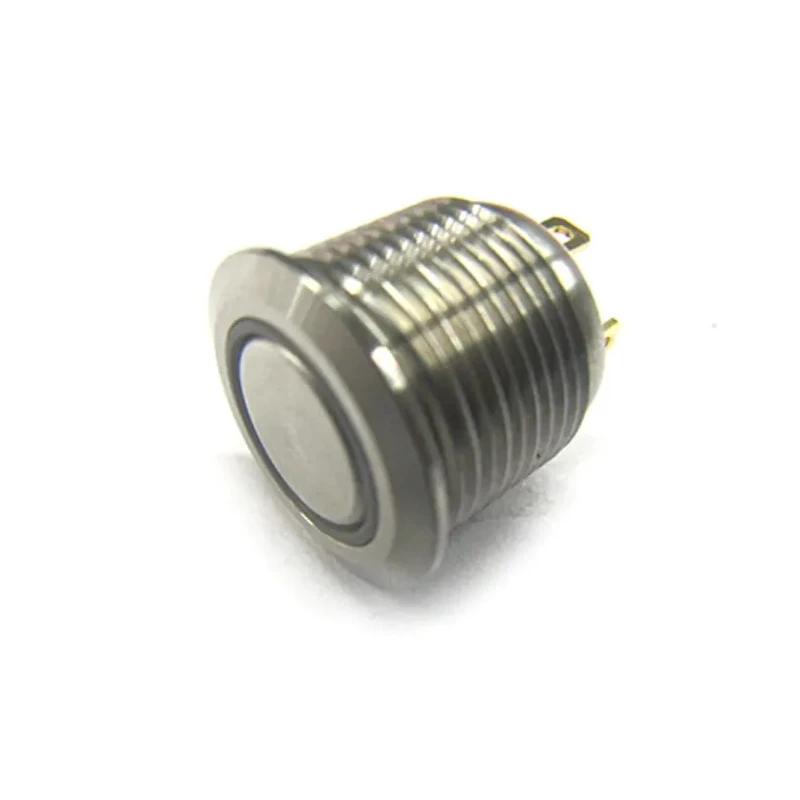

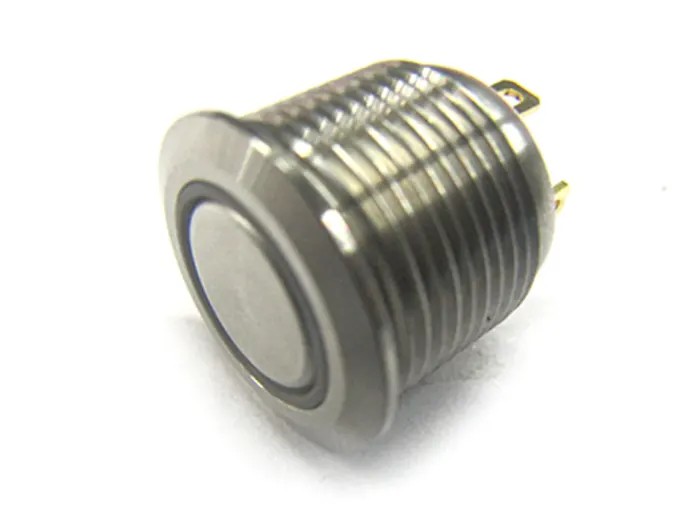

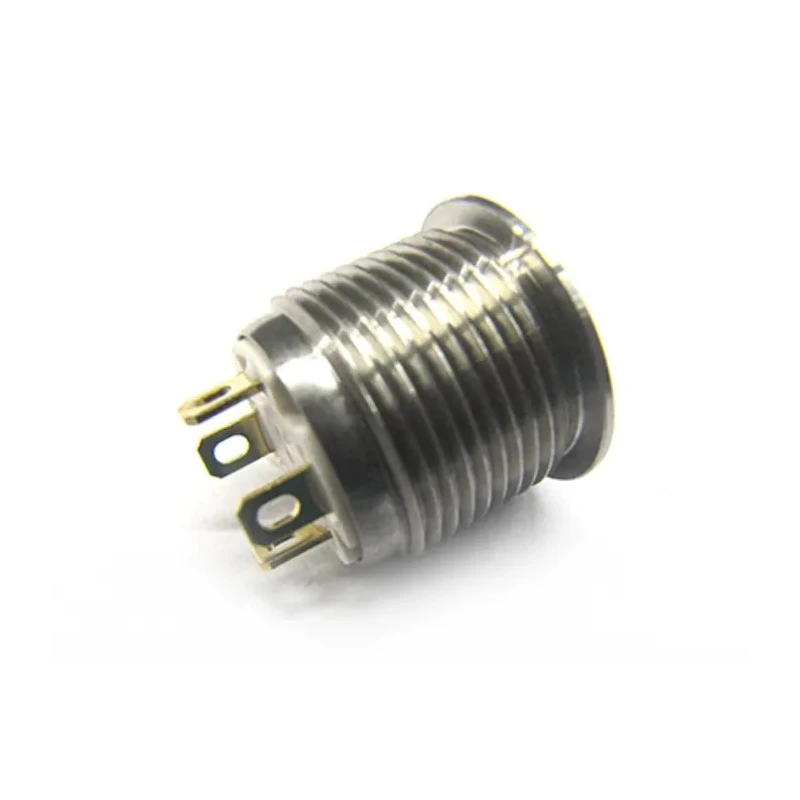

RS PRO Illuminated Momentary Push Button Switch, Panel Mount, 16 mm Cutout, SPST, Red LED, IP67, 36 V dc 36 V ac 175-9227

RS PRO 175-9227 Illuminated Momentary Push Button Switch is engineered for industrial and commercial applications requiring dependable and robust switching. It features a panel mount design with a 16 mm cutout and uses a Single Pole Single Throw (SPST) contact configuration.

This switch includes a bright red LED illumination, enhancing visibility and operational status indication. It is rated IP67, ensuring complete protection against dust ingress and water immersion, making it suitable for harsh environments.

The switch supports both AC and DC voltages up to 36 V and handles a current rating of 2A. Its flat actuator style allows for easy and comfortable pressing, suitable for operator panels in industrial machinery or control systems.

Constructed with durable materials compliant with UL 94 V and UL 94 V0 standards, the switch offers resistance against heat and flammability, increasing safety and longevity. The solder terminal type facilitates secure electrical connections.

Operating temperature ranges from -20°C to 70°C, suitable for diverse climate conditions. Ideal use cases include industrial control instruments, medical equipment, security monitoring devices, vehicle peripherals, audio-visual equipment, and energy storage systems.

The switch is IP67 rated for dust and water resistance. It supports a maximum contact voltage of 36 V dc and 36 V ac. Rated for a contact current of 2A, ensuring reliable switching performance. Constructed with a flat actuator style for easy operation.

Suitable for operating temperatures ranging from -20°C to 70°C. Terminal type designed for solder connections. Complies with UL 94 V and UL 94 V0 flammability standards. Compact 16 mm panel cutout size for easy integration.
