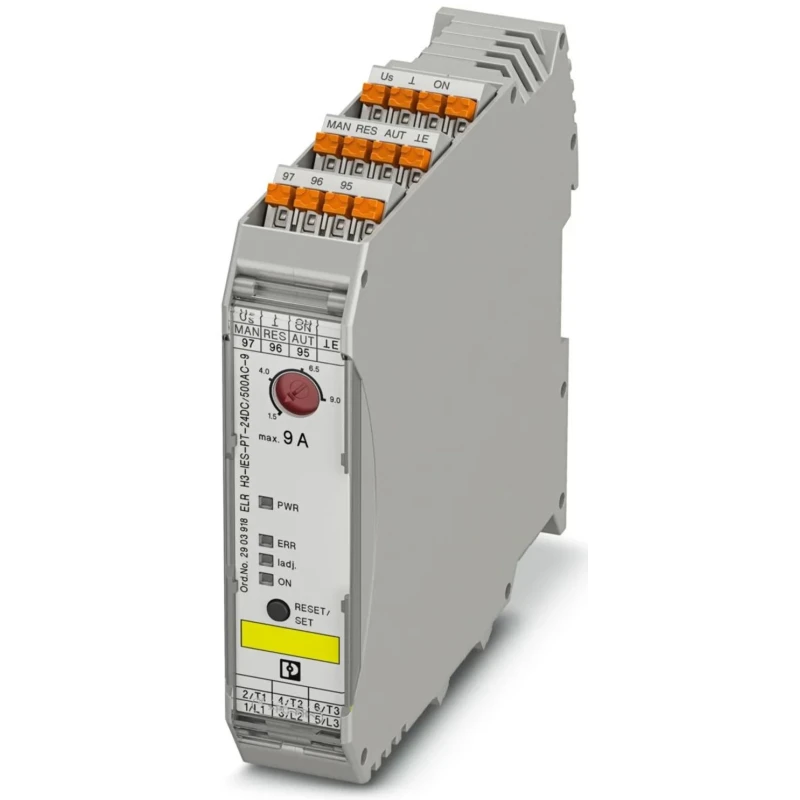

Phoenix Contact ELR H3-IES-PT-24DC Direct on Line Motor Starter 10W, 3 Phase, 550V AC, IP20 H3-IES-PT-24DC

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact ELR H3-IES-PT-24DC Direct on Line Motor Starter 10W, 3 Phase, 550V AC, IP20 H3-IES-PT-24DC

Name: Phoenix Contact ELR H3-IES-PT-24DC Direct on Line Motor Starter 10W, 3 Phase, 550V AC, IP20 H3-IES-PT-24DC
Brand: PHOENIX CONTACT
SKU: 152432
Price: 210.01 USD
Availability: InStock



Category Motor Starters Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Brand	Phoenix Contact
Model	H3-IES-PT-24DC
IP Rating	IP20
Mount Type	DIN Rail
Overall Length	107.4mm
Current Rating	9A
Series	ELR H3-IES-PT-24DC/500AC-9
Overall Width	22.5mm
Power Rating	10W
Sub Type	Direct on Line
Number of Phases	3
Maximum Voltage	550V ac
Hazardous Area Certification	ATEX
Overall Depth	113.7mm

Key Features

ATEX approved for hazardous area applications.
Emergency stop functionality compliant with SIL 3 and PL e safety integrity levels.
Push-in connections reduce wiring time and complexity.
Compact design is only 22.5 mm wide, saving installation space.
Suitable for DIN rail mounting in industrial control panels.
Adjustable overload shutdown extends motor and starter lifespan.
Surge and reverse polarity protection improves durability.
Complies with multiple international standards including IEC 60947 and UL approvals.

Product Description

Phoenix Contact H3-IES-PT-24DC is a direct on line motor starter designed for efficient and safe starting of three-phase motors with a current rating of 9A and voltage capacity up to 550V AC. It delivers a power rating of 10W and is suitable for DIN rail mounting within industrial automation and electrical control systems.

This model is ATEX approved, making it suitable for use in potentially explosive atmospheres. It features an emergency stop function with safety integrity level SIL 3 and performance level PL e, ensuring operational safety in industrial environments. The starter uses push-in connection technology that facilitates up to 75% reduction in wiring time compared to traditional mechanical contactors.

With a width of only 22.5 mm and an overall length and depth of 107.4 mm and 113.7 mm respectively, the compact form factor saves valuable panel space. The device also incorporates surge and reverse polarity protection to enhance operational robustness. It is rated IP20, providing protection against finger contact but does not protect against liquid ingress.

ATEX approved for hazardous environments. Emergency stop compliance at SIL 3/PL e safety levels. Push-in connection for ease of wiring. Adjustable overload shutdown extends equipment life. Compact 22.5 mm width for space saving.

Suitable for DIN rail mounting. Surge and reverse polarity protection. Low-wear switching reduces maintenance. Complies with IEC, UL, CCC, EAC, and other standards. IP20 protection against finger contact.

This motor starter is ideal for industrial automation, manufacturing facilities, water treatment plants, HVAC systems, and other commercial or industrial applications requiring reliable and safe motor starting solutions.
