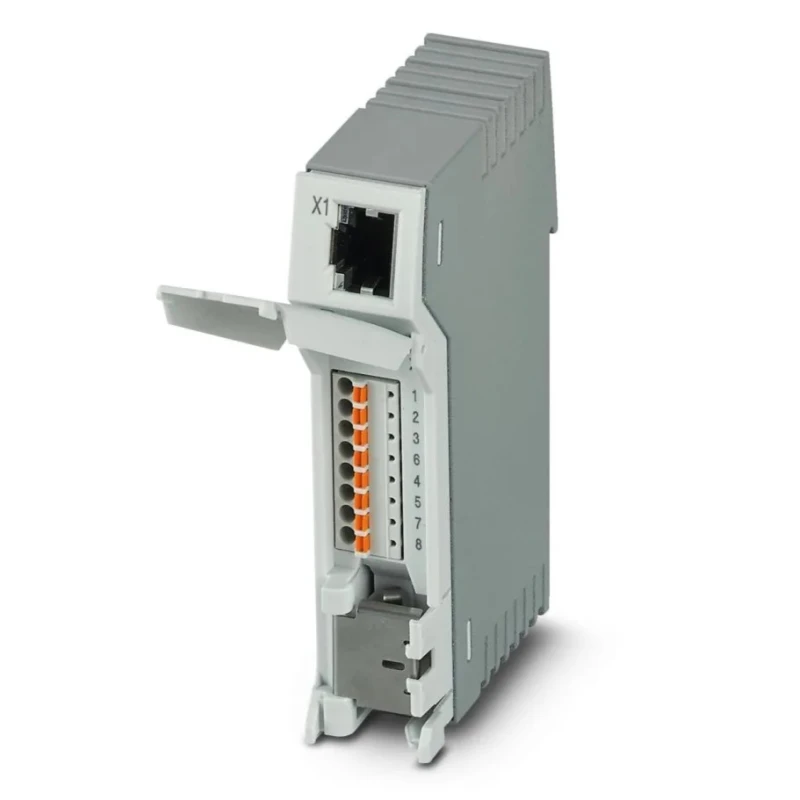

Phoenix Contact Ethernet Patch Panel DIN Rail Mounting IP20 Data Acquisition PP-RJ-IDC-F 2703022

Phoenix Contact 2703022 Ethernet patch panel for DIN rail mounting is part of the PP-RJ-IDC-F series designed for reliable data acquisition and networking applications. It facilitates the orderly transition of field cabling into the internal control cabinet wiring, maintaining signal integrity and ease of maintenance at data transfer rates of 10/100/1000 Mbps.

The device features an RJ45 socket compliant with CAT5e standard patch cables, ensuring compatibility with common Ethernet connections. Mounting on a standard DIN rail provides robust mechanical stability within control panels and industrial environments. The patch panel also offers a safe shield connection to ground potential to mitigate electromagnetic interference, critical for sensitive data acquisition systems.

Connection options vary by product version, including screw terminal blocks for secure wiring, push-in connections for ease of installation, and IDC connections for insulation displacement technology, providing flexibility for different wiring practices.

The product meets stringent international standards, including IEC 61643-21 for surge protection, EN 61000-4 series for electromagnetic compatibility testing (ESD, surge, EFT), and full compliance with UL, CSA certifications, and RoHS regulations, ensuring safety and environmental responsibility.

Manufactured in Germany, this patch panel exemplifies precision engineering and robust design suitable for industrial, measurement, automation, and networking sectors requiring dependable DIN rail mounted Data Acquisition components.

Enables transition of field cabling to control cabinet internal cabling. Equipped with RJ45 socket compatible with CAT5e patch cables. Mounts easily on standard DIN rails for secure installation. Provides safe shield connection to ground potential for EMI protection.

Various connection options including screw terminal, push-in, and IDC connections. Compliant with IEC 61643-21 surge protection and EMC Directive standards. Certified under UL and CSA with RoHS compliance. Manufactured in Germany ensuring high quality standards.
