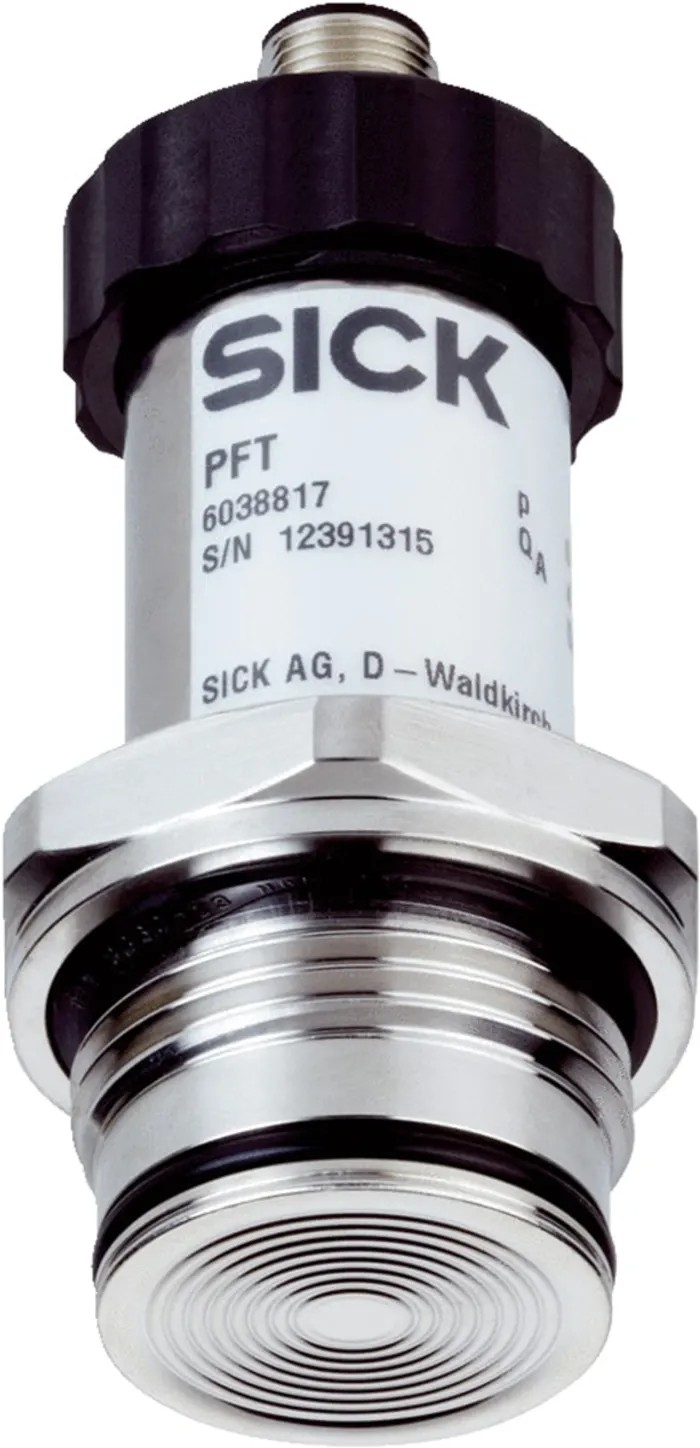

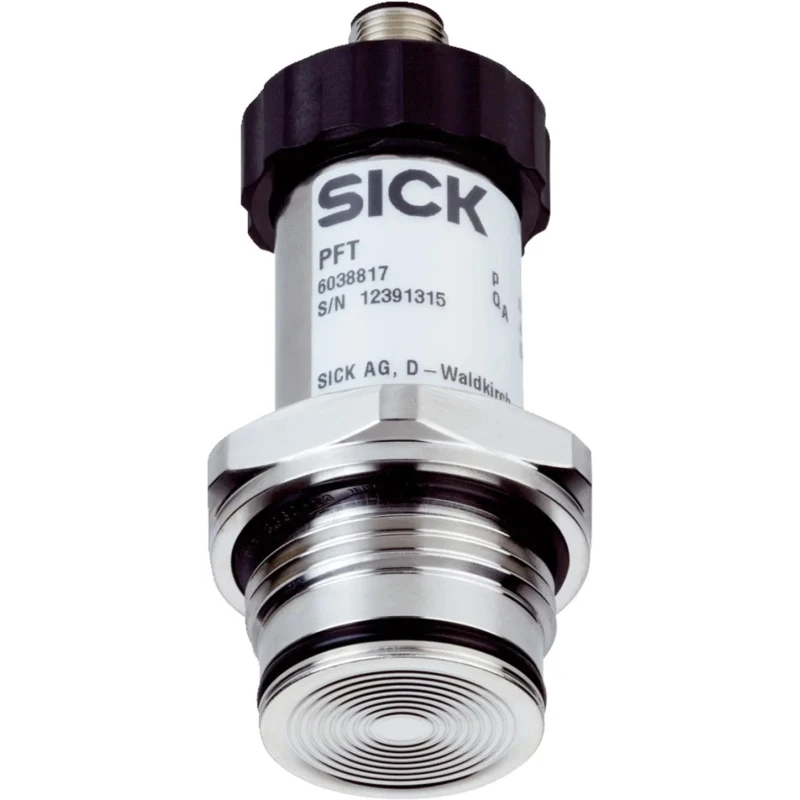

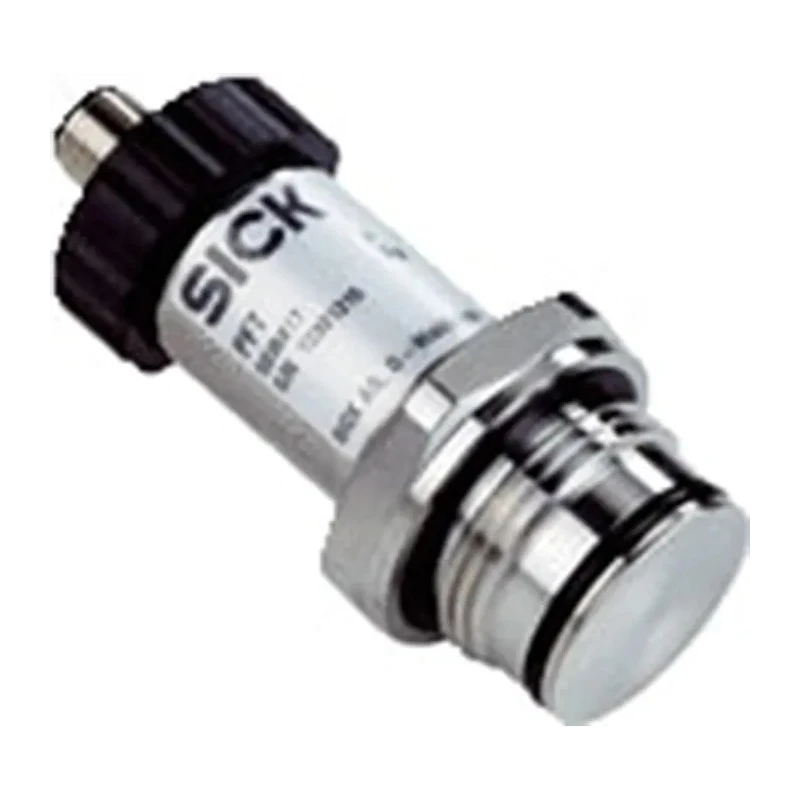

SICK PFT Series Pressure Sensor 2-Wire mA 4 to 20 mA Output 0-0.1 bar Gauge Reading PFT-FRBX10SF10SSAMSSZ

SICK PFT-FRBX10SF10SSAMSSZ pressure sensor is a high-quality industrial gauge pressure measurement device with a 2-wire mA 4 to 20 mA output designed for precise measurement of liquid and gaseous media pressure within 0 to 0.1 bar range.

Constructed with a screw mount and 1.4571 stainless steel housing, this sensor provides reliable performance in harsh industrial environments. It operates effectively from -20°C minimum ambient temperature up to a maximum of 80°C, protected by an IP67 ingress rating ensuring water and dust resistance.

With an accuracy of 0.5%, the sensor delivers precise readings crucial for hydraulic, pneumatic, machine tool systems, pumps, compressors, and pressure control systems across diverse industries including manufacturing, industrial automation, and process control.

The sensor features no moving parts, ensuring maintenance-free operation and resistance to mechanical wear and fatigue. Its hermetically sealed stainless steel membrane offers corrosion resistance for trouble-free long-term usage in corrosive media.

The fast 1 ms response time allows for real-time monitoring and swift system adjustments, supporting advanced control applications. The device operates on supply voltages from a minimum of 10V up to a maximum of 30V, compliant with relevant CE certification standards.

This sensor is part of the well-regarded SICK PFT series, known for wide configuration options and adaptability to customer requirements with measurement ranges extending up to 600 bar in other models.

Packaged and made in Germany, it meets stringent quality and reliability standards. This Pressure Sensor is ideal for use in industrial, manufacturing, laboratory, hydraulic, pneumatic, HVAC, and water treatment applications requiring accurate pressure monitoring.

Designed for liquid and gaseous media pressure measurement. Features high accuracy of 0.5 percent and fast 1 ms response time. Operates reliably across -20°C to 80°C temperature range. Constructed with 1.4571 stainless steel housing with IP67 rating for durability.

Easy to install screw mount type ensures stable setup and operation. Output complies with 2-wire 4 to 20 mA standard for process control systems. CE certified, ensuring compliance with European standards. Corrosion-resistant stainless steel membrane provides maintenance-free operation.

Suitable for machine, plant engineering, hydraulic, pneumatic, and compressor applications. Compact and robust design for trouble-free industrial usage. Explore more precision sensors and industrial automation solutions on EnvMart for reliable and efficient process measurement needs.
