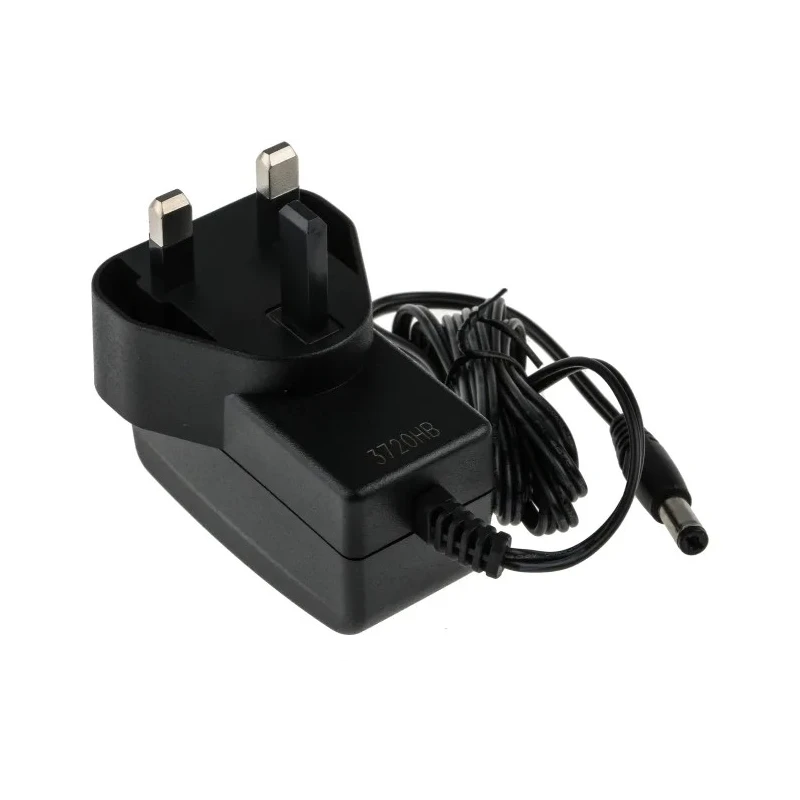

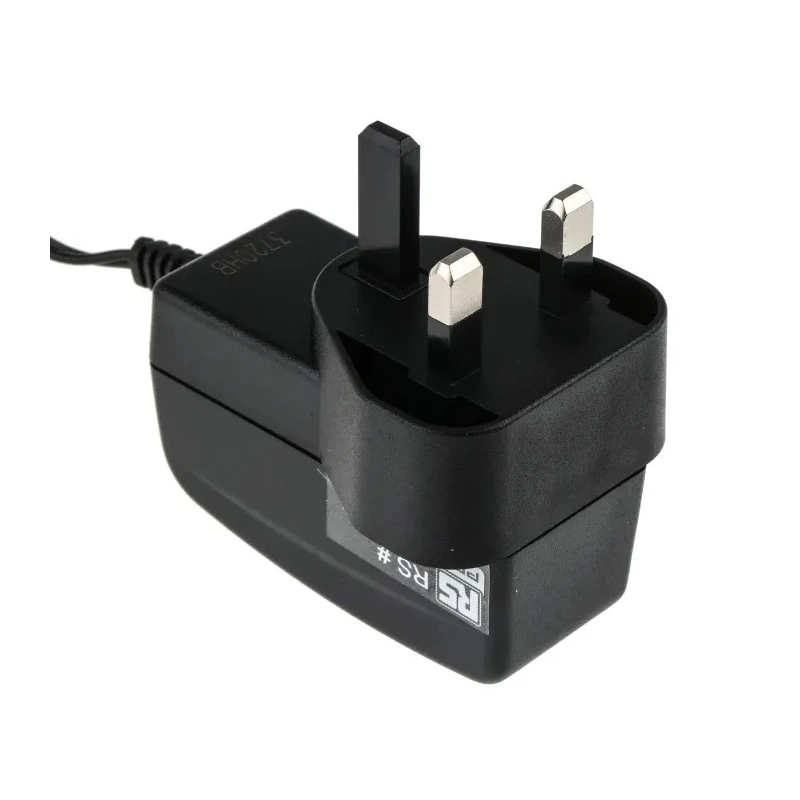

RS PRO 12 W 12V DC Output AC/DC Adapter Type G 2.1 x 5.5 x 12 mm Centre Positive 175-3303

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 12 W 12V DC Output AC/DC Adapter Type G 2.1 x 5.5 x 12 mm Centre Positive 175-3303

Name: RS PRO 12 W 12V DC Output AC/DC Adapter Type G 2.1 x 5.5 x 12 mm Centre Positive 175-3303
Brand: RS PRO
SKU: 152315



Category AC/DC Adapter Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Power	12W
Efficiency	79.3%
Length	70mm
Model	175-3303
Depth	73.2mm
Cable Length	1.5m
Width	49.5mm
Series	RS PRO
Maximum Operating Temperature	40°C
Sub Type	AC/DC Adapter
Load Regulation	±5 %
Minimum Operating Temperature	0°C
Plug Type	Type G
Number of outputs	1
Maximum Input Voltage	240V ac
Output Voltage	12V dc
Standards/Approvals	EN 60950-1, CE
Minimum Input Voltage	100V ac
Output Connector Type	2.1 x 5.5 x 12 mm Centre Positive
Input Connector Type	UK Plug
Adapter Current	1A
Energy Efficiency Level	VI
Regulated/Unregulated	Regulated

Key Features

Type G plug compatible with UK mains sockets.

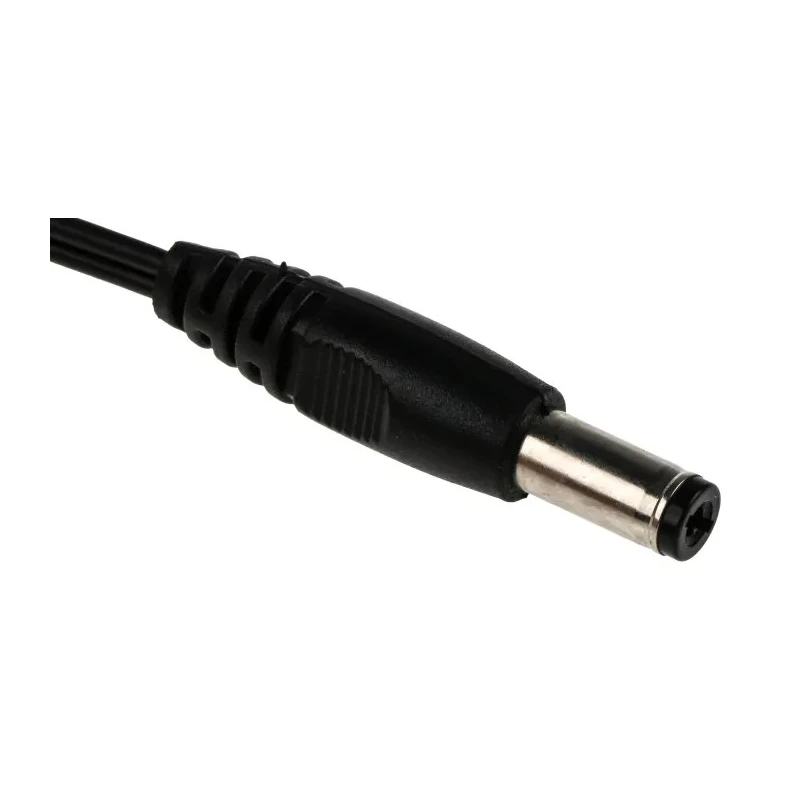

Output connector dimensions of 2.1 x 5.5 x 12 mm centre positive.
Includes a 1.5-metre cable for flexible power outlet placement.
Regulated output with overvoltage and overload protection for safety.
Operating temperature range from 0°C to 40°C.
Compliance with EN 60950-1 and CE standards.
Energy Efficiency Level VI with 79.3% efficiency rating.
Suitable for powering laptops, CCTV cameras, and lighting equipment.

Product Description

RS PRO 175-3303 AC/DC Adapter is a high-quality power supply device delivering 12 W power at 12 V DC output with a current of 1 A. Featuring a Type G UK plug and a 1.5-metre cable, this adapter is designed for convenient use with portable electronics.

The output connector is centre positive with dimensions of 2.1 x 5.5 x 12 mm, ensuring compatibility with a wide range of devices. The adapter output is regulated, providing stable power and incorporating overvoltage and overload protection for enhanced safety and reliability.

It operates efficiently within a temperature range of 0°C to +40°C and meets compliance standards including EN 60950-1 and CE certification. The compact housing measures 70 mm in length, 49.5 mm in width, and 73.2 mm in depth, making it suitable for confined spaces.

With an energy efficiency rating of Level VI and 79.3% efficiency, this adapter supports environmentally-conscious power consumption. It is suitable for industrial, laboratory, commercial, and other applications requiring reliable DC power sources such as laptops, CCTV cameras, and lighting.

The RS PRO 175-3303 complies with RoHS guidelines and ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards, ensuring safe handling and reduced environmental impact.

Type G plug compatible with UK mains sockets. Output connector dimensions of 2.1 x 5.5 x 12 mm centre positive. Regulated 12 W output at 12 V DC with 1 A current. Overvoltage and overload protection included. Operating temperature from 0°C to 40°C.

Complies with EN 60950-1, CE, RoHS, and ANSI/ESD standards. Energy Efficiency Level VI with 79.3% efficiency. Compact dimensions: 70 x 49.5 x 73.2 mm. 1.5 m cable length for flexible use. Suitable for powering laptops, CCTV cameras, and lighting equipment.
