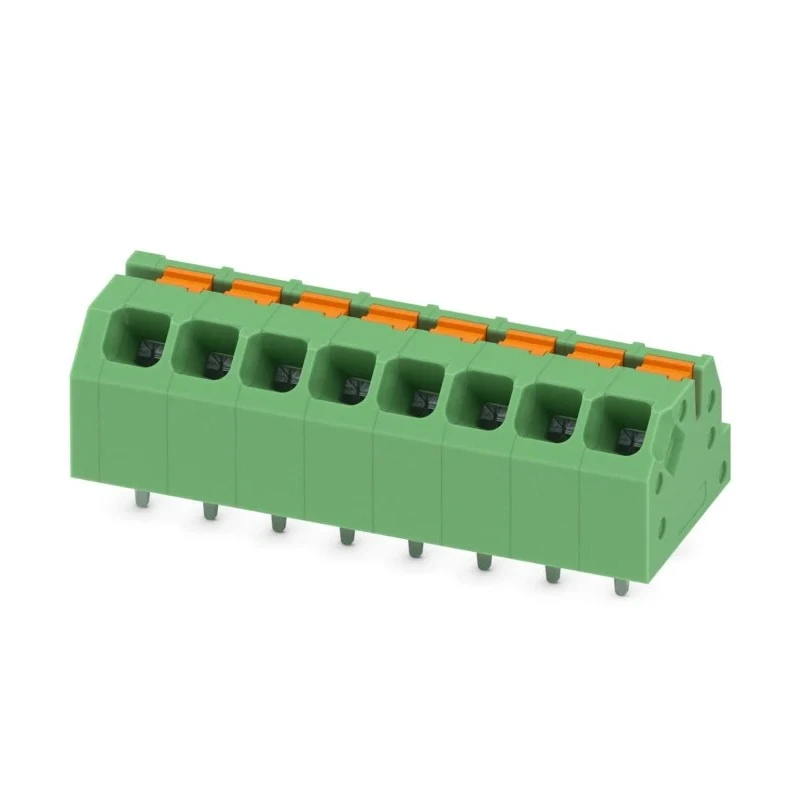

Phoenix Contact PCB Terminal Block SPTAF 1/ 8-3.5-IL Series Straight Wave Soldering Mount, 8 Contacts, 3.5 mm Pitch 1861991

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact PCB Terminal Block SPTAF 1/ 8-3.5-IL Series Straight Wave Soldering Mount, 8 Contacts, 3.5 mm Pitch 1861991

Name: Phoenix Contact PCB Terminal Block SPTAF 1/ 8-3.5-IL Series Straight Wave Soldering Mount, 8 Contacts, 3.5 mm Pitch 1861991
Brand: PHOENIX CONTACT
SKU: 151716
Price: 20.22 USD
Availability: InStock



Category PCB Headers Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	160V
Brand	Phoenix Contact
Orientation	Straight
Current	16A
Model	1861991
Mount Type	Wave Soldering Mount
Housing Material	Polyamide
Series	SPTAF 1/ 8-3.5-IL
Number of Rows	1
Pitch	3.5mm
Standards/Approvals	cULus Recognised, EU RoHS
Number of Contacts	8
PCB Terminal block, nominal current	16 A, nom. voltage: 160 V, pitch: 3.5 mm, number of positions: 8, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, colour: green

Key Features

Designed for reliable wave soldering mounting on PCBs.
Features push-in spring connection for secure conductor attachment.
Constructed using durable polyamide housing material in green color.
Supports 8 contact positions arranged in a single row.
Electrical ratings include 16 A nominal current and 160 V nominal voltage.
Conductor and PCB connection direction oriented at 45 degrees for easy installation.
Recognized by cULus and compliant with EU RoHS standards.
Manufactured in Germany ensuring high quality and precision.

Product Description

Phoenix Contact 1861991 SPTAF 1/ 8-3.5-IL Series PCB Terminal Block is engineered for efficient and reliable electronics connectivity, offering a nominal current rating of 16 A and nominal voltage of 160 V.

This wave soldering mount terminal block features an 8-position design with a 3.5 mm pitch and a straight orientation, ideal for compact PCB layouts. The terminal block uses a push-in spring connection system, facilitating easy and secure conductor installation with a conductor/PCB connection angle of 45 degrees.

Constructed from robust green polyamide housing, the block ensures durability and insulation safety in demanding industrial and electronic applications. The product holds cULus recognition and complies with EU RoHS directives, confirming its quality and environmental standards.

Manufactured in Germany, this terminal block is suited for use in electronics manufacturing, power connectors, and PCB assemblies in industrial, laboratory, and commercial settings.

Reliable wave soldering mount for PCB integration. Push-in spring connection method simplifies conductor attachment. Polyamide housing provides electrical insulation and durability. Supports 8 contacts with 3.5 mm pitch and single-row configuration.

Voltage rated at 160 V and current rated at 16 A ensuring robust performance. Compliance with cULus and EU RoHS for safety and environmental standards. 45° conductor and PCB connection direction for ergonomic wiring. Color coded green for identification in electrical circuits.
