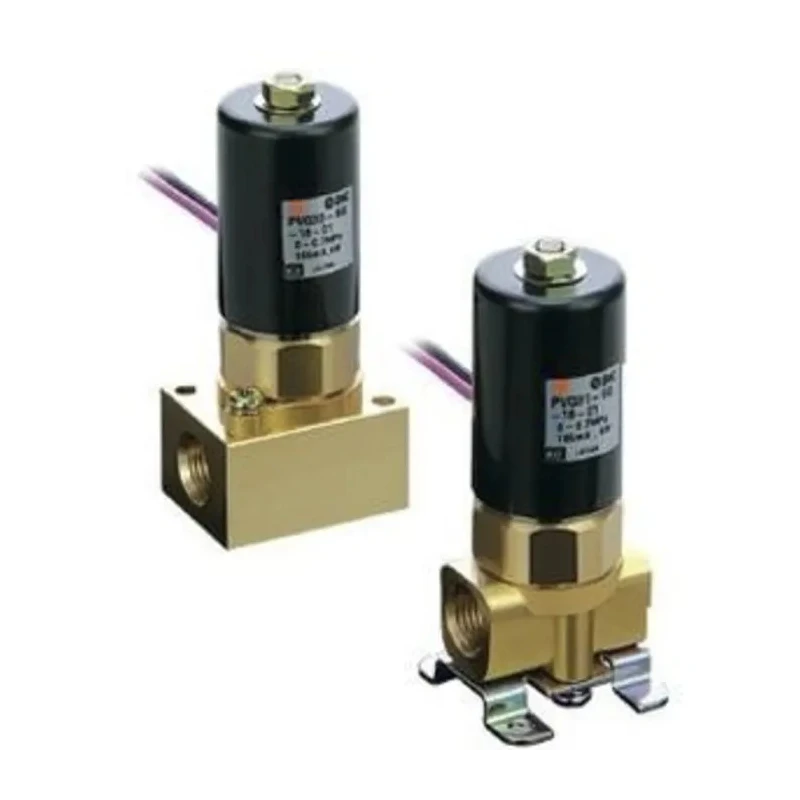

SMC Proportional Control Valve - NC Solenoid G 1/8 24V DC Brass Body 100 L/min PVQ30

Free Delivery in India | Lowest Global Shipping Charges

SMC Proportional Control Valve - NC Solenoid G 1/8 24V DC Brass Body 100 L/min PVQ30



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Brass
Maximum Operating Pressure	1 Mpa
Height	27mm
Length	61mm
Model	PVQ30
Width	25mm
Mount Type	Body Ported
Series	PVQ30
Number Of Ports	2
Maximum Operating Temperature	50°C
Port Type	Threaded
Number of Positions	2
Port Size	1/8 in
Seal Material	Fluorelastomer
Minimum Operating Temperature	0°C
Actuation Type	Solenoid
Maximum Flow Rate	100L/min
Standards/Approvals	RoHS, CE
Connection Thread Standard	G 1/8
Minimum Pilot Pressure	0MPa
Valve Function	NC
Electrical Connection Type	Grommet
Maximum Pilot Pressure	0.7MPa
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	4W

Key Features

Constructed with durable brass body material for long-lasting use.
Designed with two ports and female G 1/8 connection thread standard.
Maximum operating pressure of 1 MPa and flow rate up to 100 L/min.
Low hysteresis and direct operated poppet design for precise flow control.
Operates efficiently between 0°C and 50°C ambient temperature.
Solenoid consumes only 4W power with reduced start-up current.
Electrical connection via grommet with single solenoid type and two positions.
Complies with RoHS and CE standards, suitable for pneumatic automation systems.

Product Description

SMC PVQ31-5G-16-01F is a high-quality proportional control valve featuring a normally closed solenoid actuator with a G 1/8 threaded port connection. It is powered by a 24V DC supply and engineered to deliver precise flow regulation with a maximum flow rate of 100 L/min and maximum operating pressure of 1 MPa. This valve is constructed from robust brass body material to withstand demanding industrial environments.

The valve utilizes a direct operated poppet design that enhances responsiveness and ensures low hysteresis of 10% or less, contributing to accurate flow control. The start-up current is reduced to 50% or less, which improves energy efficiency in pneumatic systems. The valve operates reliably within a temperature range of 0°C to +50°C making it suitable for various factory automation and pneumatic circuit applications.

Additional features include a compact footprint with dimensions of 61mm length, 27mm height, and 25mm width, and it supports electrical connection by grommet type. It includes dual ports with female thread gender and a solenoid type designed for single solenoid and two-position operation. The valve is compliant with RoHS and CE standards, underscoring its quality and global certification compliance.

This proportional control valve is ideal for integration in automation projects requiring precise and reliable flow performance with low energy consumption. It suits pneumatic circuits where a normally closed valve function is necessary for safe and controlled flow activation.

Applications include industrial automation for flow regulation, pneumatic control systems, and various solenoid-controlled assemblies where a compact, energy-efficient, and accurate valve is required. Its design accommodates installation in constrained spaces thanks to its body-ported mount type.

Durable brass body construction for enhanced longevity. Direct operated poppet mechanism for responsive control. Low energy consumption with 4W solenoid power usage. Wide operating temperature range suitable for various environments.

Precision flow regulation with low hysteresis and high repeatability. Compact and body ported design for easy installation. Compliant with RoHS and CE standards for quality assurance. Suitable for industrial automation and pneumatic control applications.

Female G 1/8 threaded ports with two port configuration. Made in Japan with new condition guarantee. Explore additional pneumatic solenoid valve products and accessories within our Industrial Valves category at EnvMart for complete automation solutions.
