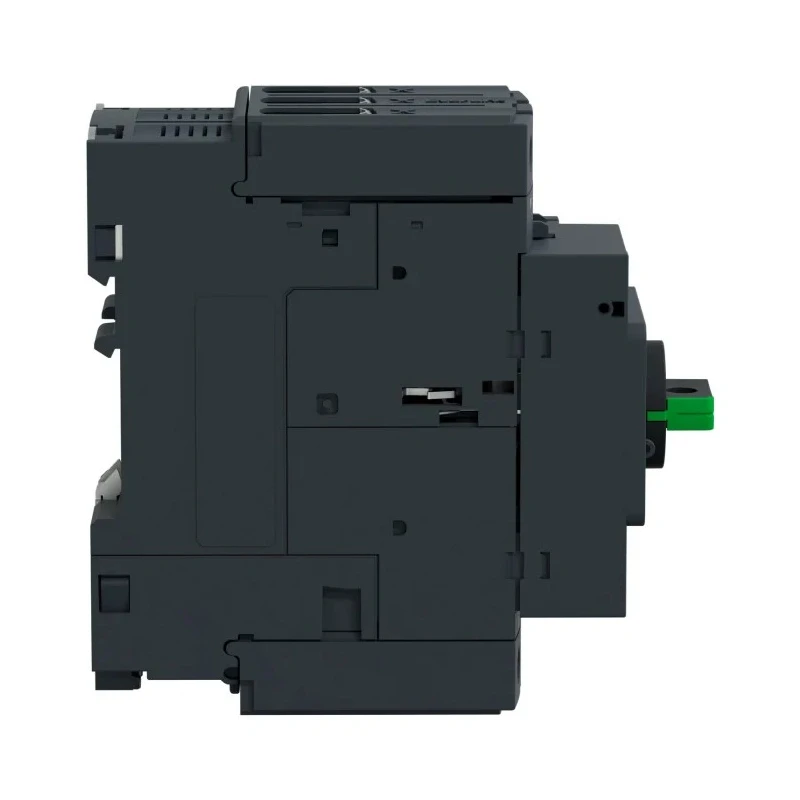

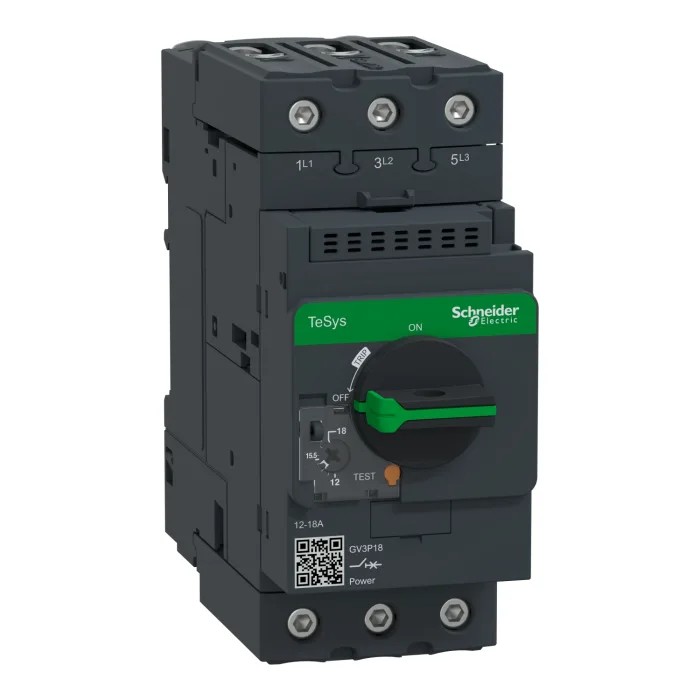

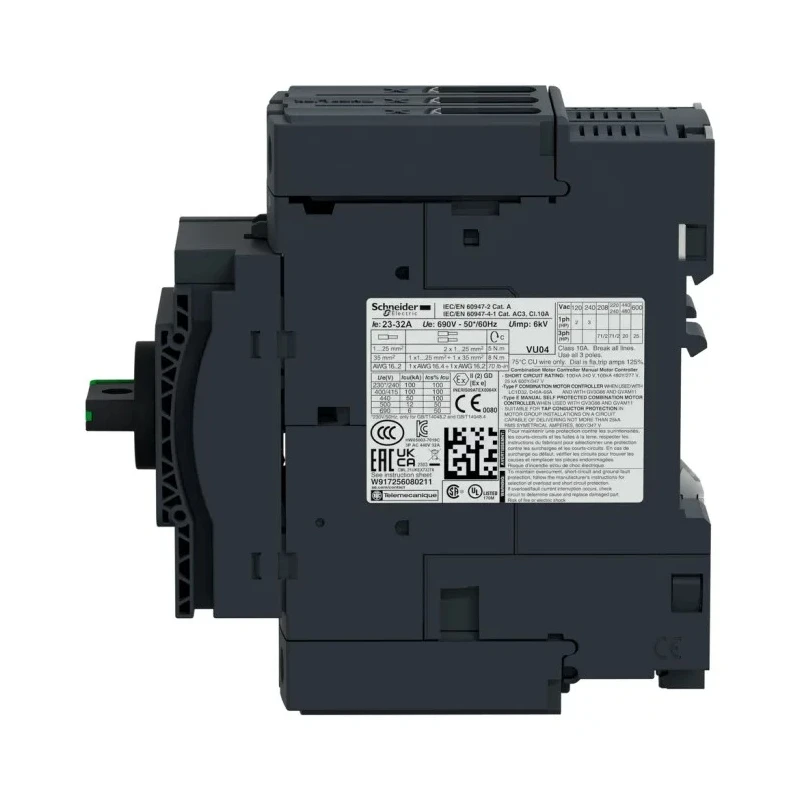

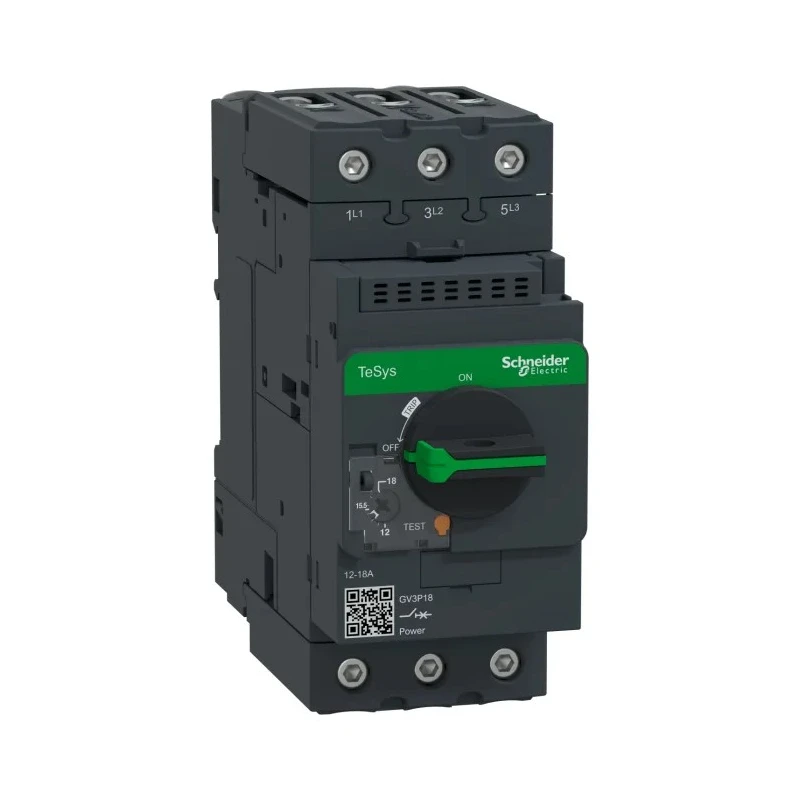

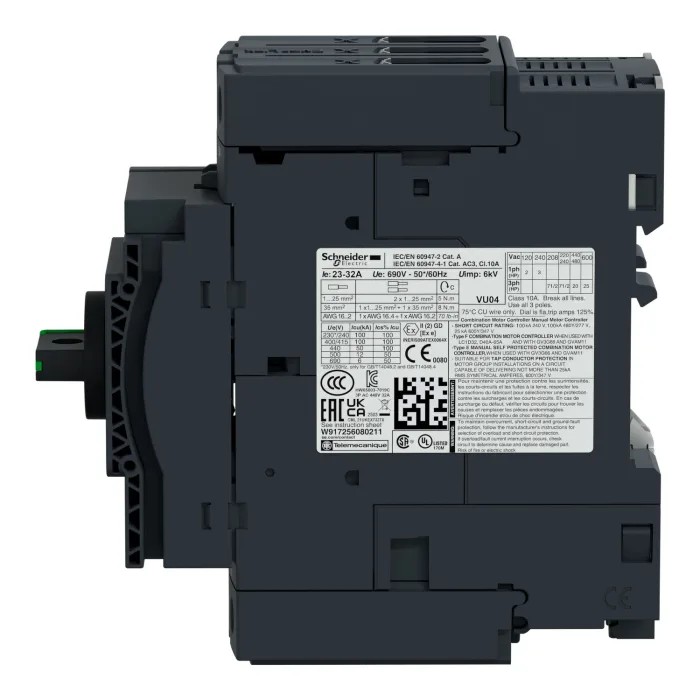

Schneider Electric TeSys GV Thermal Circuit Breaker 18A Current Rating 3-Pole 690V AC Thermal Magnetic Tripping GV3P18

Schneider Electric GV3P18 Thermal Circuit Breaker offers dependable motor protection with an 18A current rating and thermal magnetic tripping designed for three-pole motor applications up to 690V AC.

This device is built to provide precise thermal protection by interrupting fault currents while accommodating motor load variations with an adjustable tripping range of 12 to 18A. It is suited for installation within control panels and on DIN rails, making it ideal for use in industrial automations and motor starter assemblies.

With a breaking capacity of 6kA, the circuit breaker effectively handles short-circuit fault conditions, protecting motors against damage. Its screw terminals with EverLink compatibility ensure secure and reliable conductor connections, facilitating installation and maintenance.

The mechanical and electrical durability supports up to 50,000 cycles at AC-3 utilization category and 415 V, enabling frequent switching in demanding industrial environments. The actuator toggle switch provides convenient manual reset functionality.

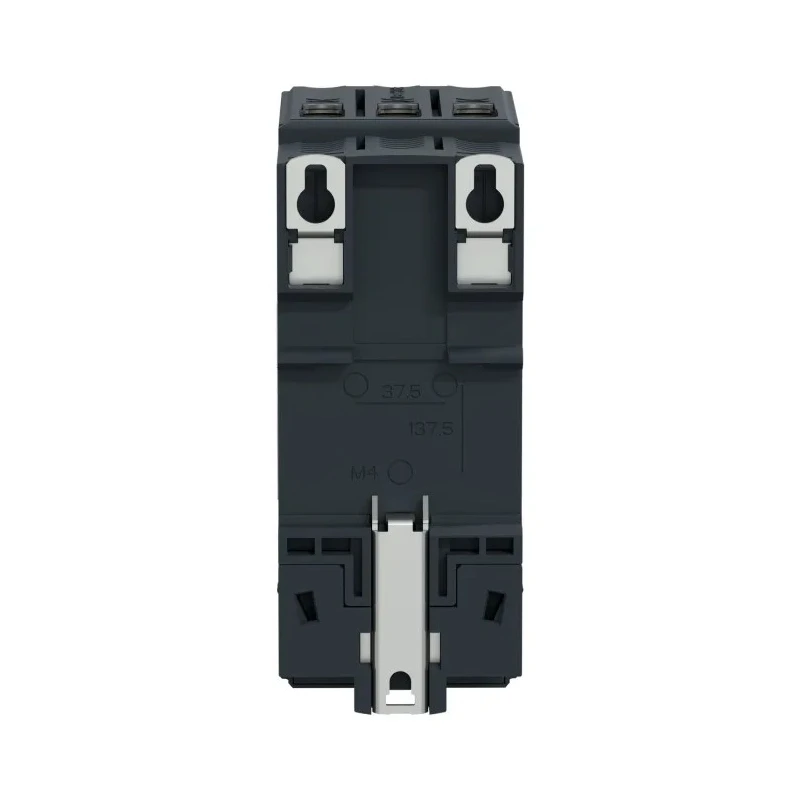

The compact footprint with dimensions of 55mm width, 132mm height, and 136mm depth allows flexible mounting options either clipped on a 35mm symmetrical DIN rail or fixed to panels via three M4 screws. The thermal breaker is certified compliant with RoHS and CE standards, meeting stringent safety and environmental requirements.

Rated for continuous service with thermal current of 18A and medium break time, the breaker also maintains performance across a wide ambient temperature range (-20 to 60 °C). Enclosure protection is rated IP20 with IK09 impact resistance, and it is designed to withstand specified vibration and shock limits.

This circuit breaker is suitable for industrial applications that require reliable motor protection such as automation installations, manufacturing equipment, and retrofit of existing control systems.

Discover more quality products in the Thermal Circuit Breaker category at EnvMart, designed for industrial, manufacturing, and electrical control applications. Offers 18A current rating suitable for continuous motor protection.

Features thermal magnetic tripping mechanism for precise fault interruption. Designed for 690V AC rated voltage in industrial control applications. Equipped with screw terminals compatible with EverLink for secure connections.

Compact dimensions with 55mm width, 132mm height, and 136mm depth. Mountable directly on 35mm DIN rail or panel using M4 screws. Includes toggle switch reset actuator for easy manual operation. High breaking capacity rated at 6kA ensures safety under fault conditions.

Complies with RoHS and CE standards ensuring quality and safety. Durable design withstands -20 to 60 °C operating temperatures and IK09 impact resistance.
