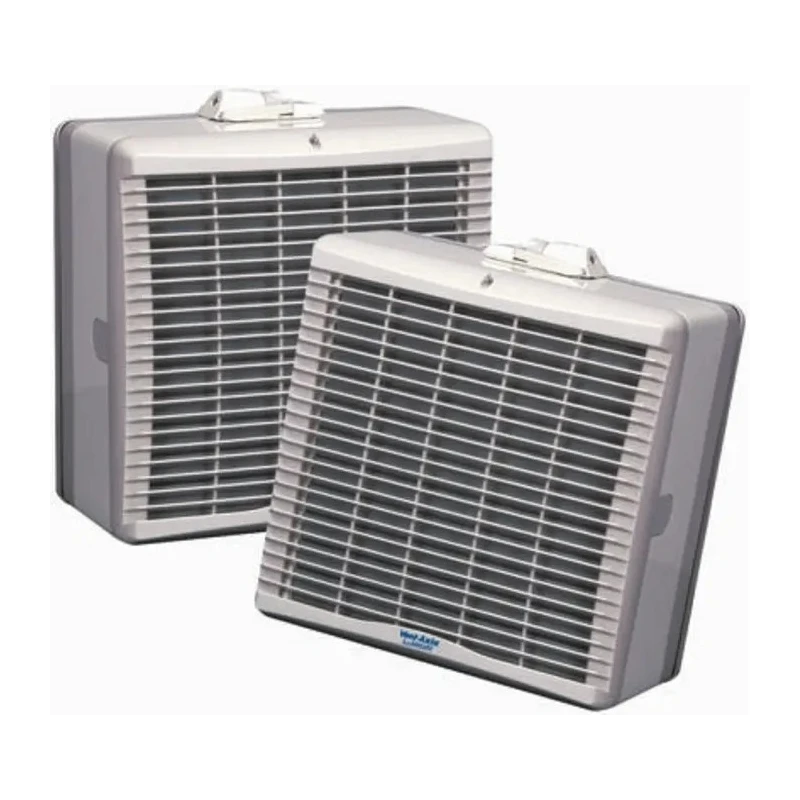

Vent-Axia T Series Square Window Extractor Fan 230V AC, 1615 m³/h Air Flow, 48 dBA Noise Level, Duct Size 315 mm TX12WW

Vent-Axia TX12WW is a T Series Square Window Extractor Fan designed for robust and efficient air extraction in residential and commercial settings. Powered by 230V AC, it delivers a high airflow rate of 1615 m³/h, making it suitable for ventilating rooms with demanding airflow requirements. Its square configuration allows installation on single and double-glazed windows up to 32mm thickness.

This extractor fan incorporates a unique speed control pack, enabling users to preset high, medium, or low speeds to tailor ventilation based on specific room sizes or requirements. The low density 5 blade impeller maximizes airflow efficiency while the quiet-running motor operates at a low noise level of 48 dBA, ensuring minimal disruption.

Constructed from weather-resistant polymeric materials and designed for window mounting, the fan withstands varied environmental conditions with an operational temperature range from -40 to +50°C. Installation depth of 177 mm and face dimensions of 378 mm by 381 mm complement its design for convenient integration.

Vent-Axia TX12WW features overload protection in its motor for enhanced safety and reliability, coupled with easy dismantling for servicing without requiring special tools. The duct size of 315 mm accommodates standard ventilation ducting, facilitating efficient air extraction and management.

This product is manufactured in the United Kingdom and meets quality and safety standards relevant for residential use. It is ideal for applications in HVAC systems, commercial buildings, industrial ventilation, and residential environments requiring controlled air extraction with quiet operation.

Square design that fits single and double glazing windows up to 32mm thick. Preset speed control pack offers versatile airflow options to suit room size. Quiet operation at 48 dBA minimizes noise pollution during use. Weather resistant polymeric construction ensures durability.

Low density 5 blade impeller supports effective air movement. Overload protected motor enhances operational safety. Installation depth 177 mm with face height of 378 mm and width of 381 mm. Supports duct size of 315 mm for standard ventilation integration.

Operating temperature range from -40°C to +50°C expands usability. Manufactured in the United Kingdom adhering to residential fan approval standards. Explore the comprehensive range of industrial Extractor Fans on EnvMart for quality and performance.
