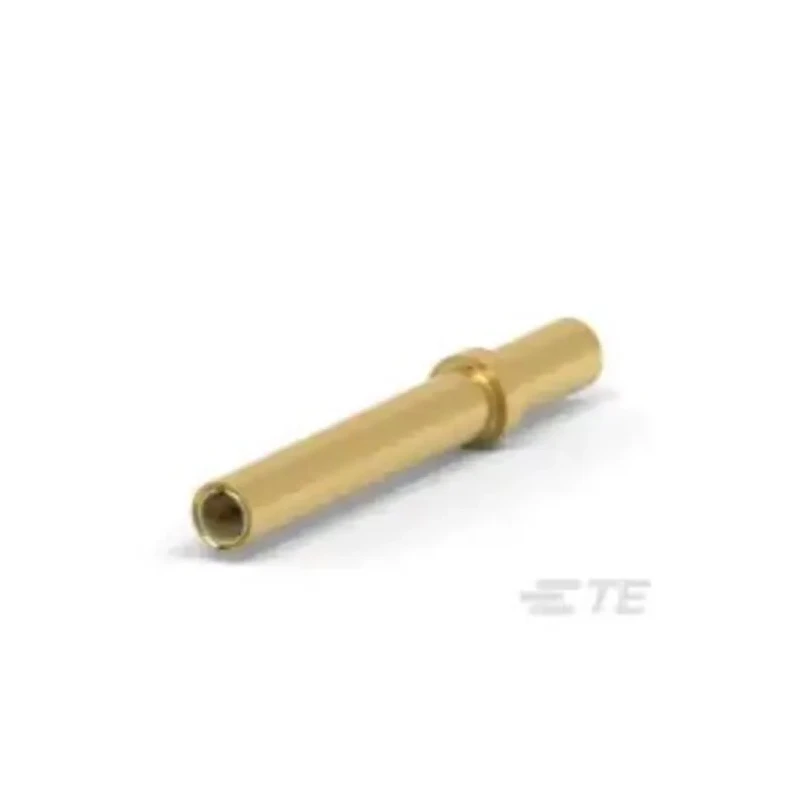

TE Connectivity ELCON Drawer Series Female Crimp Terminal, 5A Current, 24-20 AWG Wire Size, Gold Plating 1648325-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity ELCON Drawer Series Female Crimp Terminal, 5A Current, 24-20 AWG Wire Size, Gold Plating 1648325-1

Name: TE Connectivity ELCON Drawer Series Female Crimp Terminal, 5A Current, 24-20 AWG Wire Size, Gold Plating 1648325-1
Brand: TE Connectivity
SKU: 218483
Price: 2.75 USD
Availability: InStock



Category Crimp Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Current	5A
Length	16.51mm
Gender	Female
Contact Material	Copper Alloy
Series	ELCON Drawer
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
For Use With	Elcon Drawer Connector Housing
Contact Plating	Gold
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.6mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	20AWG

Key Features

Constructed from copper alloy ensuring durability and excellent conductivity.
Gold plated contacts for corrosion resistance and enhanced electrical performance.
Supports wire sizes from 24 AWG to 20 AWG suitable for various cable gauges.
Designed for crimp termination providing secure and reliable connection.
Operates effectively between -40°C to 105°C temperature range.
Compact length of 16.51 mm suitable for tight connection spaces.
Compatible specifically with Elcon Drawer connector series housings.
Current rating of up to 5 Amperes for moderate electrical loads.

Product Description

TE Connectivity 1648325-1 female crimp terminal is engineered for use with ELCON drawer connector housings, providing dependable electrical performance and mechanical stability. It is ideal for medium current applications up to 5A and wire sizes ranging from 24 AWG (0.2mm²) to 20 AWG (0.6mm²), making it versatile for many electronics and power distribution scenarios.

Manufactured from copper alloy, this terminal features gold plating on the contact surface to ensure excellent corrosion resistance and superior electrical conductivity. The crimp termination design guarantees secure wire connections, optimizing assembly efficiency and long-term reliability.

Its compact 16.51 mm length fits neatly into connector housings without compromising contact performance, while the operating temperature range from -40°C up to 105°C allows for use in a variety of environmental conditions commonly found in industrial, electronic manufacturing, and power supply installations.

This particular female crimp terminal does not hold specific standards approvals but meets the functional requirements for ELCON drawer systems. It is well-suited for implementing secure connections in power connector assemblies and electronic component interconnects.

Constructed from copper alloy for durability and conductivity. Gold plated contacts prevent corrosion and improve conductivity. Supports wire sizes from 24 AWG to 20 AWG for flexible wiring options. Crimp termination for reliable and quick wiring connections.

Operates effectively between -40°C and 105°C. Compact 16.51 mm length design for integration in drawer connectors. Rated for a current of up to 5 Amperes. Designed specifically for use with Elcon Drawer connector housings.

This product is essential for users requiring reliable and efficient female Crimp Terminals in electronic assembly, industrial connectors, and power distribution systems. Browse EnvMart's wide range of power connectors and electronic components to complement your projects.
