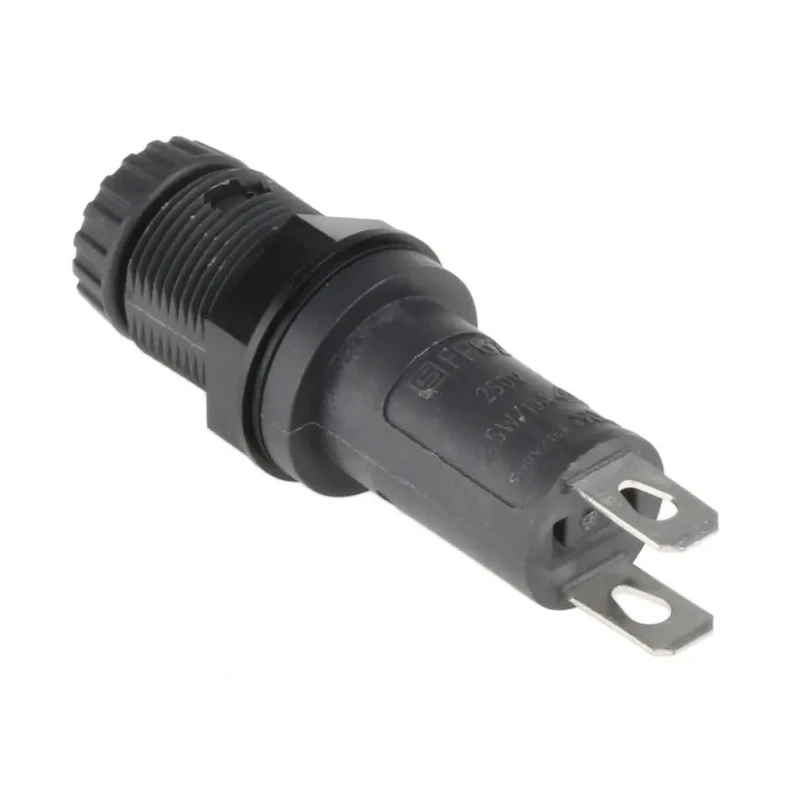

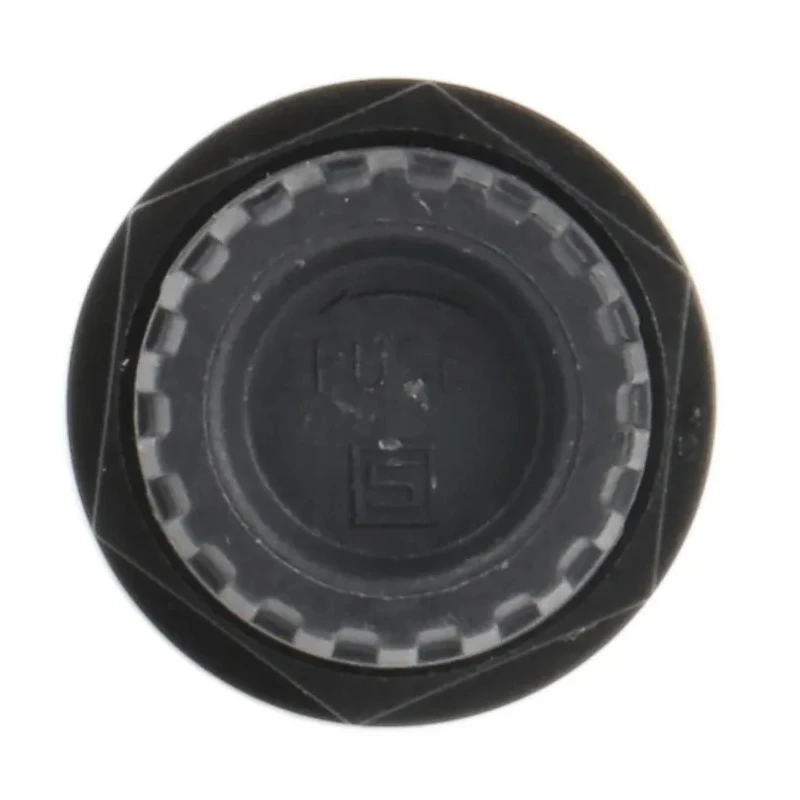

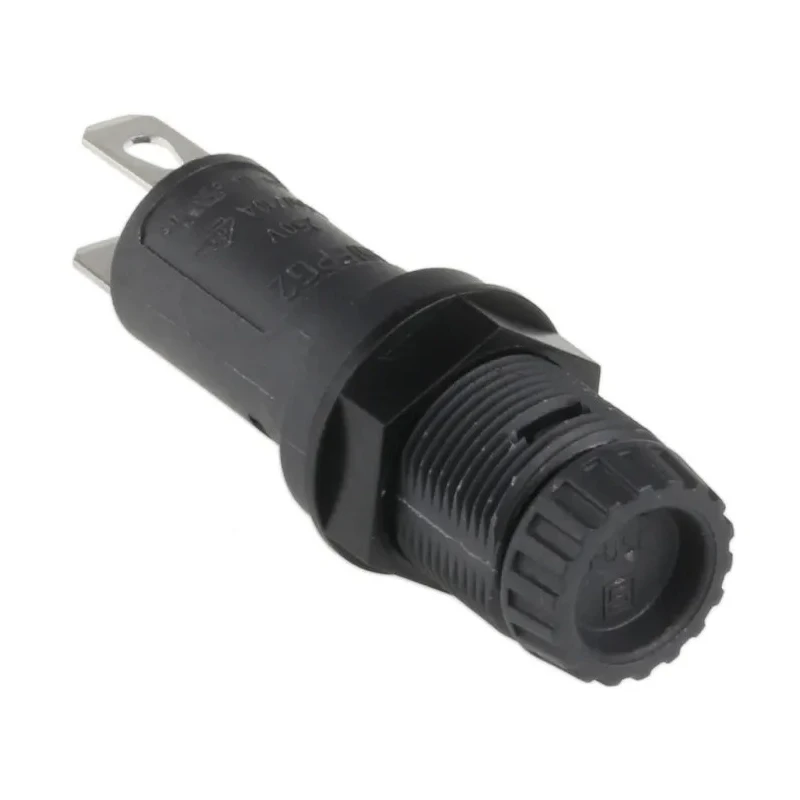

Schurter 16A Panel Mount Fuse Holder 1P-Pole for 5 x 20 mm Fuses 250V AC 3101.0125

Free Delivery in India | Lowest Global Shipping Charges

Schurter 16A Panel Mount Fuse Holder 1P-Pole for 5 x 20 mm Fuses 250V AC 3101.0125

Name: Schurter 16A Panel Mount Fuse Holder 1P-Pole for 5 x 20 mm Fuses 250V AC 3101.0125
Brand: Schurter
SKU: 150698
Price: 4.17 USD
Availability: InStock



Category Fuse Holder Brand Schurter Condition New

Specifications

Country of Origin	India
Brand	Schurter
Body Material	Thermoplastic
IP Rating	IP67
Contact Material	Tin Plated Copper
Series	FPG2
Terminals	4.8x0.5mm for quick connector or soldering - depending on model
Terminal type	Solder
Protection Category	PC2
Number of Poles	1
Standards/Approvals	UL, RoHS, IEC, VDE, CSA, CE
Compatible Fuse Size	5 x 20 mm
Cap Style	Manual

Key Features

Constructed with thermoplastic body material for durability and insulation.
Equipped with tin plated copper alloy contacts for low insertion resistance.
Features manual cap style and solder terminal type for reliable connections.
IP67 rated, providing sealing from the rear for enhanced protection.
Meets multiple international standards including UL, IEC, VDE, CSA, RoHS, and CE.
Compact design suitable for panel mount installation.
Protection category PC2 ensures live parts are inaccessible during fuse operation.
Compatible with 5 x 20 mm fuse size only.

Product Description

Schurter 3101.0125 panel mount fuse holder is a robust and reliable component designed for use with 5 x 20 mm fuses, providing a current rating of 16A and a voltage rating of 250V AC. It features a single-pole (1P) design suitable for panel mounting applications in industrial and electrical systems.

The fuse holder body is made from high-quality thermoplastic material, ensuring excellent electrical insulation and mechanical strength. The contacts are tin plated copper alloys, offering low insertion resistance and stable electrical performance. The device includes a manual cap style and solder terminal type for secure electrical connections.

Rated to IP67, the fuse holder is sealed from the rear, protecting against dust and water ingress, and ensuring reliable operation in demanding environments. The protection category PC2 guarantees that live parts remain inaccessible, enhancing safety during fuse replacement or inspection.

This fuse holder complies with significant international standards and certifications, including UL 4248-1, IEC 60127-6, VDE, CSA, RoHS, and CE directives, confirming its safety and quality for a wide range of applications.

Typical use cases include household appliances, industrial electronic devices, and medical equipment, where secure and reliable fuse protection is essential. Thermoplastic body enhances insulation and durability. Tin plated copper contact material reduces resistance and enhances conductivity.

Manual cap style allows easy fuse insertion and removal. Solder terminal offers firm and lasting electrical connections. IP67 rating ensures protection against dust and water ingress. Sealed from the rear to prevent contamination.

Protection category PC2 fulfills electrical safety standards. Broad regulatory compliance with UL, IEC, VDE, CSA, RoHS, and CE. Compatible with standard 5 x 20 mm fuse sizes. Compact panel mount design saves installation space.
