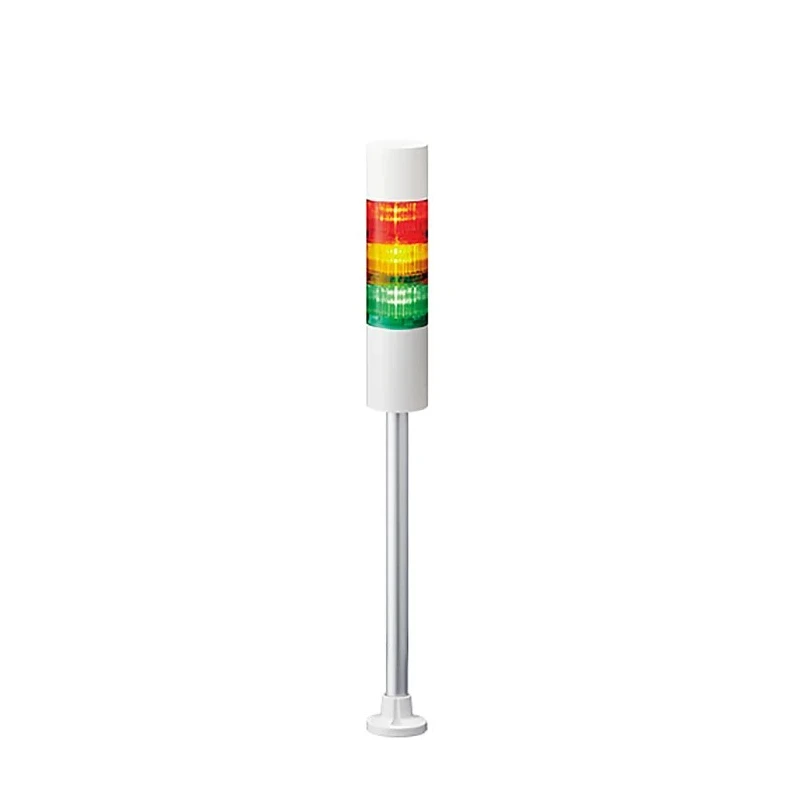

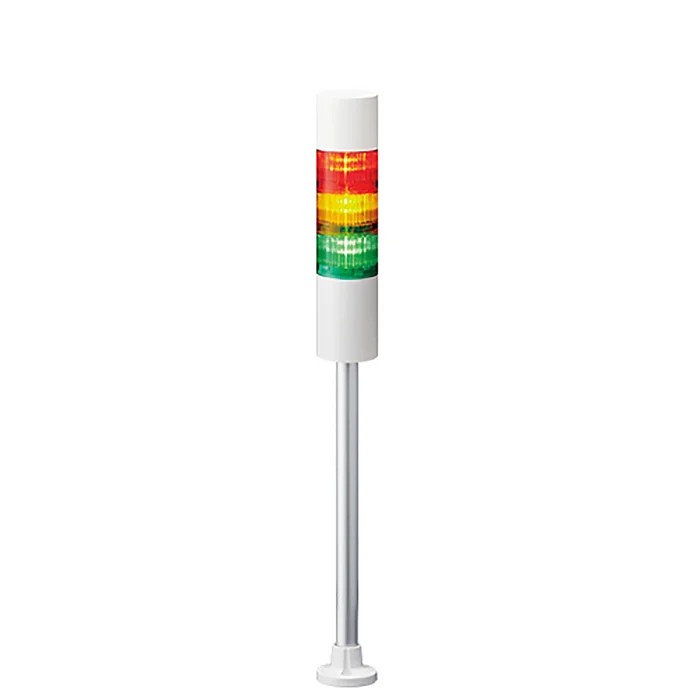

Patlite LR6 Series Signal Tower Buzzer 3 Lights LED 24V DC Pole Mount LR6-302PJBW-RYG

Patlite LR6-302PJBW-RYG Signal Tower Buzzer is a high-performance signalling device featuring three LED light elements and a buzzer sounder, designed for use in industrial, manufacturing, automation, and safety environments requiring clear and reliable visual and audible alerts.

This product operates on 24V DC power, consuming 250mA current, and is mounted via a pole mount system. Its modular design uses a "Twist and Lock" system, allowing field customization and reconfiguration of LED and sound modules for diverse signalling needs.

The housing color is off-white, and the unit has a height of 543.5 mm with a base diameter of 60 mm, making it compact yet visible. It features an IP65 rating, ensuring dust and water resistance suitable for harsh and outdoor environments.

The signal tower provides multiple light effects including flashing and steady illumination, complemented by a buzzer sounder delivering minimum sound levels of 85 dB and up to 88 dB, ensuring effective warnings. The buzzer produces an omni-directional sound and is completely enclosed for protection against environmental factors.

It withstands operating temperatures from -20°C to 50°C and comes with a 3-meter connection cable terminating in terminal blocks for secure electrical connections. The product is UL recognized (File No. E215660), complies with FCC Part 15 Subpart B Class A, KC standards, RoHS Directive, UL 508, EMC Directive, and CSA-C22.2 No.14, meeting stringent safety and regulatory requirements.

Manufactured in Indonesia, this Signal Tower is ideal for automation controls, electrical signalling, and safety alert systems across industrial, laboratory, HVAC, and manufacturing sectors.

Features a buzzer sounder with minimum sound level of 85 dB and maximum sound level of 88 dB for clear alerts. Equipped with 3 LED light elements offering flashing and steady light effects for versatile signalling. Designed with a modular “Twist and Lock” system for easy configuration and customization in the field.

Constructed with an off-white housing and an IP65 rating for dust and water resistance. Operates efficiently on 24V DC with a current consumption of 250mA and terminal block connections. Suitable for harsh environments with operating temperatures ranging from -20°C to 50°C.

Includes a 3-meter connection cable for flexible installation options. UL recognized and complies with multiple standards including FCC, KC, RoHS, UL 508, EMC, and CSA. Explore the full range of signalling devices and automation control gear at EnvMart for robust industrial solutions.
