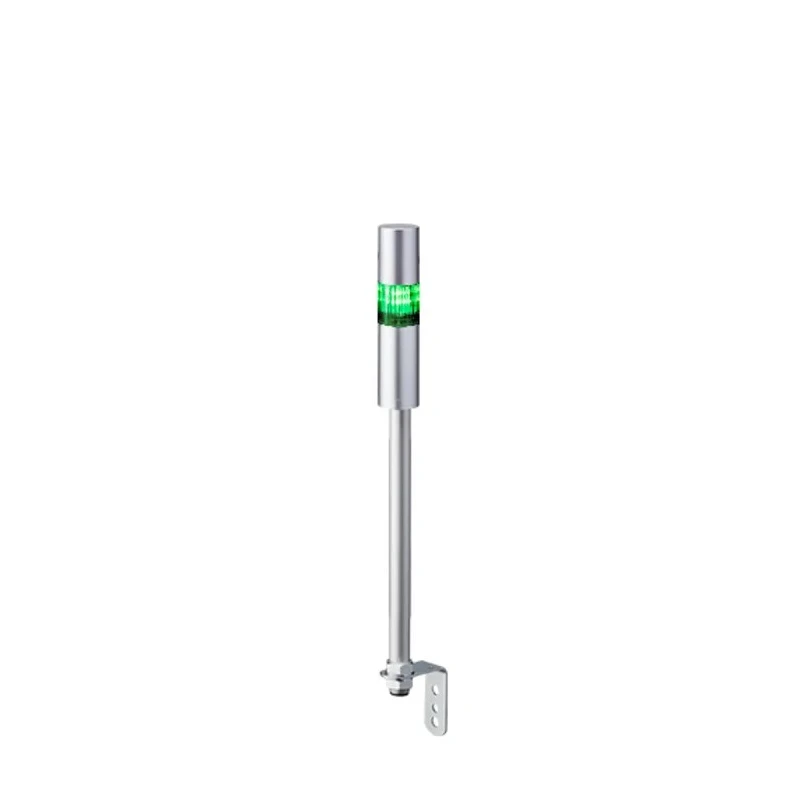

Patlite Signal Tower with Buzzer 24V DC, 1 Light Elements, LR4 Series LR4-102LJBU-G
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Patlite |
| Height | 458.5mm |
| Model | LR4-102LJBU-G |
| IP Rating | IP65, IP54 |
| Mount Type | Pole Mount |
| Bulb Type | LED |
| Series | LR4 |
| Maximum Operating Temperature | 50°C |
| Current Type | DC |
| Current consumption | 0.045, 0.3, 250A |
| Minimum Operating Temperature | -20°C |
| Base Diameter | 40mm |
| Terminal type | Cable |
| Lens Colour | Green, Amber, White, Clear, Blue, Red |
| Standards/Approvals | CSA-C22.2 No. 14, UL Recognised Component (File No.E215660), KC (KN 61000-6-4,KN 61000-6-2), RoHS Directive (EN 50581), UL 508, FCC Part 15 Subpart B Class A, EMC Directive (EN 61000-6-4,EN 61000-6-2) |
| Maximum Supply Voltage | 24V |
| Housing Colour | Silver |
| Light Effect | Flashing, Steady |
| Minimum Sound Level | 85dB |
| Sounder Type | Buzzer |
| Sound Level at 1m | 90dB |
| Maximum Sound Level | 85 |
| Number of Light Elements | 1 |
| Connection Cable Length | 3m |
Key Features
- The unit includes flashing and steady light effects for versatile signalling.
- Mounted on a pole with a linear bracket and cable connection type for easy installation.
- Produces a sound level of 85 to 90 dB with an omnidirectional buzzer sounder.
- Has an IP65 and IP54 rating, ensuring protection against dust and water ingress.
- Operates reliably between temperatures of -20°C to 50°C.
- Designed with a modular twist and lock system for easy customization and maintenance.
- Compatible with DC current type and consumes low current (0.045 to 0.3 A).
- Includes a 3-meter connection cable and a compact base diameter of 40 mm.
Product Description
Patlite LR4-102LJBU-G Signal Tower from the LR4 series is a high-performance single tower light ideal for automation signalling and safety applications. This single LED tower light is equipped with a buzzer and operates on 24V DC, making it suitable for industrial environments requiring clear visual and audible alerts.
The product features diverse lens colors including green, amber, white, clear, blue, and red, allowing for customizable signalling options. The light effect supports both flashing and steady states, while the buzzer provides omnidirectional sound at sound levels ranging from 85 dB (minimum) to 90 dB at 1 meter distance. Its modular twist and lock system offers easy customization and quick replacement of LED and sound modules.
The tower light is designed with a sleek silver housing, measuring 458.5 mm in height with a compact base diameter of 40 mm, facilitating pole mounting with a linear bracket. This ensures stable installation in demanding industrial environments. The connection uses cable type terminals with a 3-meter cable length to enable flexible setup.
With an IP65 and IP54 rating, this unit provides substantial protection against dust, moisture, and harsh environmental conditions. It operates efficiently within a temperature range of -20°C to 50°C, promoting reliability and durability. The buzzer module is fully enclosed to maintain the IP rating while delivering a loud, clear signal.
Standards and approvals compliance include CSA-C22.2 No. 14, UL Recognized Component (File No.E215660), KC (KN 61000-6-4, KN 61000-6-2), RoHS Directive (EN 50581), UL 508, FCC Part 15 Subpart B Class A, and EMC Directive (EN 61000-6-4, EN 61000-6-2). The product is manufactured in Japan, assuring quality and performance.
The unit provides high visibility even from further distances due to enhanced lens design and bright 2000 mcd LED output. Modular "twist and lock" assembly allows easy customization and maintenance of light and sound modules.
Designed for use in industrial, manufacturing, water treatment, and automation signalling applications. Suitable for installations requiring audible and visual signaling with reliability in harsh conditions. Compliant with multiple international safety, environmental, and electrical standards.
Explore more automation control gear and Signal Towers in EnvMart for industrial signalling solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The height of this model is 458.5 mm.
It operates reliably within a temperature range of -20°C to 50°C.
This model operates on 24V DC current.
The buzzer produces a sound level ranging from 85 dB to 90 dB at a distance of 1 meter.
The unit has an IP65 and IP54 rating, providing protection against dust and water ingress.
The compact base diameter is 40 mm.
The housing of this model is silver in color.
It includes a 3-meter connection cable.
Yes, the buzzer module is fully enclosed to maintain the IP rating while delivering sound.
It is designed for use in industrial, manufacturing, water treatment, and automation signaling applications.
