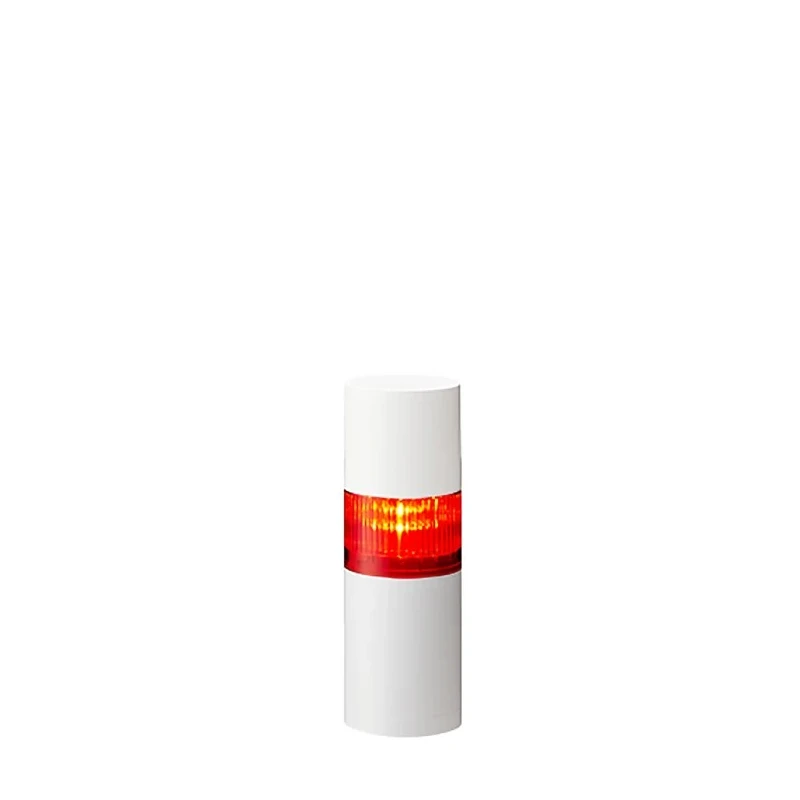

Patlite LR6 Series Red Signal Tower Buzzer, 1 Light, 24V DC, IP65, LED Flashing & Steady Light LR6-102WJBW-R
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Patlite |
| Height | 173.5mm |
| Model | LR6-102WJBW-R |
| IP Rating | IP65 |
| Mount Type | Direct |
| Bulb Type | LED |
| Series | LR6 |
| Maximum Operating Temperature | 50°C |
| Current Type | DC |
| Current consumption | 250mA |
| Minimum Operating Temperature | -20°C |
| Base Diameter | 60mm |
| Terminal type | Cable |
| Lens Colour | Red |
| Standards/Approvals | RoHS (EN 50581), FCC Part 15 Subpart B Class A, EMC (EN 61000-6-4,EN 61000-6-2), UL Recognized Component (File No.E215660), KC (KN 61000-6-4,KN 61000-6-2), UL 508, CSA-C22.2 No. 14 |
| Maximum Supply Voltage | 24V |
| Housing Colour | Off-White |
| Light Effect | Flashing, Steady |
| Minimum Sound Level | 85dB |
| Sounder Type | Buzzer |
| Sound Level at 1m | 90dB |
| Maximum Sound Level | 88 |
| Number of Light Elements | 1 |
| Connection Cable Length | 1.3m |
| Multifunction | Yes, Yes |
Key Features
- Features a modular twist and lock system for easy customization.
- Provides bright red LED lighting with flashing and steady light effects.
- Operates with a buzzer sounder producing up to 90dB at 1 meter.
- Built-in cable connection with a 1.3 meter cable length.
- Includes an off-white housing with IP65 rating for dust and water protection.
- Functionally reliable between -20°C and 50°C operating temperature.
- Designed with a 60mm base diameter and 173.5mm height.
- Complies with multiple standards including RoHS, FCC, EMC, UL, and KC certifications.
Product Description
Patlite LR6-102WJBW-R Signal Tower Buzzer is a robust automation signalling device featuring a single red LED light element and buzzer sounder operated at 24V DC. Designed with an off-white modular body, this product ensures high visibility and distinct audible alert for industrial and commercial applications.
The tower light uses a twist and lock modular construction allowing users to easily customize or reconfigure LED and sound modules as needed. The redesigned lens provides bright even illumination with a luminous intensity of approximately 2000mcd, visible from further distances. The fully enclosed buzzer module produces a loud omni-directional sound up to 90dB at 1 meter, rated for continuous operation in harsh industrial environments.
With a compact form factor of 173.5mm height and 60mm base diameter, it mounts directly via cable connection with a 1.3 meter length. It maintains an IP65 ingress protection rating, providing substantial protection against dust and water ingress. Operating temperature spans from -20°C up to 50°C, supporting various industrial environmental conditions.
This product meets stringent safety and performance standards including RoHS compliance, FCC Part 15 Class A, EMC directives, UL Recognized Component status, as well as KC and CSA certifications. The housing color is off-white for neutral industrial aesthetics and reliability.
Ideal for industrial automation, manufacturing lines, factory safety signalling, HVAC alert systems, and other commercial uses where clear visual and audible indication is critical.
Modular twist and lock system for versatile customization. High-brightness red LED with flashing and steady light modes. Omni-directional buzzer sounder for audible alerts. Durable IP65 rated enclosure suitable for harsh environments.
Wide operating temperature range spanning -20°C to 50°C. Certified for conformity with multiple international safety and EMC standards. Compact dimensions facilitating easy installation and mounting. Designed for DC 24V power supply with low current consumption.
Explore more Signal Tower solutions and automation control gear options at EnvMart for comprehensive industrial signalling needs.
