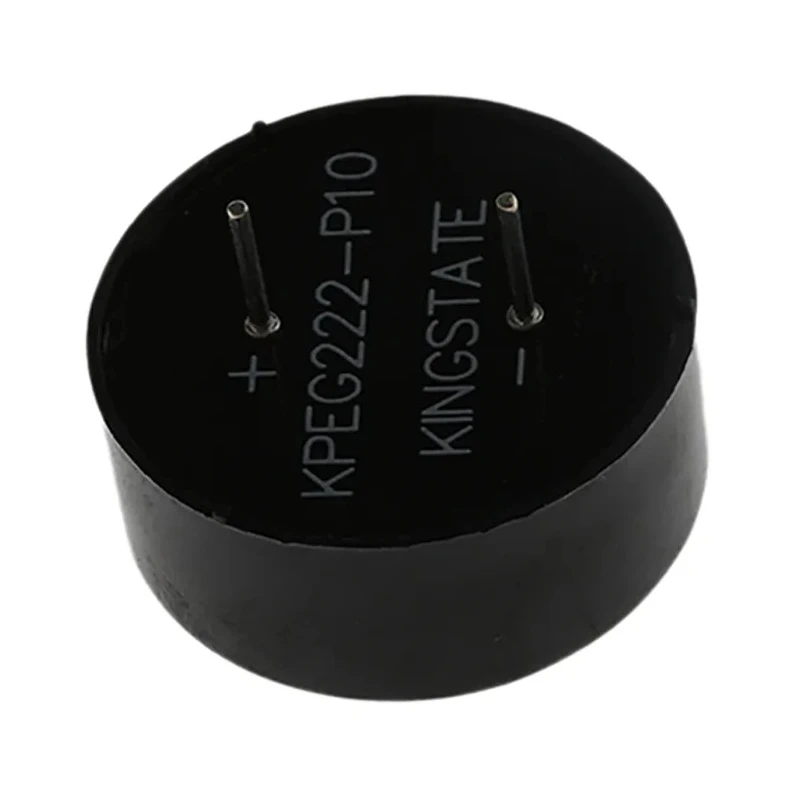

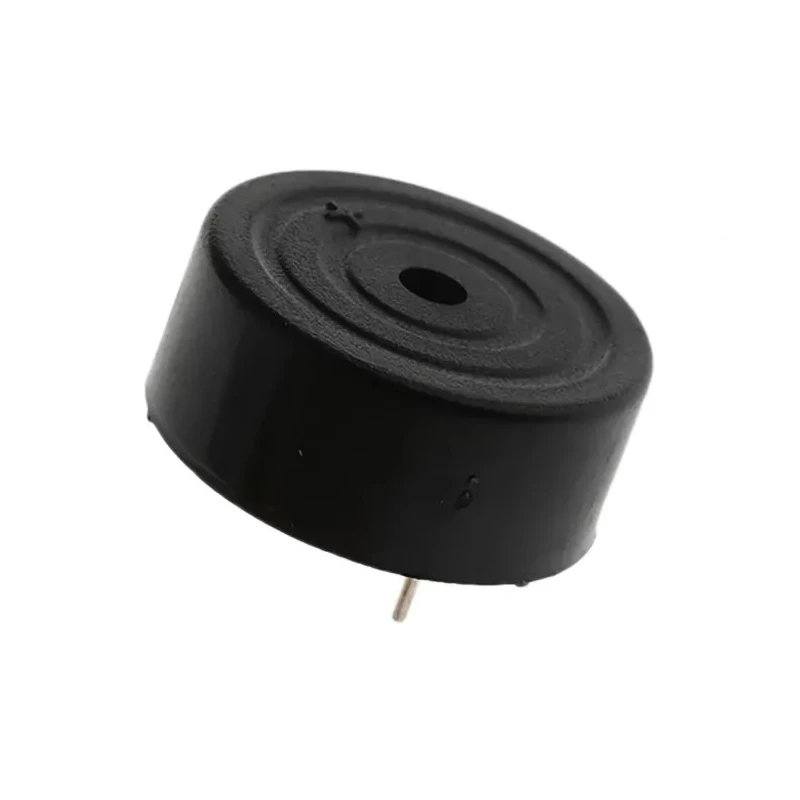

RS PRO 75 dB Through Hole Continuous Internal 6.5 mm Diameter Piezo Buzzer Component 3 V dc Min 20V dc Max 0237956P

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 75 dB Through Hole Continuous Internal 6.5 mm Diameter Piezo Buzzer Component 3 V dc Min 20V dc Max 0237956P

Name: RS PRO 75 dB Through Hole Continuous Internal 6.5 mm Diameter Piezo Buzzer Component 3 V dc Min 20V dc Max 0237956P
Brand: RS PRO
SKU: 149898



Category Piezo Buzzer Component Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Diameter	23.3mm
Brand	RS PRO
Sound Level	75dB
Height	6.5mm
Model	0237956P
Drive Type	Internal
Mount Type	Through Hole
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-30°C
Standards/Approvals	RoHS
Maximum Frequency	3.7kHz
Maximum Supply Voltage	20V dc
Minimum Supply Voltage	3V dc
Supply Current	13mA
Tone Type	Continuous
Minimum Frequency	2700Hz

Key Features

Operates at a minimum supply voltage of 3 V dc and a maximum of 20 V dc.
Produces a continuous tone with an internal drive type.
Compact dimensions with a diameter of 23.3 mm and a height of 6.5 mm.
Suitable for use in a wide temperature range from -30°C to 85°C.
Supply current is 13 mA ensuring efficient operation.
Complies with RoHS standards for environmental safety.
Sound frequency range from 2700 Hz to a maximum of 3.7 kHz.
Designed as a round PCB mount buzzer housed in a circular case.

Product Description

RS PRO 0237956P is a high-performance Piezo Buzzer Component designed for through-hole mounting on printed circuit boards. It produces a continuous internal tone with a sound level of 75 dB, making it ideal for alert, timing, and audible signaling applications in industrial, electronic, and manufacturing environments.

This buzzer operates efficiently across a voltage range from 3 V dc to 20 V dc, with a supply current of 13 mA, ensuring reliable operation with low power consumption. The component features a compact design with a diameter of 23.3 mm and a height of 6.5 mm, suitable for PCB mounting in space-constrained setups.

It is designed to operate within a temperature range of -30°C to 85°C, making it robust for varied industrial and environmental conditions. Compliant with RoHS standards, the product supports environmentally responsible manufacturing and disposal practices.

The buzzer delivers sound frequencies between 2700 Hz and 3.7 kHz, optimizing its signal audibility in noisy industrial and commercial settings. This round piezo buzzer housed in a circular case is perfect for integration into control panels, instrumentation, alarm systems, and other electronic devices requiring a distinct audible signal.

Operates at low to moderate voltage range with continuous internal tone output. Compact design suitable for printed circuit board mounting. Wide operating temperature range supports diverse environment applications. Compliant with RoHS environmental and safety standards.

Optimized frequency range and sound level for clear audible signaling. Applications include industrial warning systems, instrumentation alarms, and electronic devices. Manufactured with high-quality components in Taiwan, Province Of China.

This RS PRO Piezo Buzzer Component offers excellent reliability and performance for electronics manufacturers, assembly lines, and system integrators seeking high-quality, compliant audible signaling components. For more products from RS PRO, browse the Electronics Components and Piezo Buzzer Component categories at EnvMart.
