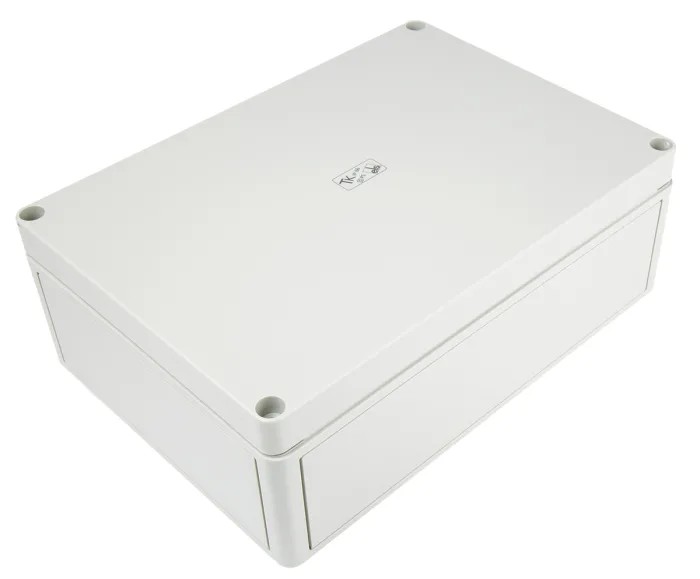

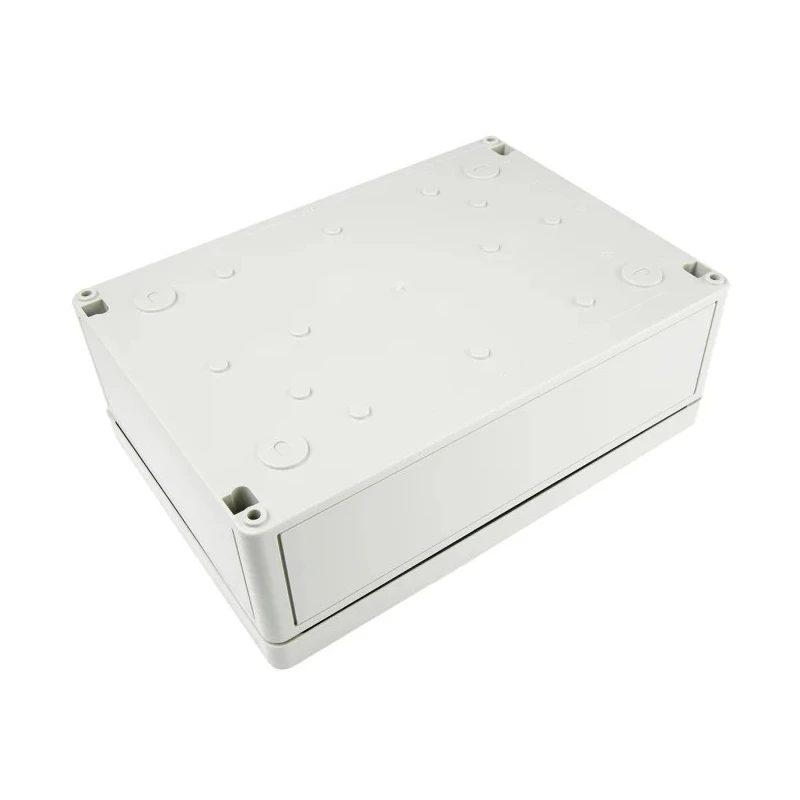

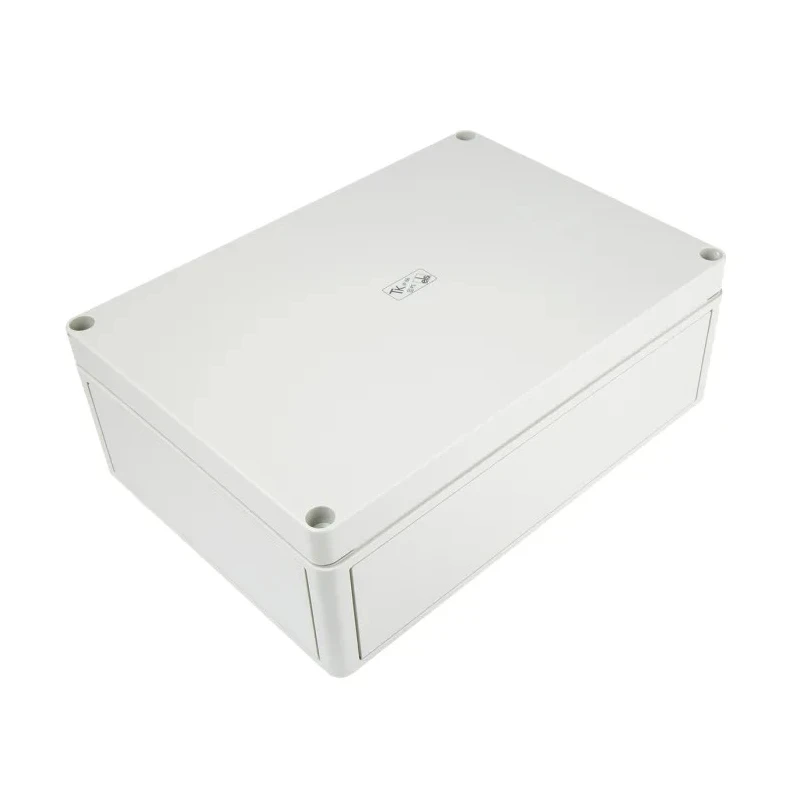

Spelsberg TK PS Series Grey Lid Polystyrene Enclosure IP66 IK07 90 mm x 254 mm x 180 mm 11040801

Spelsberg 11040801 TK PS Series grey lid polystyrene enclosure is designed for housing a wide range of electrical, electronic, and pneumatic equipment offering reliable protection indoors. Measuring 90 mm in height, 254 mm in length, and 180 mm in width, it features a grey (RAL 7035) polystyrene base and cover with no pre-embossed knockouts, providing flexibility for customized installations.

This enclosure provides a robust IP66 ingress protection rating according to EN 60529 / DIN VDE 0470-1, preventing dust ingress and protection against powerful water jets. It also meets IK07 impact resistance standards per DIN EN 5012 / VDE 0470 Part 100, protecting internal equipment from mechanical damage.

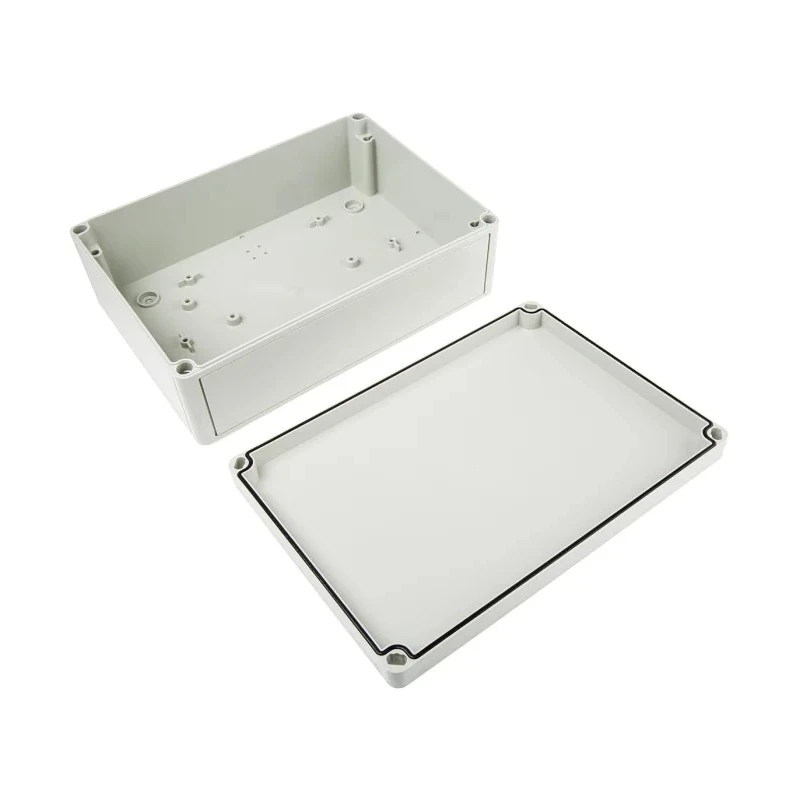

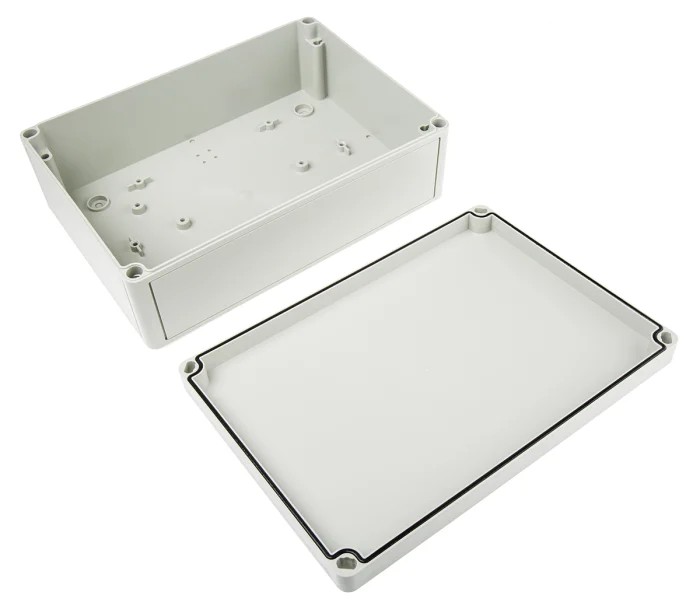

The enclosure's body and lid are made of polystyrene, a material stronger than common plastics, ensuring durability against knocks and offering fair cable retention. The cover screws are polyamide 6 fiber glass reinforced, enhancing the product's mechanical strength, and the system uses an integrated polyurethane cover gasket for a secure seal. The product is free from halogen, silicone, PVC, and heavy metals, making it suitable for safe electrical applications.

Rated insulation voltage is AC 690 V and DC 1000 V, making it compliant with various electrical insulation requirements. It operates within a temperature range of -25 °C to +40 °C, suitable for typical indoor environments. The enclosure can be mounted on walls using through holes below the lid fixing screws, or surface-mounted using knockouts in the base with sealing plugs provided to maintain IP integrity.

This enclosure is best suited for industrial, laboratory, construction, or commercial environments where a secure and sturdy housing solution is required. It is manufactured in Germany, adhering to RoHS standards and certifications, with flammability rating per VDE and UL94 ensuring fire safety compliance.

Constructed with grey (RAL 7035) polystyrene base and lid for corrosion resistance. Features polyurethane sealing and polyamide 6 fibre glass reinforced cover screws for durability. Provides rated insulation voltage AC 690 V and DC 1000 V for electrical safety.

Designed without pre-pressed metric knockouts and no knockouts included. Suitable for indoor use with halogen-free, silicone-free, and PVC-free materials. Complies with RoHS, has flammability rating VDE 0471, UL94, 650 °C / HB.

Supports wall mounting via through holes below lid screws and surface mounting with knockouts on base (sealing plugs included). Operating temperature range from -25 °C to +40 °C. Manufactured in Germany under high quality standards.
