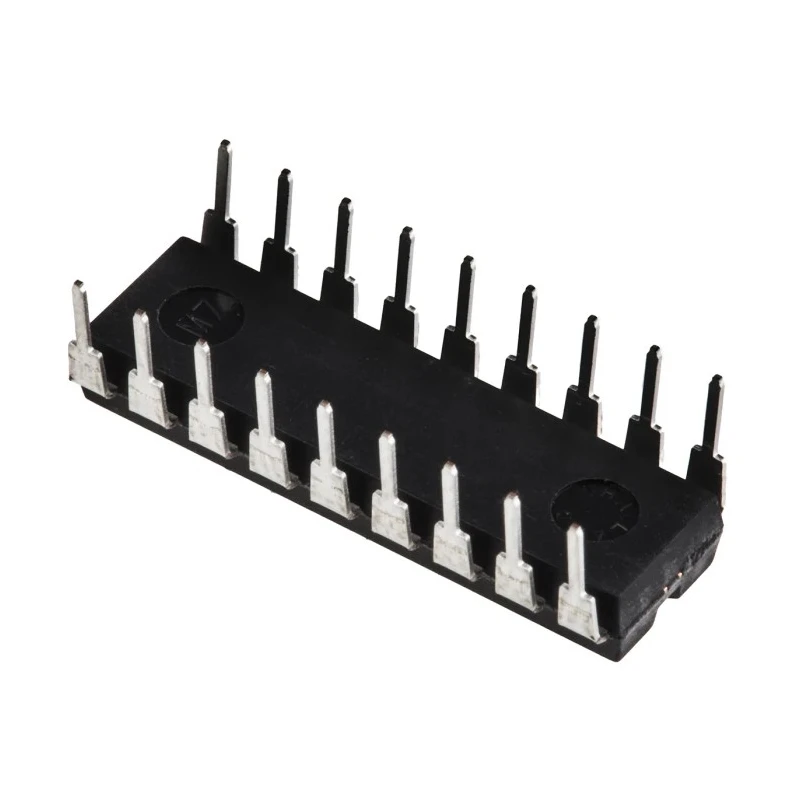

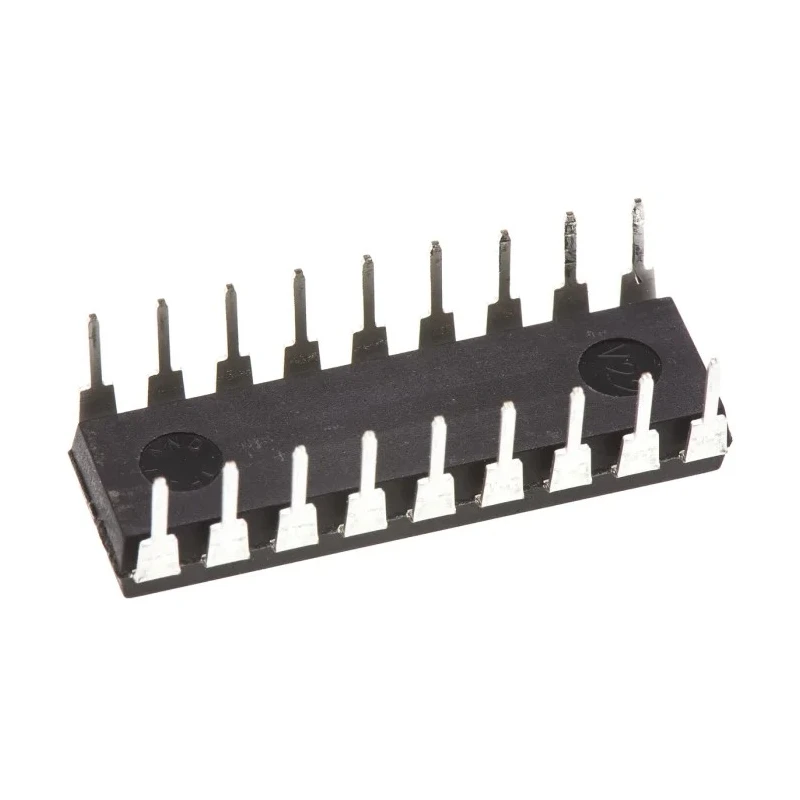

Microchip 8 bit PIC16F Microcontroller 4 MHz 64B FLASH 18-Pin PDIP PIC16F84-04/P

Microchip PIC16F84-04/P is an 8-bit PIC microcontroller from the PIC16F series, operating at a maximum clock speed of 4 MHz with 64 Byte of FLASH program memory. The microcontroller comes in a through-hole PDIP package with 18 pins, designed for embedded applications requiring reliable and efficient control. It features a RISC instruction set with 33 instructions and a 2-level hardware stack providing fast instruction execution with a 200 nanoseconds cycle time.

The device supports 8-bit data bus width and 13 programmable input/output pins, enabling flexible interfacing capabilities. It includes a single timer and supports RS232 communication, making it suitable for serial data transfer protocols. The microcontroller operates over a supply voltage range of 2V to 6V with maximum power dissipation of 800 mW, allowing for use in low-power applications.

Benefits of the PIC16F84-04/P include flash program memory technology that allows easy reprogramming and in-circuit debugging, enabling rapid development cycles and application customization. The device is RoHS compliant and meets environmental standards for semiconductor components.

Typical applications include high-speed automotive systems, appliance motor controls, and low-power transmitter and receiver circuits requiring precise timing and control. Its compact PDIP packaging facilitates easy integration into development boards and custom PCBs.

Employs RISC architecture with 33 instructions and 2 stack levels. 8-bit data bus and 68-bit RAM size for efficient data processing. Maximum clock frequency of 4 MHz ensures responsive processing. Thorough-hole PDIP package with 18 pins for easy mounting.

Wide operating voltage range (2V to 6V) supports diverse power supplies. Single timer and 13 programmable I/O pins provide control flexibility. RS232 interface option for serial communication. RoHS compliant, environmentally friendly component.

Compact physical size (22.86x6.86x3.43 mm) suitable for embedded devices.

This Microchip PIC16F84-04/P microcontroller is an ideal choice for engineers and developers requiring a versatile, low-power, easy-to-program 8-bit microcontroller for automotive, industrial, and consumer electronics applications. Discover a wide range of semiconductor and Microcontroller products at EnvMart for cutting-edge embedded solutions.
