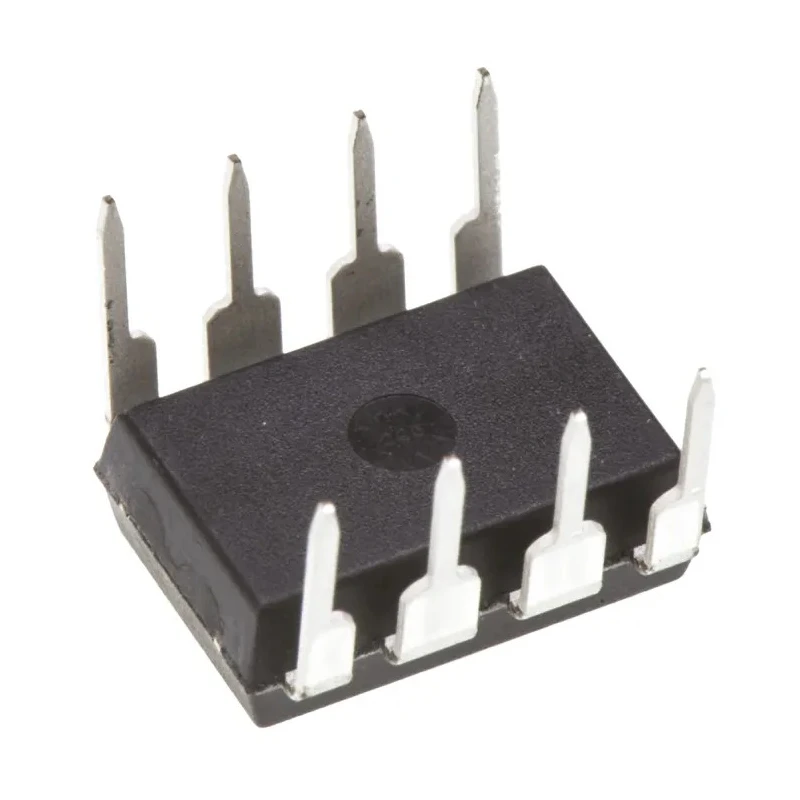

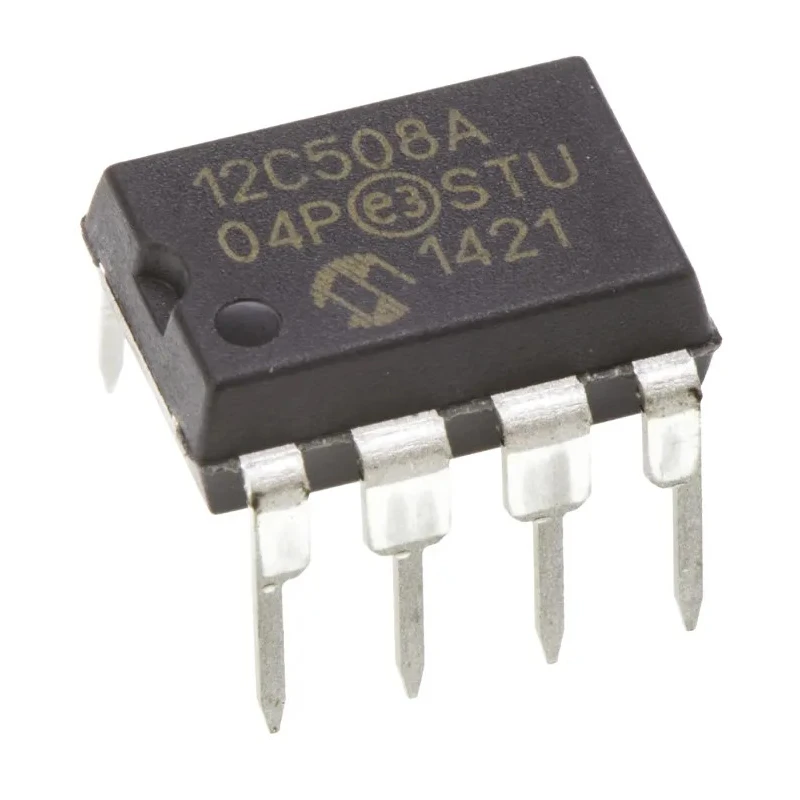

Microchip 8-bit PIC12C Microcontroller 4 MHz, 0.75kB EPROM, 8-Pin PDIP PIC12C508A-04/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.17mm |
| Length | 9.78mm |
| Model | PIC12C508A-04/P |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Series | PIC12C |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Ram size | 25bit |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | ISO 9001 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 700mW |
| Minimum Supply Voltage | 3V |
| Device Core | PIC |
| Program Memory Size | 0.75kB |
| Maximum Clock Frequency | 4MHz |
| Number of Programmable I/Os | 5 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 0 |
| Program Memory Type | EPROM |
Key Features
- Runs at a maximum clock frequency of 4 MHz for efficient processing.
- Equipped with 0.75kB EPROM program memory for code storage.
- Features 5 programmable input/output pins with 25mA source/sink capability.
- Operates between 3V and 5.5V supply voltage with low power consumption.
- Includes one timer and uses RISC instruction set architecture for processing.
- Designed with ISO 9001 automotive standard compliance and RoHS certification.
- Operates reliably within 0 to 70 degrees Celsius temperature range.
- Ideal for embedded applications requiring a small 8-bit microcontroller footprint.
Product Description
Microchip PIC12C508A-04/P is an 8-bit PIC microcontroller offering robust performance in a compact 8-pin PDIP package. Featuring a 4 MHz maximum clock frequency and 0.75kB EPROM program memory, it is optimized for embedded control applications requiring efficient instruction execution and minimal power consumption.
This microcontroller provides 5 programmable I/O pins with 25mA source/sink capabilities, suitable for interfacing with a variety of peripherals in industrial, commercial, and electronic projects. The device operates on a supply voltage range from 3V up to 5.5V, supporting low-voltage system designs.
With one timer and an instruction set architecture based on RISC principles, the PIC12C508A-04/P ensures easy programmability using only 33 single-word instructions. It complies with RoHS standards and ISO 9001 automotive standard, highlighting its quality and environmental compliance.
The device's compact form factor, measuring 9.78 mm in length, 6.6 mm width, and 3.17 mm height, makes it suitable for space-constrained applications. It performs reliably across an operating temperature range of 0°C to 70°C, suitable for a wide variety of electronic environments.
Applications include industrial control systems, consumer electronics, and educational projects requiring a low-cost, low-power microcontroller. The through-hole PDIP package ensures ease of prototyping and soldering in DIY and development setups.
Maximum clock frequency of 4 MHz enabling timely processing. 0.75kB EPROM memory for storing program code. 5 programmable input/output pins with strong drive capability. Wide supply voltage range of 3V to 5.5V for flexibility.
RISC architecture for streamlined instruction execution. Complies with RoHS and ISO 9001 standards for quality and safety.
Select the Microchip PIC12C508A-04/P microcontroller for reliable 8-bit embedded applications. Browse Microchip Microcontrollers and other semiconductor components available at EnvMart for all your electronics design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 4 MHz, allowing for efficient processing of instructions.
It features a program memory size of 0.75kB, which is suitable for storing code in embedded applications.
This microcontroller has 5 programmable I/O pins, each capable of sourcing or sinking 25mA.
It operates within a supply voltage range of 3V to 5.5V, providing flexibility for various applications.
This model is available in a through-hole PDIP package, which facilitates easy prototyping and soldering.
The operating temperature range is from 0°C to 70°C, making it suitable for a variety of electronic environments.
It employs a RISC instruction set architecture, which allows for streamlined instruction execution and programmability.
This microcontroller includes one timer, which can be utilized for various timing applications.
It complies with RoHS standards and the ISO 9001 automotive standard, ensuring quality and environmental compliance.
The dimensions are 3.17 mm in height, 6.6 mm in width, and 9.78 mm in length, making it compact for embedded applications.
The maximum power dissipation for this microcontroller is 700 mW, which is important for thermal management in applications.
The country of origin for this microcontroller is India.
