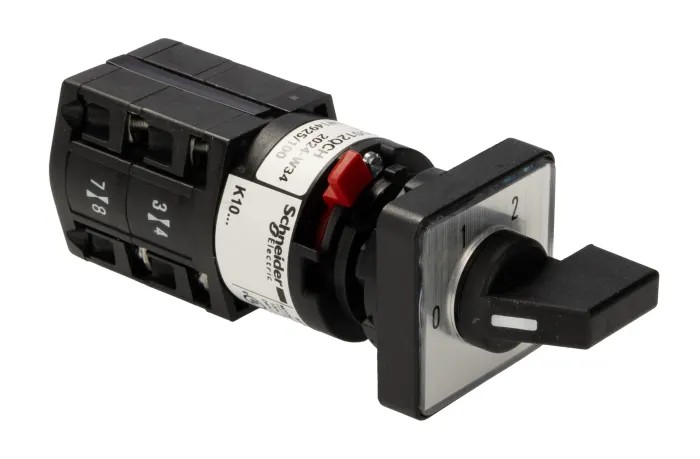

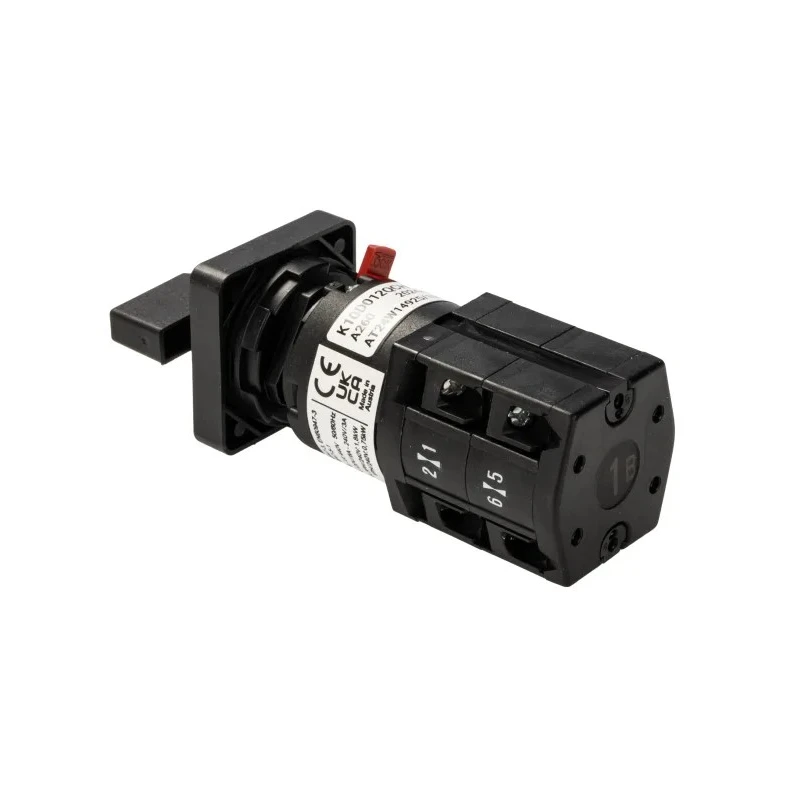

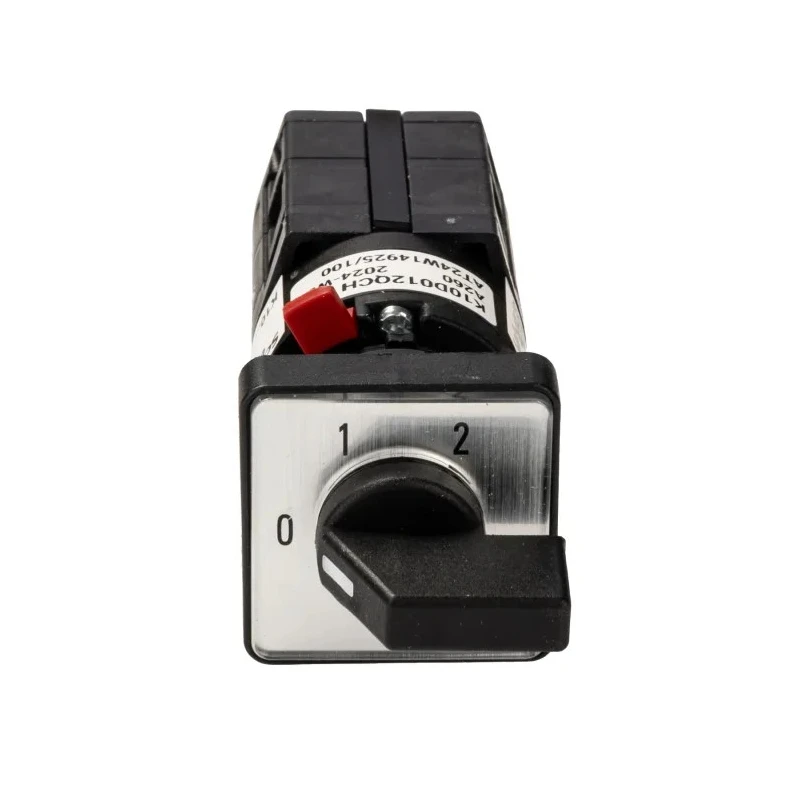

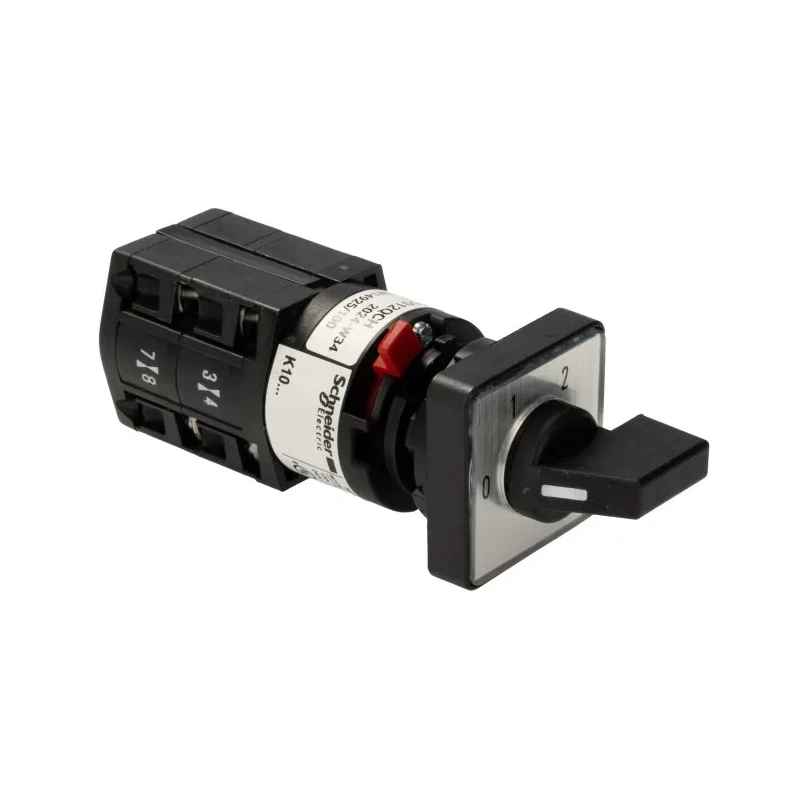

Schneider Electric Rotary Switch Cam Switch 3 Position 60° Handle Actuator 10 A K10D012QCH

Schneider Electric K10D012QCH rotary switch cam switch features a 3-position handle actuator with a 60° angle of throw and a rated contact current of 10 A, suitable for electrical automation and control circuits. It is designed to provide precise multi-position control in electrical panels and machinery control systems.

The device offers a front mounting type with screw clamp terminals that ensure secure and reliable wiring connections. Its IP20 and IP65 rated operating head makes it resistant to dust ingress and moisture, which extends its usability in varied industrial and commercial environments.

With a mechanical life of 1,000,000 cycles, this switch ensures long-lasting performance. Its slow-break contact operation enhances electrical safety by minimizing arcing during switching. The device operates reliably across a temperature range from -20°C to a maximum of 55°C, making it suitable for various operational settings.

This rotary switch adheres to relevant international standards including EN/IEC 60947-3, UL 508, EN/IEC 60947-5-1, and cULus, ensuring compliance and safety. Its compact dimensions (88 mm depth, 30 mm length, and 30 mm width) make it ideal for integration into automation systems and electrical control panels requiring durable and precise switching devices.

Supports 3 distinct positions with 60° angle of throw for precise control. Rated for a maximum contact current of 10 A and contact voltage of 440 V. Front mount design with screw clamp terminals for simple installation and secure wiring.

IP20 and IP65 rated operating head provides dust and moisture protection. Mechanical life rated at 1,000,000 cycles ensuring durability and reliability. Operating temperature range from -20°C up to 55°C for varied environments.

Slow-break contact operation reduces electrical arcing enhancing safety. Compliant with EN/IEC 60947-3, UL 508, EN/IEC 60947-5-1, and cULus standards.

This switch is ideally used in industrial, laboratory, manufacturing, automation, and electrical panel applications where multi-position control and operational safety are critical. It is suitable for professionals seeking reliable Cam Switch solutions with proven compliance and robust design.
