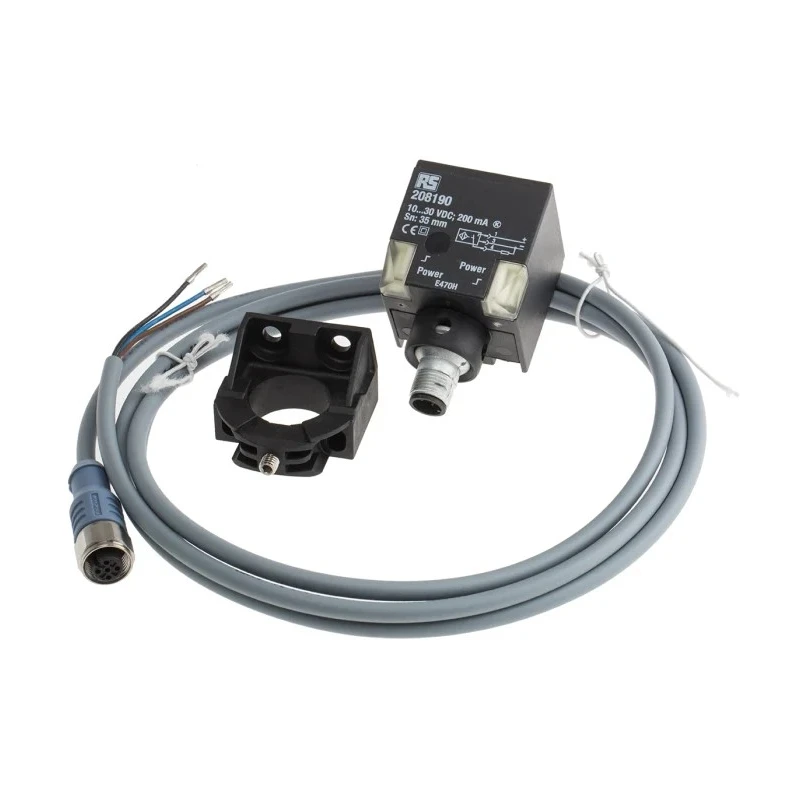

RS PRO Block Inductive Proximity Sensor PNP 30 V dc 200mA 35 mm Detection Range 208-190

RS PRO 208-190 block Inductive Proximity Sensor combines technological precision and durable design for demanding automation, manufacturing, and industrial control systems. Its plastic housing and sensing face provide high impact and thermal resistance, making it suitable for operational environments where ruggedness is essential. The sensor offers a 35 mm maximum detection range and operates on 30 V dc with a 200mA switching current, delivering reliable sensing performance for metal detection tasks.

The IP68 rating of this sensor ensures excellent protection against dust and water ingress, enabling use in challenging conditions. With a compact form factor measuring 65 mm in length, 40 mm width, and depth of 40 mm, it supports non-flush mounting arrangements and connects via an M12 connector with a 4-pin terminal type.

Designed for fast and efficient switching, it supports a high switching frequency of 250 Hz while being unshielded for consistent sensing of all metal types at the maximum range. The device functions reliably across a temperature range from -30°C up to 85°C, offering versatility in various industrial and automation contexts.

This proximity sensor features an integral yellow LED output status display which communicates sensor operation status and alerts to short circuit conditions via flashing light. The package includes a mounting bracket and a 2-meter PUR cable with a straight connector, enabling straightforward installation and integration into control systems.

Ideal for applications in factory automation, robotics, conveyor systems, and other control gear environments where non-contact metal detection is required. This sensor is manufactured in Germany, reflecting high-quality engineering standards.

Block style sensor with plastic housing and sensing face designed for durability. Offers an IP68 rating ensuring water and dust resistance in harsh environments. Operates at a maximum supply voltage of 30 V dc with a switching current of 200mA.

Compact size with dimensions 65 mm length, 40 mm width, and 40 mm depth for easy mounting. Non-flush mount type with M12 connector termination and 4-pin terminal interface. High switching frequency of 250 Hz suitable for fast detection tasks.

Unshielded design senses all metals equally at maximum 35 mm range. Operational temperature range from -30°C to 85°C for versatile industrial use. Equipped with yellow LED output status display indicating device function and fault states.

Includes mounting bracket and 2 m PUR single-ended straight connector cable for installation convenience. Explore more RS PRO sensors and automation products at EnvMart to optimize industrial system performance and reliability.
