ITW Switches 49-59 Series Panel Mount Momentary Push Button Switch, Red Actuator, 16 mm Cutout, SPDT, Clear LED 49-59122

ITW Switches 49-59122 is a high-quality panel mount momentary push button switch from the 49-59 series, designed for industrial and commercial electrical applications. Featuring a 16 mm panel cutout, it provides a robust and sealed operation with an IP67 rating, making it highly resistant to dust and water ingress, ideal for harsh and demanding environments.

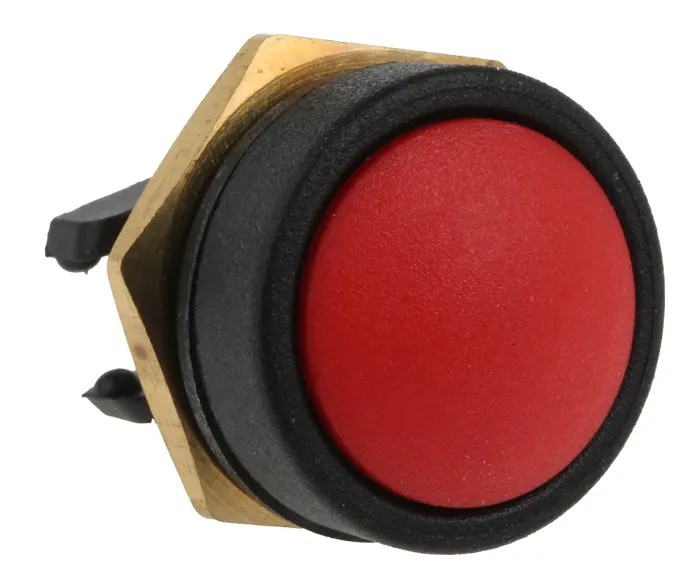

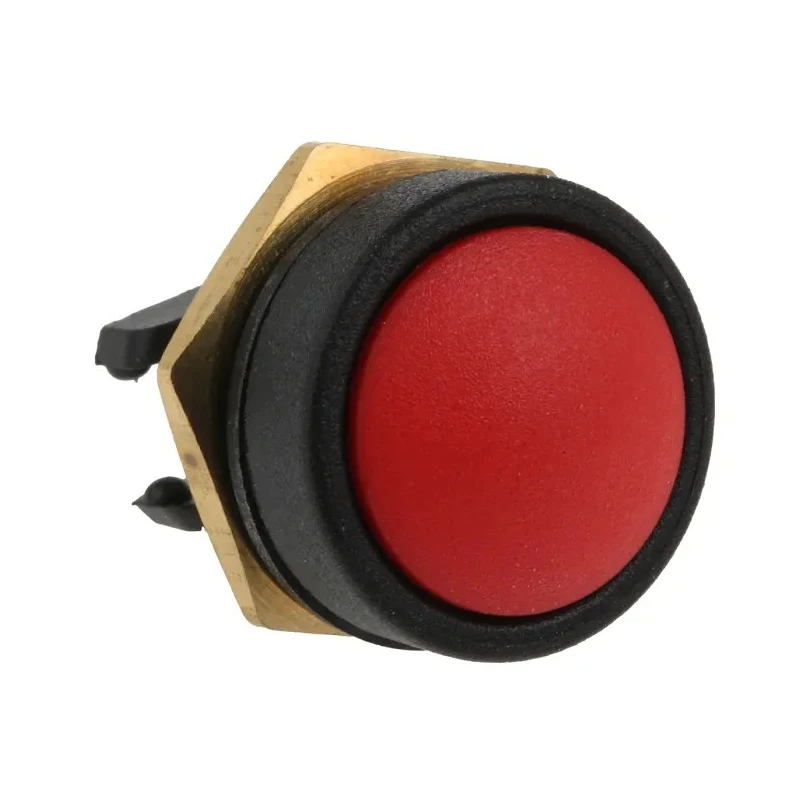

This switch is equipped with a red dome actuator that offers tactile feedback and visual clarity. The momentary switch operation ensures that the electrical circuit is only active while the button is pressed, making it suitable for start/stop control functions. The SPDT contact configuration supports applications requiring single-pole double-throw switching options.

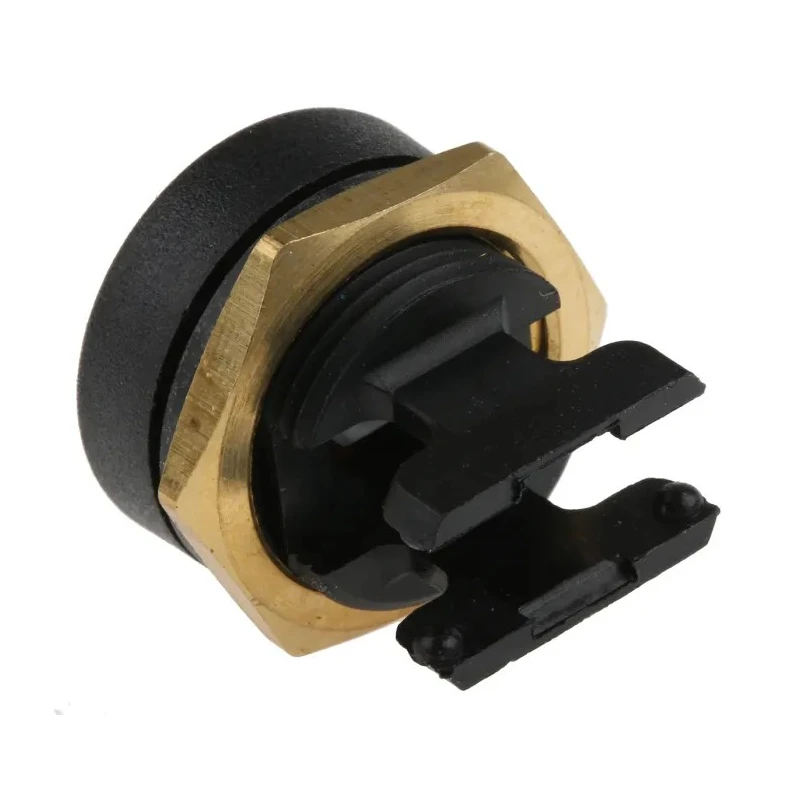

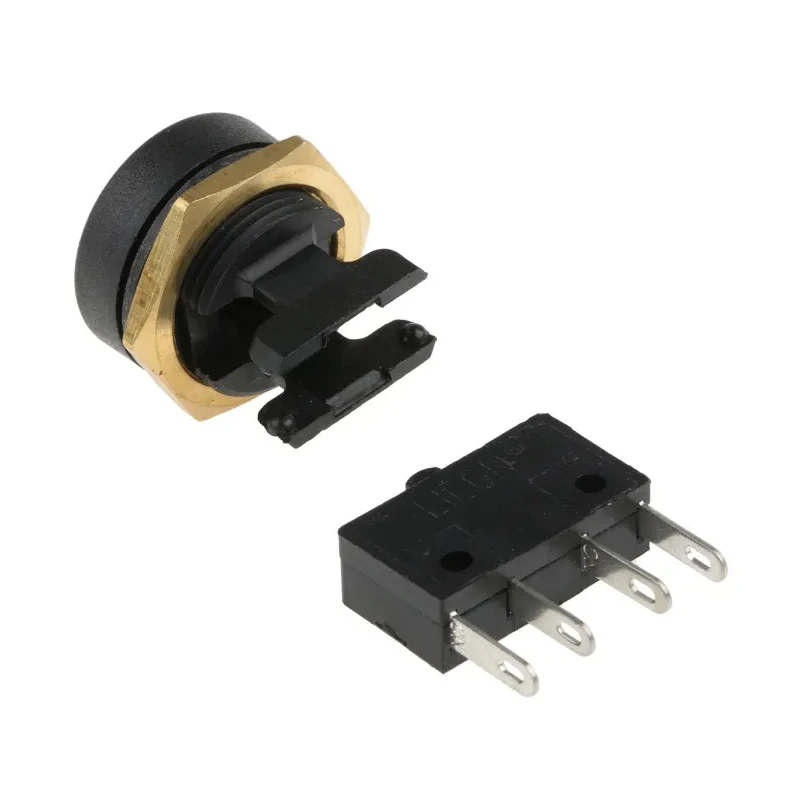

The switch supports both AC and DC voltages up to 250 V, with a maximum current rating of 10 amperes, making it compatible with various electrical control and signaling tasks. It has rear-mounted microswitches that snap into place easily through the panel, with a panel thickness limit of 1.5 mm.

Constructed with UL94V-0 rated materials, both the body and the actuator ensure flame retardance and enhanced safety. The operating temperature range from -35°C to 85°C allows for reliable performance across diverse industrial and outdoor settings.

These pushbuttons meet CSA and UL certifications, providing assurance of quality and compliance with international safety standards. Their sealed design and clear LED illumination options make them suitable for control panels, machinery, HVAC systems, automation equipment, and other industrial applications.

The switch features a red dome-style actuator for clear visual identification. Momentary switch operation ensures circuit activation only while pressed. Panel sealed to IP67 for protection against dust and water ingress, suitable for harsh environments.

Rated for 250 V AC voltage and a 10 ampere switch contact current. Equipped with a clear LED option for illuminated status indication. Designed for panel mounting with a maximum panel thickness of 1.5 mm. Body and button are UL94V-0 rated, ensuring flame retardancy.

Operating temperature ranges from -35°C to 85°C for versatile environmental use. Contact configuration includes Form Z contacts (1 normally open + 1 normally closed). Complies with CSA and UL standards for safety and reliability.

This Push Button Switch is ideal for electrical control, automation, and panel mounting in industrial, manufacturing, HVAC, and commercial product environments. Find more options within the ITW Switches 49-59 series on EnvMart for your application requirements.
