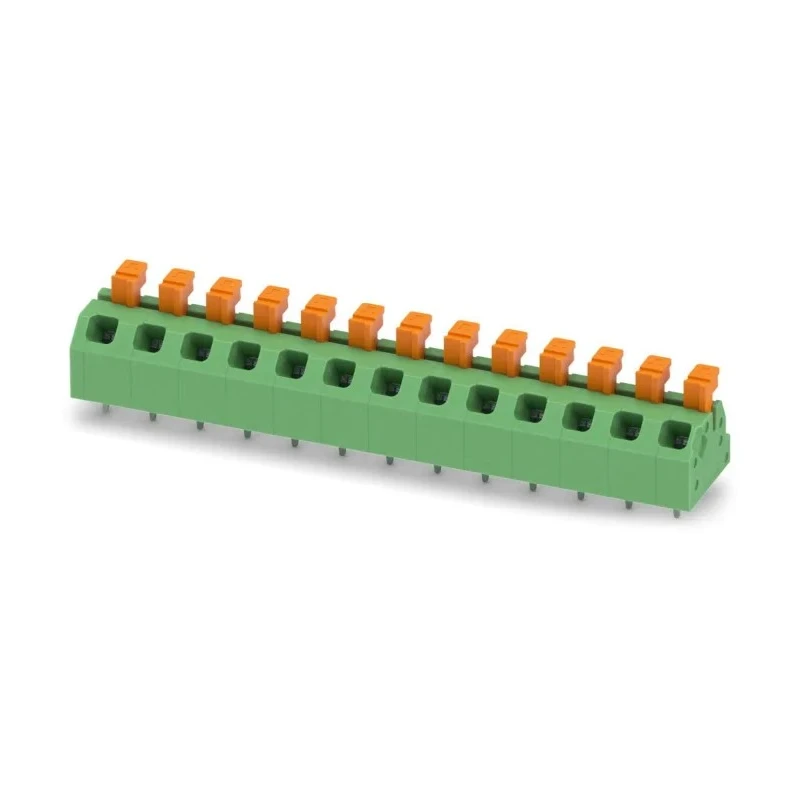

Phoenix Contact PCB Terminal Block SPTAF 1/13-5.0-LL Series Angled 13 Contacts, 5 mm Pitch, 320V, 13.5A 1864545

Phoenix Contact 1864545 PCB Terminal Block SPTAF 1/13-5.0-LL Series is an angled PCB terminal block designed for electronic component applications requiring reliable and compact connection solutions. Rated at 13.5A nominal current and 320V nominal voltage, this terminal block features a pitch of 5 mm and includes 13 contact positions arranged in a single row. The polyamide housing material ensures durability and electrical insulation under demanding conditions.

The push-in spring connection enables time-saving and secure wiring without the need for tools, reducing assembly time and enhancing safety. Its angled conductor/PCB connection at a 45° angle optimizes space within electronic assemblies, allowing for efficient layout designs. The terminal block is suitable for wave soldering mounting methods, facilitating automated PCB assembly processes.

To improve ease of use, it incorporates a finger-operated and fixable release button that permits swift disconnection and maintenance operations. The defined contact force ensures long-term stable electrical contact, minimizing failures due to vibration or loosening contacts. Additionally, the device includes a convenient integrated test option, enabling quick verification of circuit integrity during installation or maintenance.

This product complies with essential industry standards, including cULus Recognised, UL Recognised, and adheres to the EU RoHS directives, ensuring both safety and environmental adherence across industrial, manufacturing, and electronic assembly applications.

Ideal for use in industrial equipment, control systems, automation electronics, and other electrically demanding environments, this PCB terminal block supports efficient and safe electrical connections in constrained spaces.

Constructed with durable polyamide housing for long-lasting performance. Features push-in spring connection for quick and tool-free wiring. Designed with a single row and 13 contact points for compact PCB mounting. Angled conductor/PCB connection at a 45° orientation for space saving.

Supports wave soldering mounting method for reliable fixation. Includes integrated finger-operated release button for convenient operation. Offers stable contact force ensuring consistent electrical connection over time.

Equipped with an integrated test option for easy and quick circuit testing. Complies with cULus, UL Recognised and EU RoHS standards for safety and environmental compliance. Browse the wide range of Phoenix Contact products and PCB Terminal Blocks at EnvMart’s Electronics Components category to suit various technical requirements.
