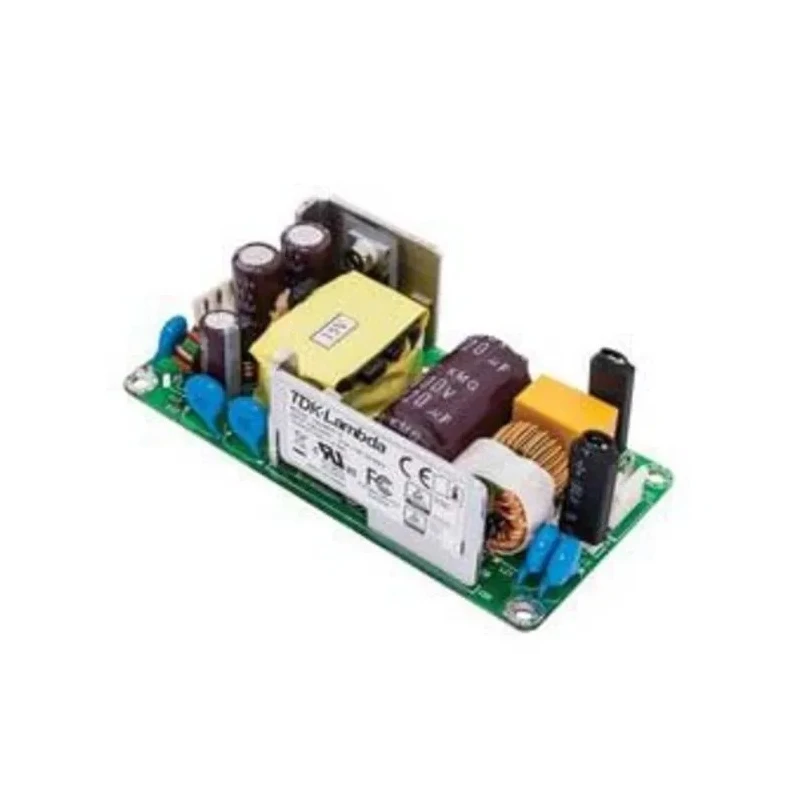

TDK-Lambda CSS65A-24 Switching Power Supply 24V DC 65W 90% Efficiency Chassis Mount CSS65 Series

Free Delivery in India | Lowest Global Shipping Charges

TDK-Lambda CSS65A-24 Switching Power Supply 24V DC 65W 90% Efficiency Chassis Mount CSS65 Series

Name: TDK-Lambda CSS65A-24 Switching Power Supply 24V DC 65W 90% Efficiency Chassis Mount CSS65 Series
Brand: TDK-Lambda
SKU: 147585



Category Switching Power Supplies Brand TDK-Lambda Condition New

Specifications

Country of Origin	Taiwan
Brand	TDK-Lambda
Power	65W
Efficiency	90%
Length	101.6mm
Model	CSS65A-24
Depth	27.5mm
Gross Weight	136g
Width	50.8mm
Mount Type	Chassis
Series	CSS65
Maximum Operating Temperature	70°C
Minimum Operating Temperature	0°C
Number of outputs	1
Maximum Input Voltage	264V ac
Maximum Output Voltage	24V dc
SMPS Output Current	2.71A
Minimum Input Voltage	90V ac

Key Features

Provides a single output of 24V DC at 2.71A continuous current.
Compact chassis mount design measuring 101.6mm x 50.8mm x 27.5mm.
Operates efficiently with up to 90% efficiency rating.
Wide operating temperature range from 0°C to 70°C for reliable performance.
Meets multiple international standards and approvals including FCC-B, CE, and IEC/UL/CSA certifications.
Designed for input voltage range from 90V AC to 264V AC.
Lightweight construction with a gross weight of 136g.
Incorporates remote sense for compensating output cable voltage drops.

Product Description

TDK-Lambda CSS65A-24 switching power supply provides a robust and reliable 24V DC output with a power rating of 65 watts. This chassis-mount power supply is part of the CSS65 series known for medically certified AC-DC converters, designed to meet demanding industrial, laboratory, and manufacturing power needs. It supports a wide input voltage range from 90V AC to 264V AC, delivering a stable output current of 2.71 amps with high efficiency of 90%.

The compact dimensions of 101.6mm length, 50.8mm width, and 27.5mm depth make it suitable for integration into various control panels and enclosures. Operating within a temperature range from 0°C to 70°C, it ensures consistent operation under varied environmental conditions. Its weight of 136 grams further simplifies mounting and installation.

The power supply complies with stringent international standards including FCC-B, CE, IEC/UL/CSA/EN 62368-1 and several IEC immunity standards, highlighting its reliability and safety for demanding electronic equipment. Features such as remote sense capabilities allow compensation for voltage drops across output cables, ensuring end-device reliability.

This model is ideal for industrial automation, instrumentation, medical devices, HVAC systems, and other applications requiring dependable DC power conversion. The CSS65A-24 combines compact size, efficiency, and certification compliance, making it a trusted choice in power supplies.

Single 24V DC output at 65W power rating. Chassis mounting type for secure installation. Wide 90V AC to 264V AC input voltage compatibility. High efficiency of 90% to minimize energy losses. Operates within 0°C to 70°C environmental temperature.

Meets multiple regulatory and safety standards. Lightweight design weighing 136g. Remote sensing for voltage drop compensation on output lines. Suitable for industrial, laboratory, and commercial environments. Explore the full range of Switching Power Supplies and power solutions at EnvMart for reliable and certified products from trusted brands.
