Broadcom 3.6 V RGB LED PLCC Surface Mount 3 LEDs High Power ASMG-PT00-00001

Free Delivery in India | Lowest Global Shipping Charges

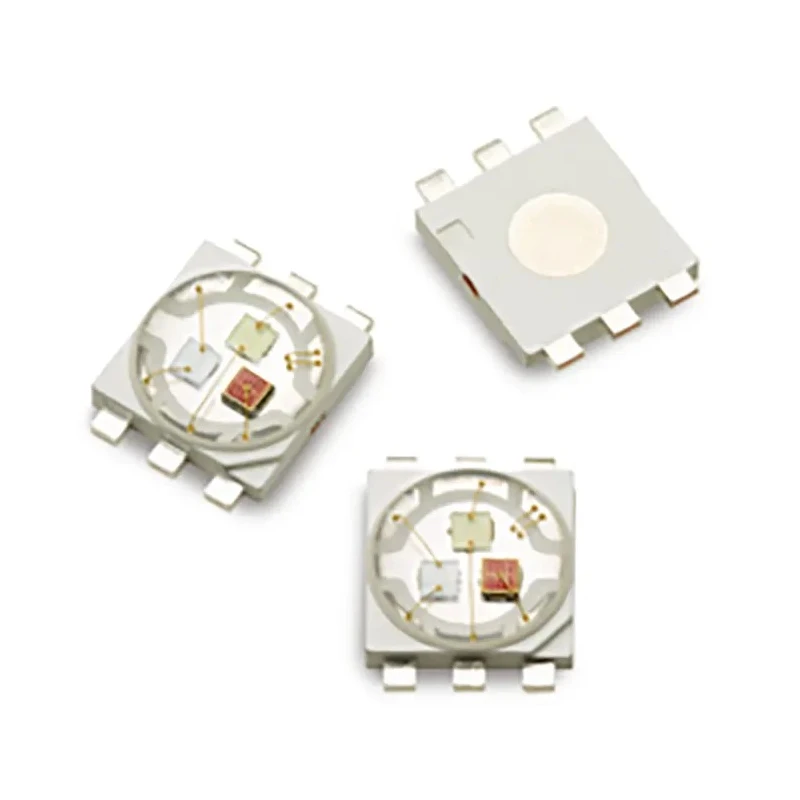

Broadcom 3.6 V RGB LED PLCC Surface Mount 3 LEDs High Power ASMG-PT00-00001

Name: Broadcom 3.6 V RGB LED PLCC Surface Mount 3 LEDs High Power ASMG-PT00-00001
Brand: Broadcom
SKU: 147344
Price: 7.32 USD
Availability: InStock



Category LED - Light Emitting Diodes Brand Broadcom Condition New

Specifications

Country of Origin	Taiwan
Brand	Broadcom
Model	ASMG-PT00-00001
Packaging	Tape & Reel
Mount Type	Surface
Series	ASMG
Number Of Leds	3
Maximum forward current	200mA
Viewing angle	155 °
Package Type	PLCC
Standards/Approvals	RoHS
LED Colour	RGB
Forward Voltage	3.6V
Number of Pins	6
Maximum Power Dissipation	125mW
Lens Dimensions	5 x 4 x 1.85 mm
Lens Shape	Rectangular
LED Luminous Flux	28 (Red) lm, 45 (Green) lm, 9.5 (Blue) lm

Key Features

This RGB LED integrates 3 LEDs to deliver multi-color lighting.
The device supports a maximum forward current of 200 mA.
It has a 155-degree viewing angle for wide light dispersion.
Maximum power dissipation is 125 mW ensuring energy efficiency.
Lens dimensions are compact at 5 x 4 x 1.85 mm with a clear rectangular lens.
It is compliant with RoHS standards for safer electronics.
Sourced from Taiwan, Province Of China, ensuring manufacturing quality.
Designed for surface mounting with a 6-pin configuration.

Product Description

Broadcom ASMG-PT00-00001 is a high-performance 3.6 V RGB LED in a compact PLCC surface mount package, featuring 3 individual LEDs for red, green, and blue color output. Designed for applications demanding high power and reliability, this device supports a maximum forward current of 200 mA and a power dissipation of 125 mW, making it energy efficient for extended use.

The LED has a clear, rectangular lens with dimensions of 5 x 4 x 1.85 mm, providing a wide 155-degree viewing angle suitable for uniform illumination. This RGB LED incorporates dominant wavelengths of 455, 460, 525, 535, 620, and 630 nm across the red, green, and blue channels, delivering rich and vibrant colors.

The package is compatible with reflow soldering processes, facilitating automated assembly in electronics manufacturing. With silicone encapsulation and a low-profile design, it is ideal for compact retail displays, architectural lighting, decorative lighting, sign backlighting, and commercial lighting applications requiring tri-color illumination.

Compliant with RoHS standards, this product is environmentally friendly and ensures long operational life and robust performance under high current operation. The six-pin configuration and surface mount design allow easy integration into circuit boards.

This RGB LED integrates 3 LEDs for multi-color emission. Maximum forward current is 200 mA, supporting high brightness. Wide 155° viewing angle enables even light distribution. Compact lens dimensions with clear rectangular lens design.

RoHS compliant for environmentally safe use. Compatible with reflow soldering for automated assembly. Ideal for retail, architectural, decorative, and commercial lighting. Manufactured in Taiwan, Province Of China. Explore more high-quality LEDs and lighting components at EnvMart for industrial, commercial, and architectural lighting solutions.
